Power Supply Function
TEST-04
This test is a simulation of a load dump situation where voltage transients occur
following a sudden reduction in the load current drawn from a generator, motor-
generator or DC/DC converter and whilst the battery is either out of circuit or
incapable of absorbing power.

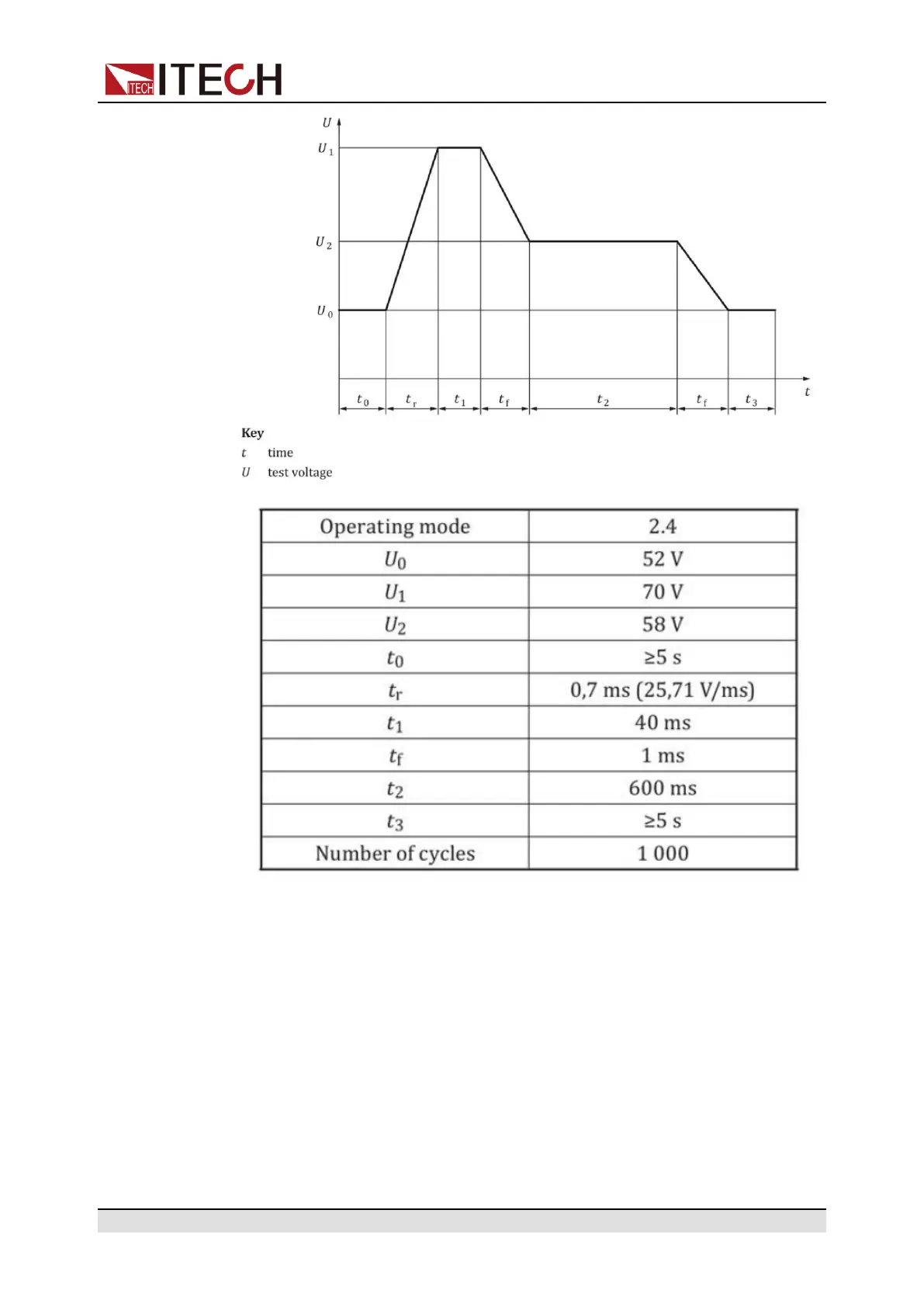

The waveform is as follows:
Copyright © Itech Electronic Co., Ltd.
133
