Power Supply Function

TEST-05

This test is intended to check the immunity of the component to voltage

variations during the cold crank phase.

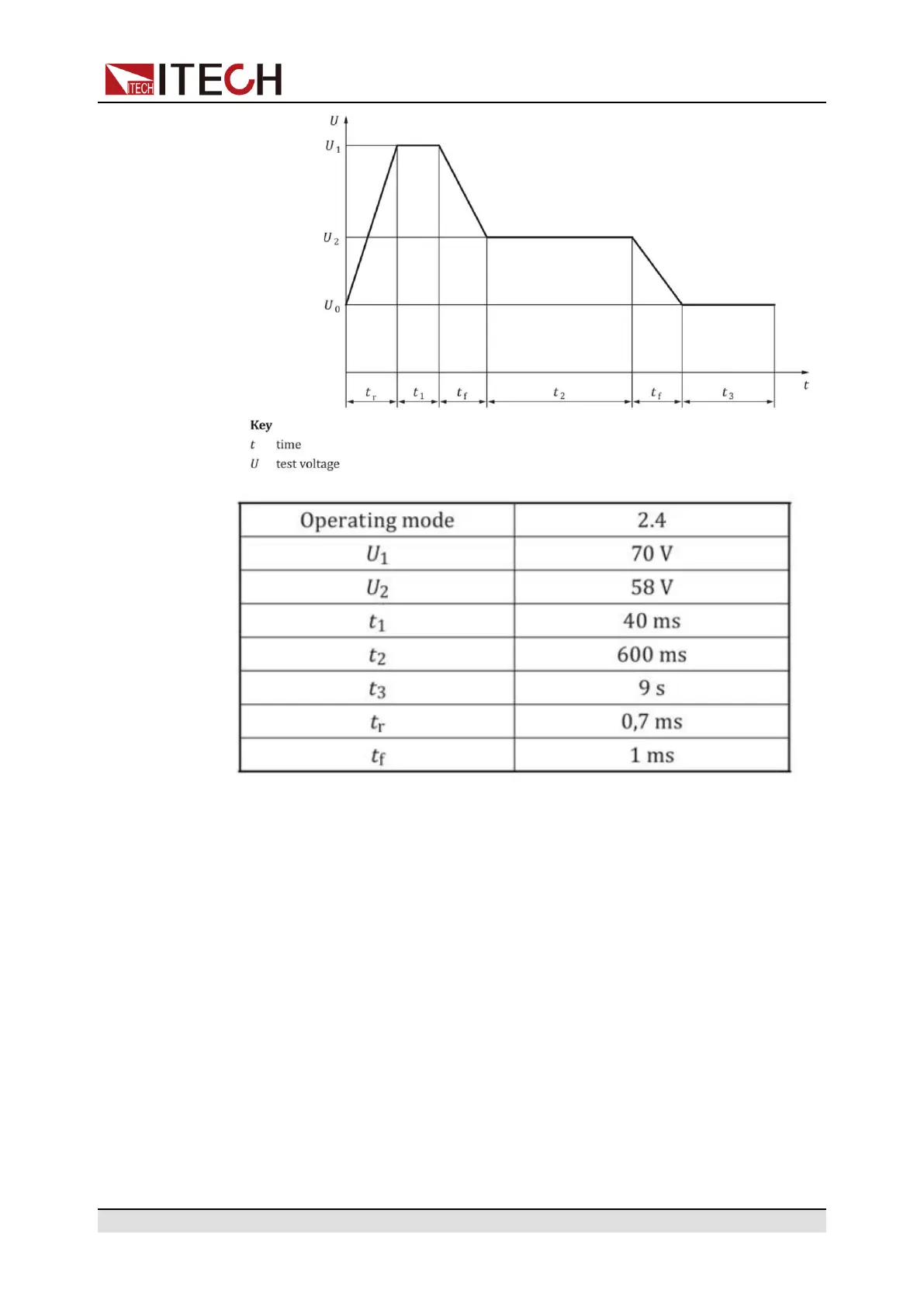

The waveform is as follows:
