Chapter2 Instrument Introduction
2.1 Verifying the Shipment
Open the package and check the articles within package box before operation.
In case of any non-conformity, missing or appearance wearing, please contact
ITECH immediately.
The package box should comprise:
Device name
Quantity
Model
Remarks
Programmable
AC Power
Supply
x1
IT7900
series
For the specific models included in this
series, refer to
1.1 Brief Introduction.
Power Cord
X1
-
Number of the power cords vary
depending on the model, See the
Section 2.3 Connectiong the Power
Cord
for power cord connection.
USB cable
x1
-
-
Factory
alignment
report
x1
-
Test report before delivery
NOTE
After confirming that package contents are consistent and correct, please appropriately
keep package box and related contents. The package requirements should be met when
the instrument is returned to factory for repair.
2.2 Front Panel

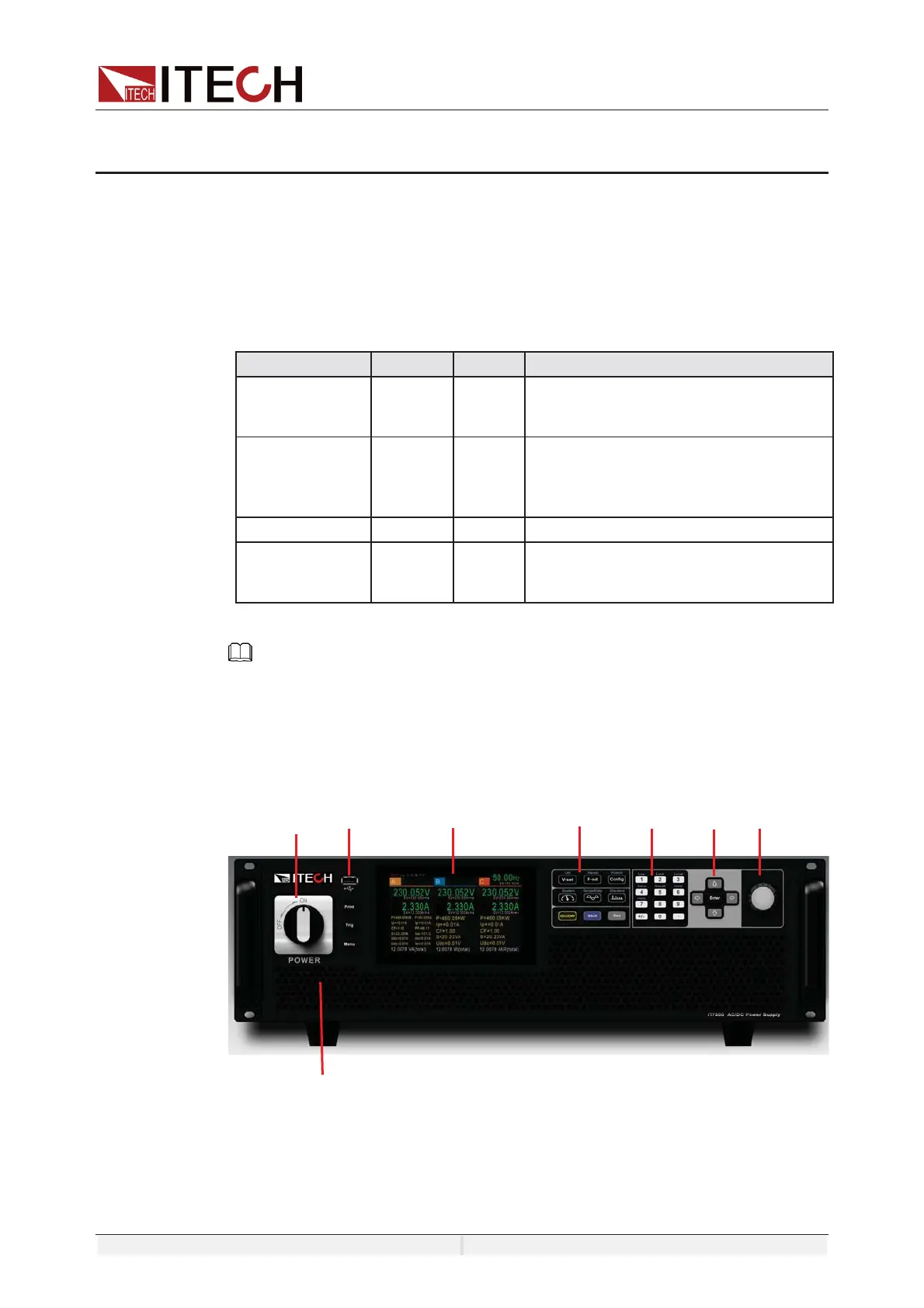

The front panel of IT7900 is as shown below.
1 Power Switch
2 USB interface /Print/Trig/Menu
3 LCD touch screen
4 Function key
5 Number key
6 Up, down, left and right key and enter key
7 Rotary knob
8 Vent hole
1
2
3
4
5
6
7
8
