NOTE

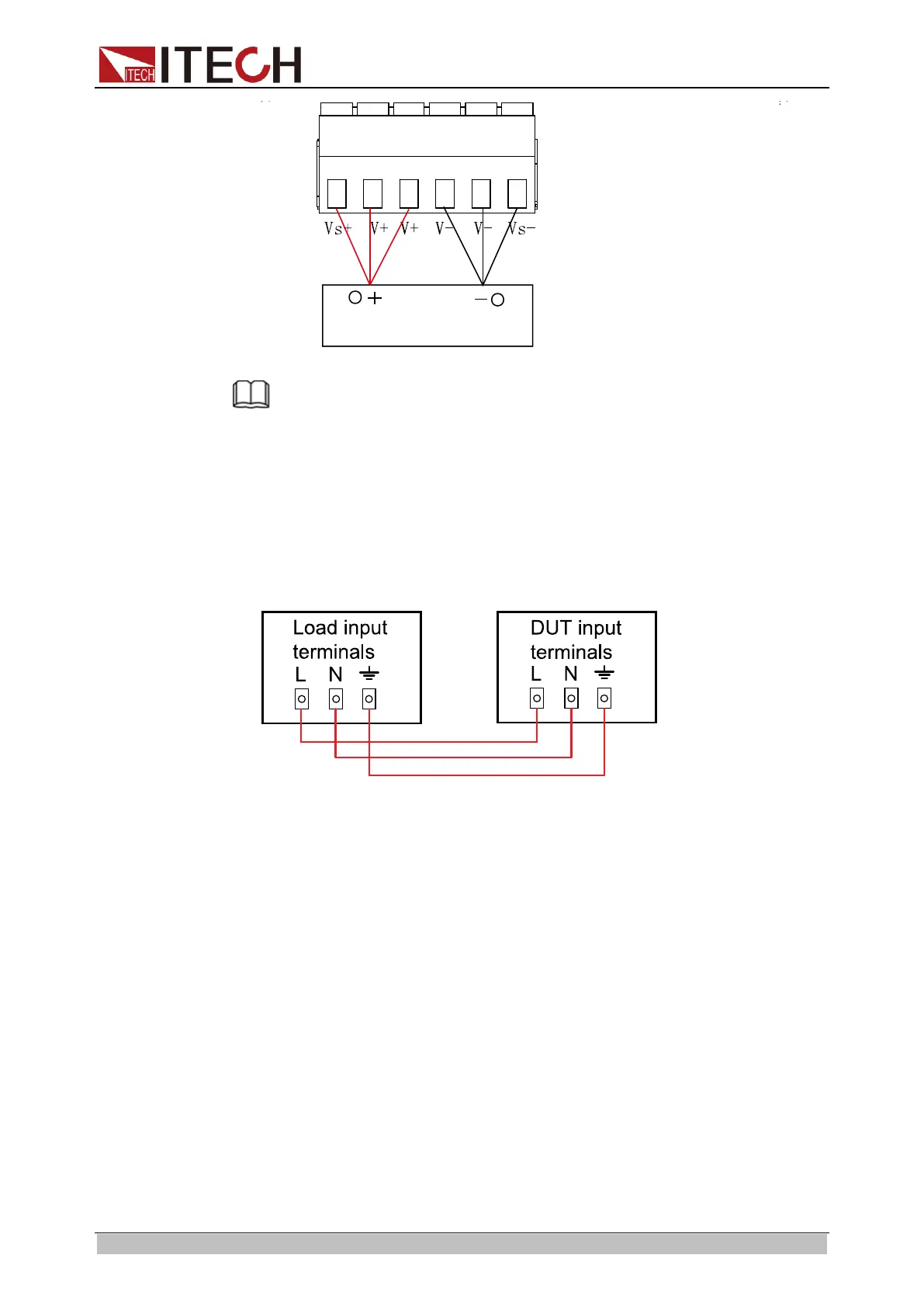

The anode and cathode of the AC power supply has no influence on measurement data. The
anode and cathode of the output end of the DC power supply must be connected properly;
otherwise, measurement data will be negative.
3. Install the protection cover of the current input terminal after connecting
the measurement circuit, to prevent contact with the input terminal in
measurement and protect the personal safety.
⚫ The wiring for basic measurements of Model IT8616(15U cabinet)/IT8617
(15U cabinet: one master and two slaves)/IT8624/IT8625/IT8626/IT8627
/IT8628 is as follows.
