Basic Operations

pressing the soft keys corresponding to CC, CR, CP and CV in the setting

interface. After selecting the operating mode, you can easily set the voltage,

current, resistance, power and other information.

All data are adjusted according to the current, power, CF and PF value in any

mode. In the local mode, all data can be set in the front panel.

When the parameter is edited, the text or area edited or selected in the interface

will flash to remind you of the value edited or set at present.

NOTE

The CV operating mode is only for IT8615 and IT8615L.

3.9 Data Recording Function

IT8600 electronic load can record all measurement data. The user can press

[Log] and set the recording interval (in second). You can press Start to start

data recording. The electronic load can record present measurement data at

intervals and save such data into the peripheral memory disc. All data are saved

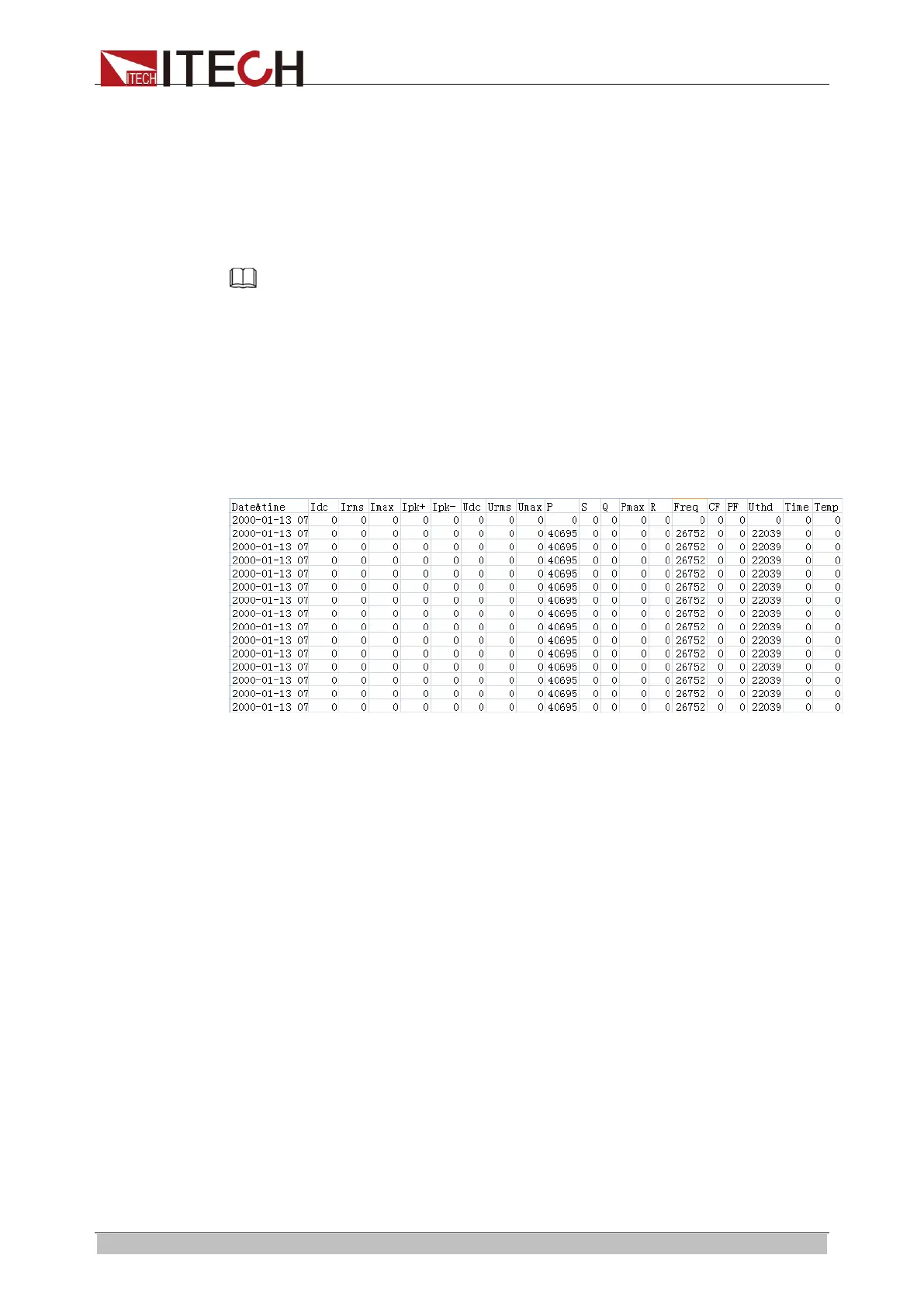

in files ending in CSV. The file name is IT8615Meter.csv, and the file contents

are shown below.

3.10 Online Load Setting

The load has two modes for modification of online settings, so that the user can

directly modify the current setting when the input is ON. Settings can be

modified in two ways:

⚫ Rotate the knob: rotate the knob towards the Decrease direction to

decrease the current, resistance and power and the Increase direction to

increase the current, resistance and power.

⚫ Use the cursor and number keys: press the Up and Down key to select the

parameter to be set, and directly press the numeric keypad to input the

setting.

3.11 Timing Mode

The loading time of IT8600 electronic load can be set within the range from 1 s

to 60000 s. When the timing mode is enabled and the time is set, the electronic

load will calculate the time during loading. When the loading time reaches the

set time, the input will be turned off automatically.

The user can enable the timing mode in the system setting menu, as shown

below.

1. Press [Menu] to enter the system setting interface.
