ITech IT8625 - Page 24

Quick Start
Copyright © ITECH Electronic Co., Ltd. 15

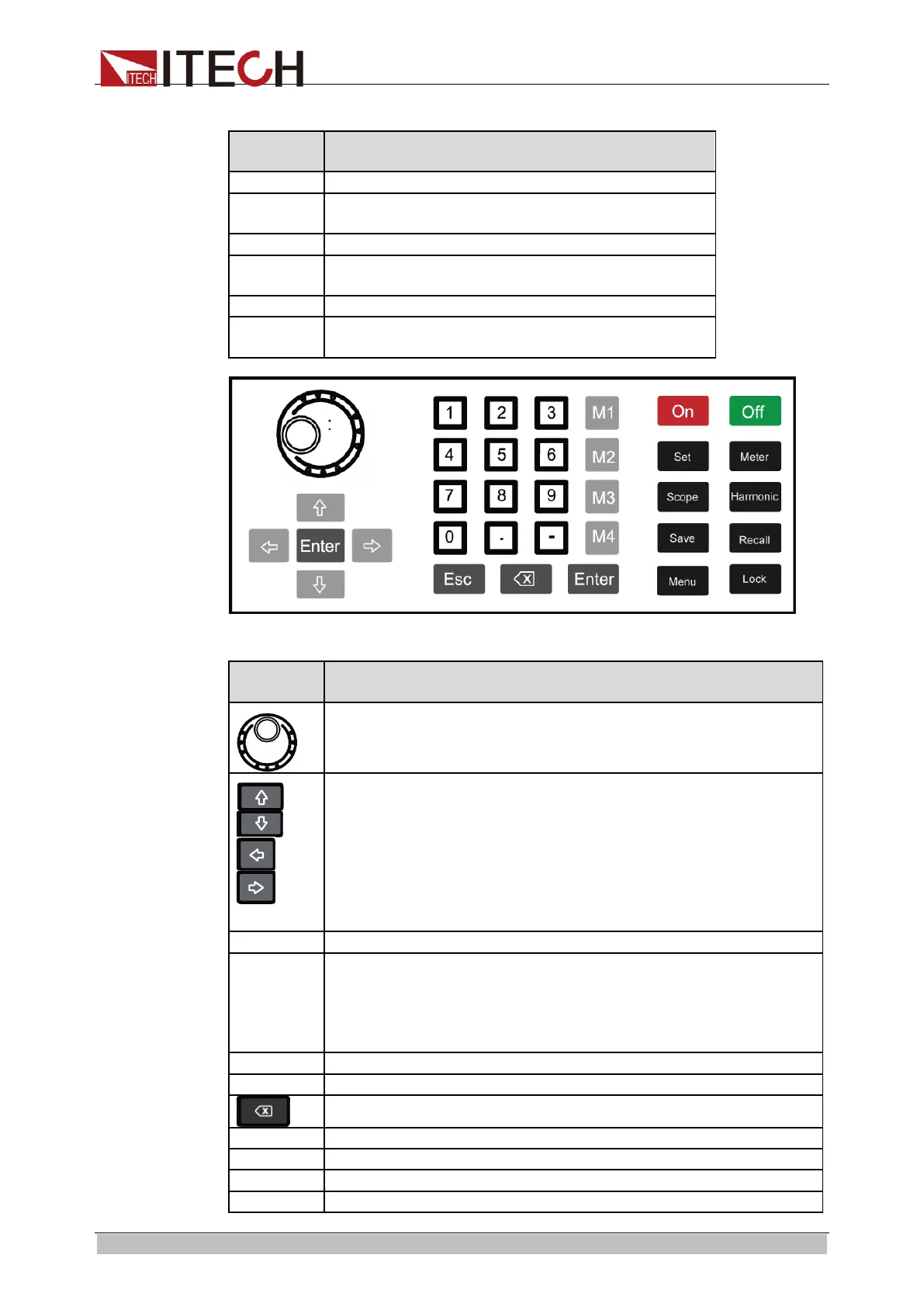

Key Details
Key
Symbol
Name & Function
Print
Used for saving screen images
Local
Used for switching the remote control mode to the
local mode
Trig
Used for manual trigger.
Log
Used for recording data. The recording interval
can be set in second
Home
Used for going back to home page
F1-F6
R1-R5
Soft keys for corresponding screen menu
operations
Key Details
Key
Symbol
Name & Function
Rotary knob: used for setting the value indicated by the cursor,
selecting the voltage and current range, adjusting the waveform,
etc.
Up/Down key and Left/Right key.
List edit: the programming items can be rolled by operating the
Up/Down key. Corresponding information is shown on the right
side and options can be selected through the soft key.
Digit Edit: the programming items can be rolled by operating the
Up/Down key. The digit to be edited is selected by operating the
Left/Right key or through the knob. Carrying can be completed
automatically.
0-9
Number key. Enter the number directly.
M1-M4
Memory key.
Short press it to recall the saved parameter settings of the
corresponding storage areas.
Long-press it to save current settings into the corresponding
storage areas.
Enter
Enter key, used for confirming the message.
Esc
Cancel/Esc key.
Used to delete the input digits in the digit editing mode.
ON
Used for enabling the load function and input.
OFF
Used for disabling the load function and input.
Set
Setting key used for setting loading parameters.
Meter
Basic metering key used for basic metering.
