Basic Operations
Copyright © ITECH Electronic Co., Ltd. 41

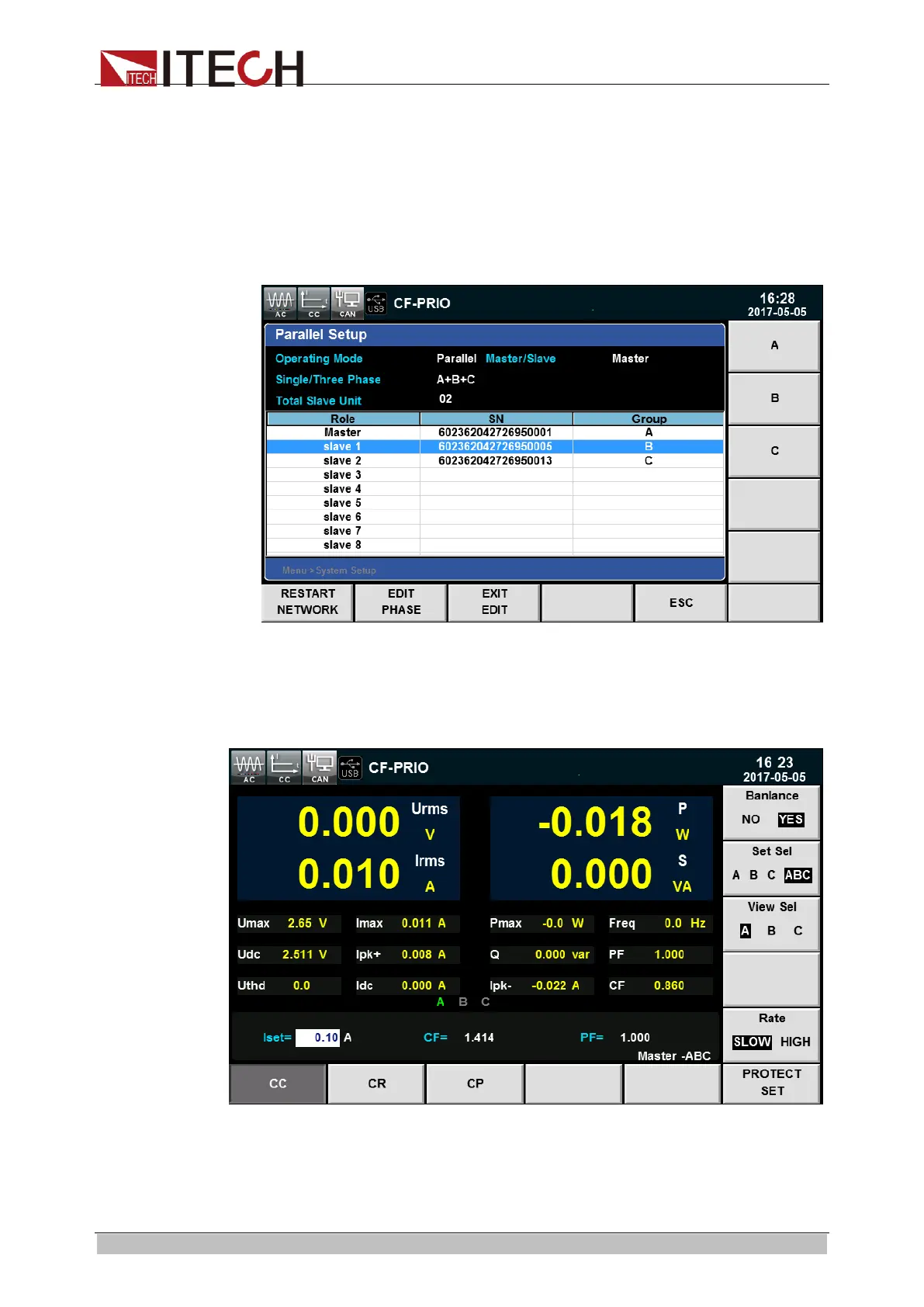

Then the user can configure the Phase A/B/C of three electronic loads on
master.
1. Press [Menu] to enter the system menu setting interface.
2. Select [PARALLEL SETUP] to enter the parallel setting interface.
3. Press the Up and Down key to select the “Single/Three Phase” > “A+B+C”.
4. Press [EDIT PHASE], configure the Phase A/B/C of three electronic loads,
as shown below.
5. Press [Enter] to save the setting.
After saving the settings, the user must power off the master and power on
again. The interface of master is shown as below.
⚫ Take the example of IT8628 electronic load
Select two electronic loads as the slaves.
1. Press [Menu] to enter the system menu setting interface.
