User Guide

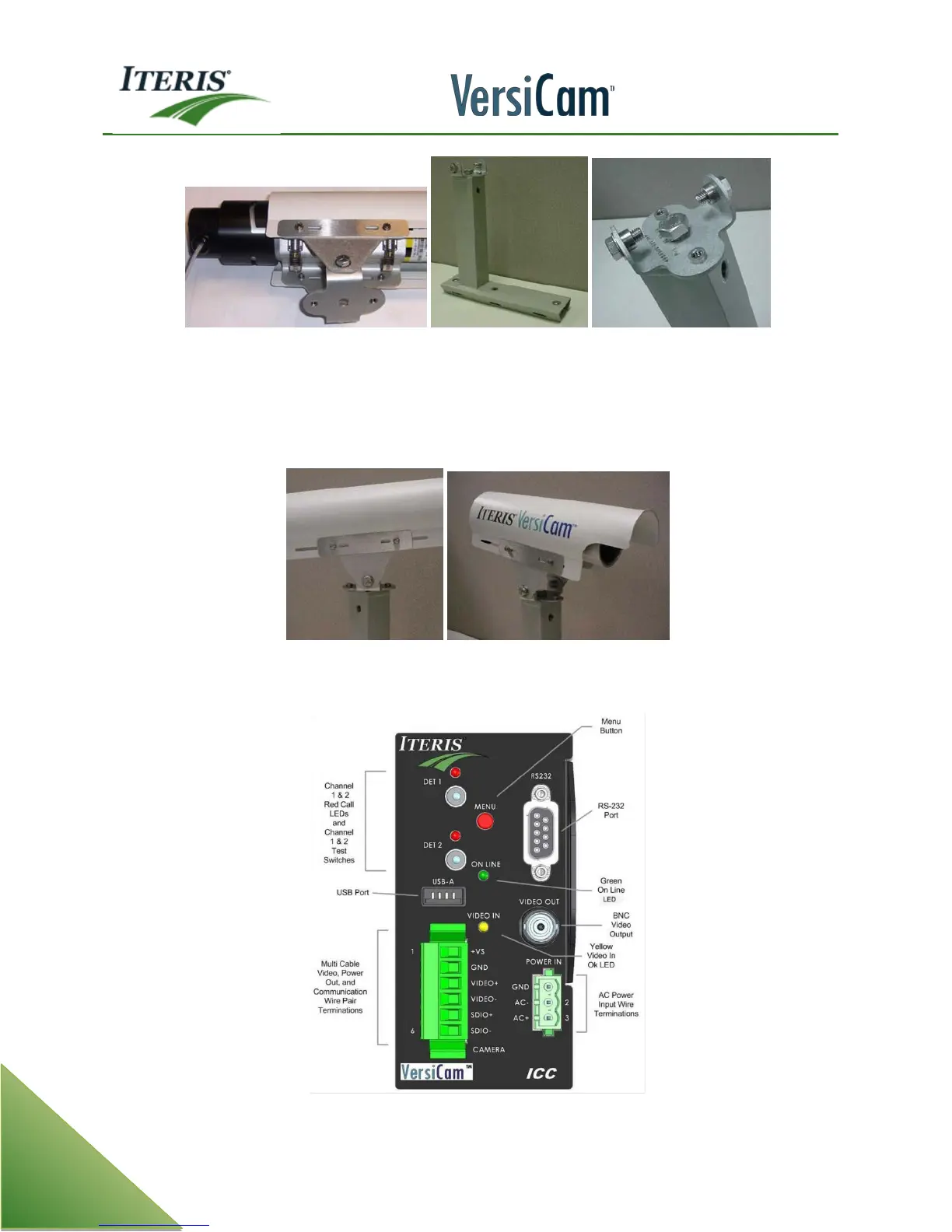

Camera Mount to Camera Bracket (Pedestal)
Connect the Camera Processor unit camera mount to the camera bracket (pedestal) using the center bolt to
secure both pieces together. Snug the center bolt and the two side camera mount bolts down temporarily.
Final camera aiming will be done during the Field of View (FOV) setup procedure and all bolts will be
permanently secured then.
Camera Installed on Pedestal Bracket
3.2 The ICC Module
The VersiCam ICC Module
