3. INSTALLATION
The VersiCam system is composed of two distinct components, the Camera Processor unit and the ICC
module which is located in the traffic control cabinet
.
The Camera Processor unit and the ICC module
communicate over twisted pair cable. The cable transmits data and provides power from the ICC module
to the Camera Processor unit
.
A USB mouse and a video monitor provide the necessary user interface to
the ICC module
.
The module can also be configured using a laptop computer and Iteris VRAS software.

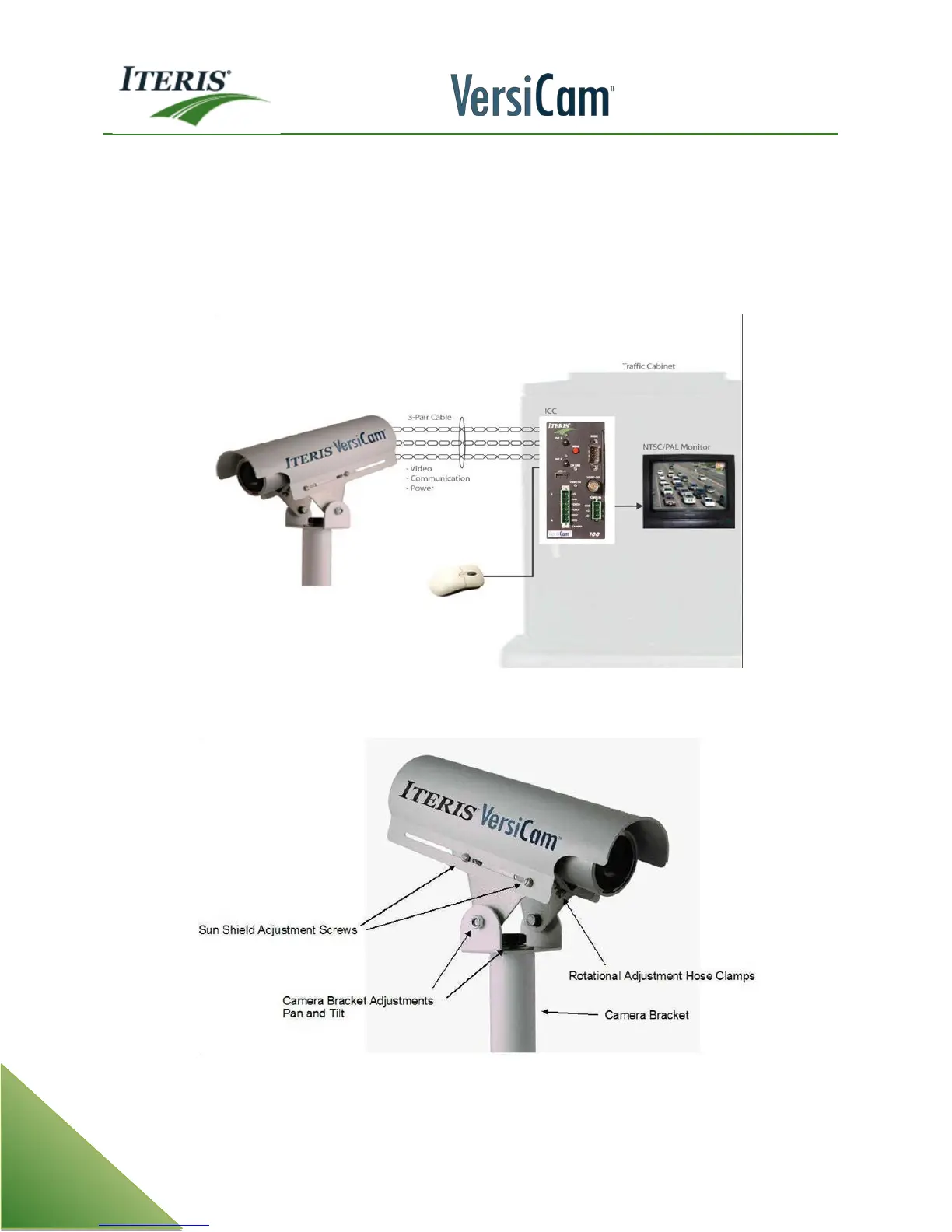

The VersiCam System
3.1 Camera Installation
The Camera Processor unit integrates the camera and video processor into one. Communication data and
video are sent back to the ICC module via twisted pair cables.
