User Guide

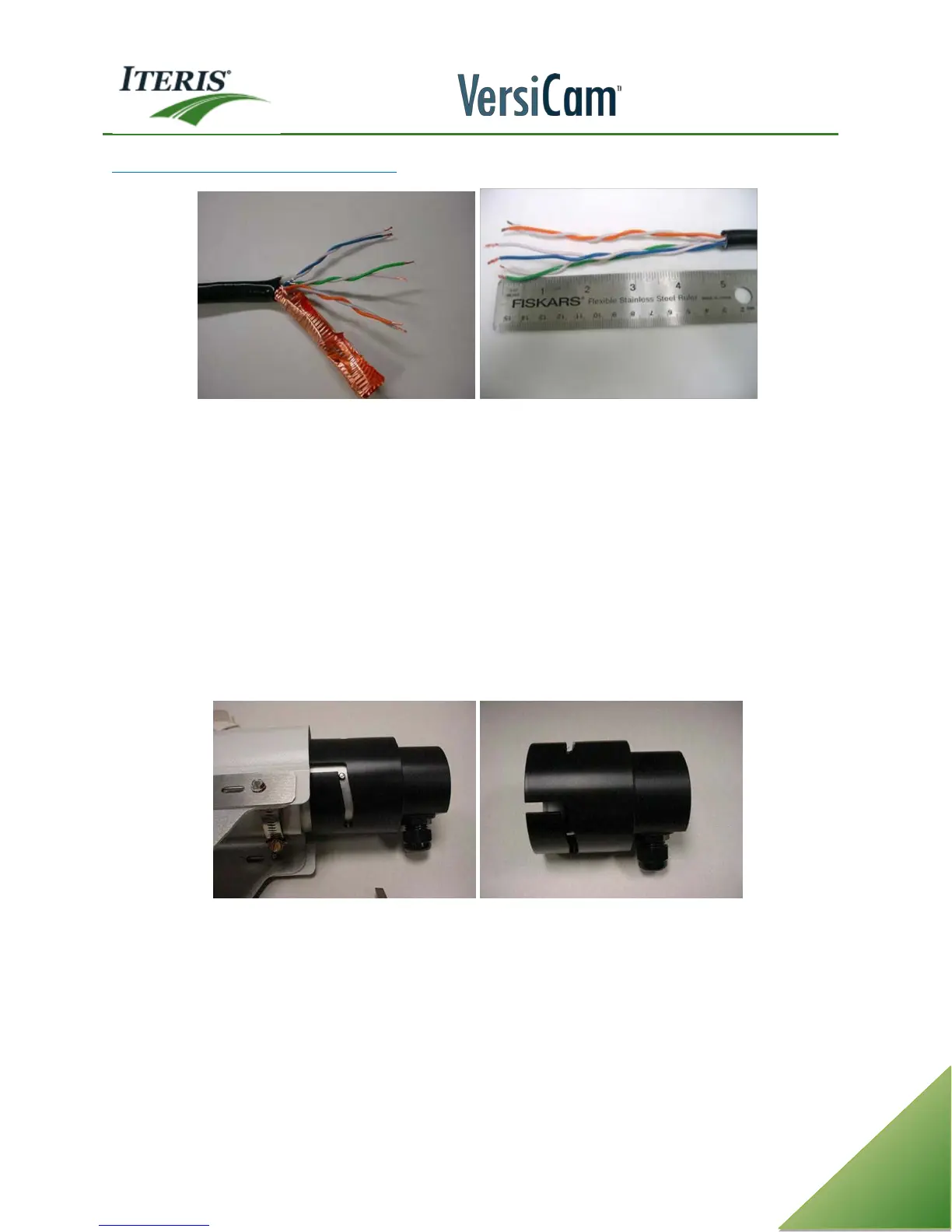

Camera Processor Unit Wire Terminations
Multi Conductor Cable Wire Pairs
You will require three 19 gauge stranded wire pairs. Carefully strip the multi cable outer jacket back
approximately five inches without nicking or damaging the insulation on the wire pairs inside. Scoring the
outer jacket lightly with a sharp knife and bending the outer jacket sheath back and forth until it parts is the
safest method. Cut the corrugated copper shield and the plastic core wrap flush with the outer jacket being
careful not to damage the wire pairs. Separate the three wire pairs and strip each of the wires insulation back
approximately 1/4 inch.
Important:
If wire color pairs are not uniquely color coded or marked, be sure to label or number
the wire pairs ahead of time so they can easily be identified at the other end. Use of mismatched
pairs and wires can lead to installation issues and possible damage to the VersiCam equipment. Also
make note of which wire pairs are being used for what purpose i.e., camera power, video, or
communication.
Back Cap Assembly
To separate and remove the back cap assembly from the back of the Camera Processor unit, loosen the
camera visor screws and move the sun shield to its extreme forward position. Grasp the back cap assembly
firmly and twist it approximately one quarter turn to free the two posts from their detent position in the slots
and allow the cap assembly to be pulled free from the back of the Camera Processor unit housing.
