User Guide

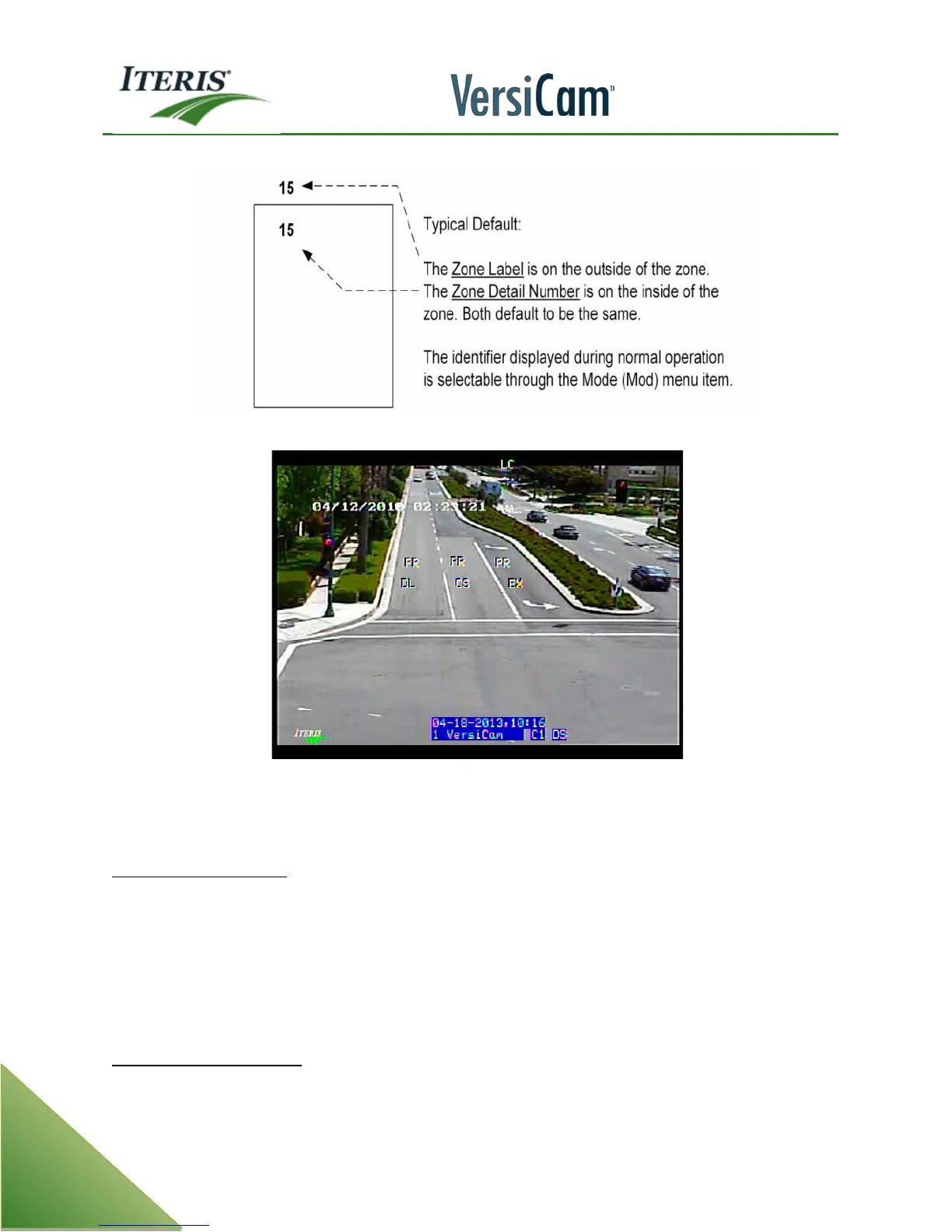

Zone Label and Zone Detail Number
Example Showing Reference by Zone Type
The zones in the picture are being referenced by "Zone Type".
PR = Presence Zone DL = Delay EX = Extension BI = Bike CSO = Count
Output Channel (Out / Ch) - This parameter determines how the output channels will function. This is a global
setting.
NORMAL - This is the default setting and is most commonly used during normal operation. The
"NORMAL" setting will allow the output channels to function in a "normal" mode. When cars are
present in the detection zone the output channel associated with that zone will place a call to the
traffic controller.
MAXCALL - The "MAXCALL" setting places constant calls on all output channels.
Inactive Channel (Inact / Ch) - This setting determines how inactive (unused) channels will function. This is a
global setting.
