ITL HD 7515 - Muffler Installation

11
Installation
Muffler Installation
1. Insert the rubber coupling on the motor head air exhaust.
2. Using a Phillips screwdriver, tighten the clamp collar to ensure
adequate sealing.
3. Insert the 90° elbow into the rubber coupling, and tighten the clamp
collar as per instructions in step 2.
4. Apply ABS glue to the 90° elbow and insert mufer.

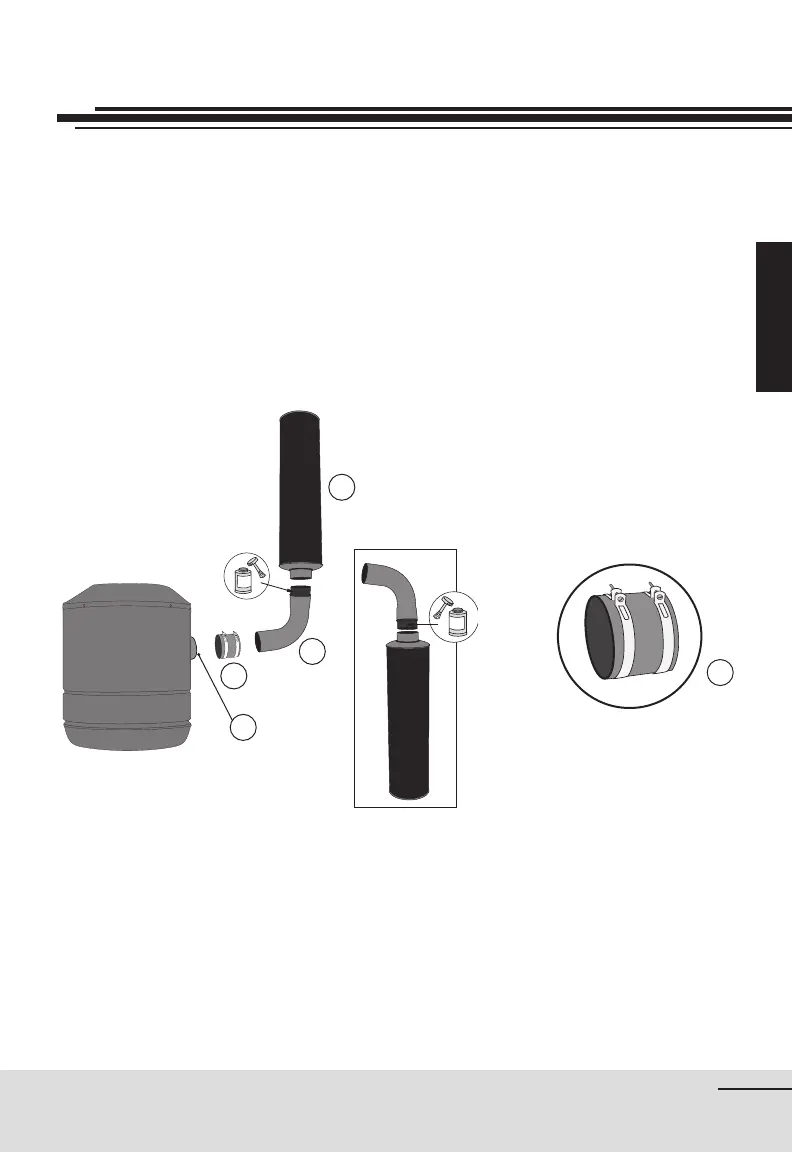

A. Rubber coupling
B. 90° elbow
C. Mufer
D. Air Exhaust
A
B
C
D
A
Glue not included.
