ITRON CENTRON C1SD - Removing the Board-To-Board Connector

Installation
2-4 CENTRON Meter Technical Reference Guide

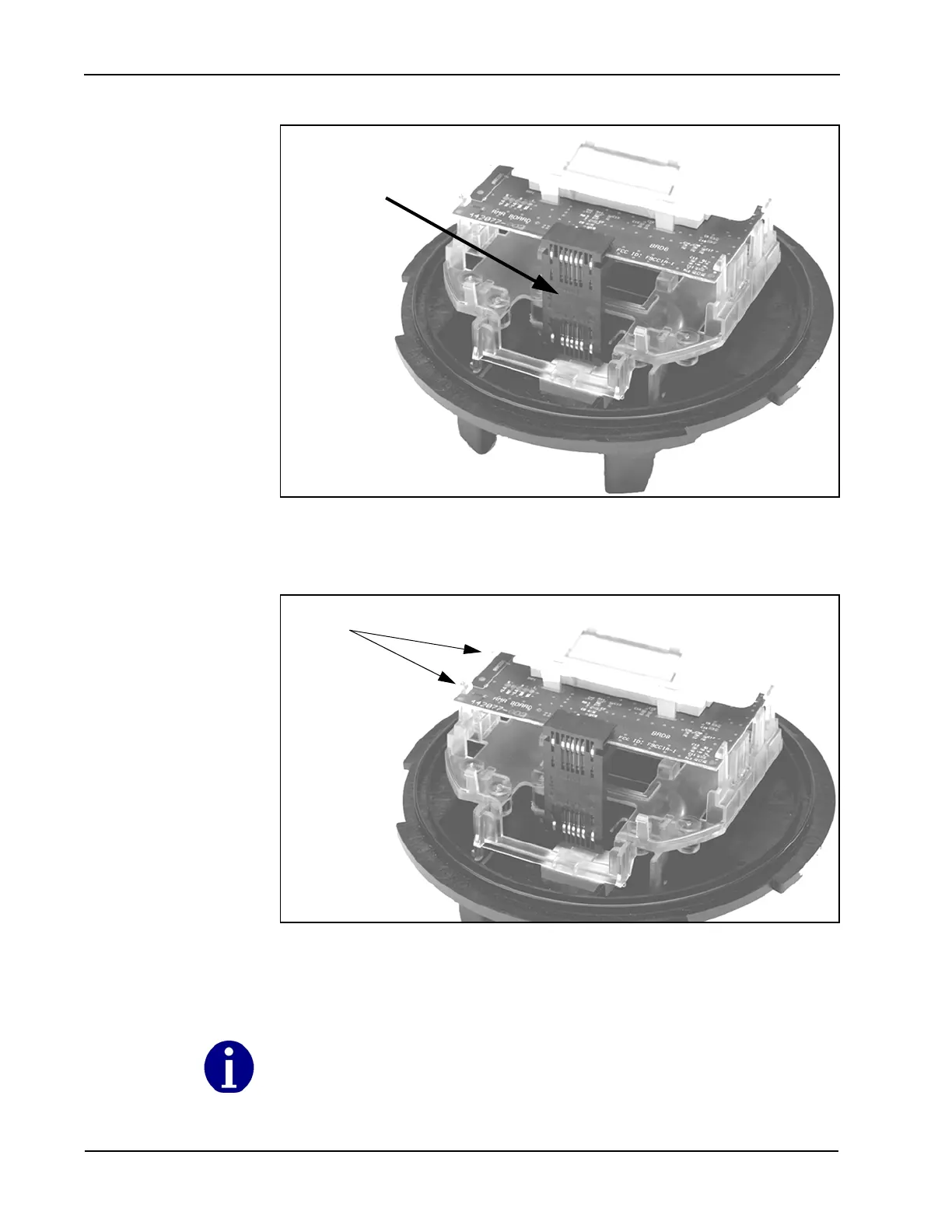

Figure 2.1 Removing the Board-to-Board Connector
5 Remove the register module, one side at a time, by pulling gently outward on
the meter frame snaps (see Figure 2.2) while lifting the module up.
Figure 2.2 Removing the Register Module
6 Snap the new module into the meter frame by aligning the notches at bottom
of the circuit board with the lower two snaps (see Figure 2.3).
Board-to-Board
Connector
Meter Frame
Snaps
The module must be aligned properly in the snaps to avoid damaging the connector or circuit
board.
