Aluminium range DN50/DN80/DN100: Maximum operating pressure: 16bar (Option: 19,3 bar) Flanging: ISO PN10/16/20 and ANSI125-ANSI150
G
size
Qmax
(m∑/h)
DN Flange
to flange
distance
Dim.: L
Rangeability Starting
flow
(dm∑/h)
Flow rate at:
Error ≅ -10%
Typical value
(dm
3
/h)
Pressure
loss pr
(1)
(mbar)
1 Imp LF
& Cyble
(m
3
/Imp)
1 Imp
MF
(dm∑/
Imp)
Freq MF
at Qmax
(Hz)
1 Imp HF
(dm
3
/Imp)
(Std. Gears
32/40)
Freq HF
at Qmax
(Hz)
A B C D Vc
(dm∑)
V PED
(dm∑)
Weight
(Kg)
G16 25 50 171 20 to 50 50 150 0,13 0,1 2,72 2,55 0,0585 119 190 121 311 182 0,59 2,24 11 G25 40 50 171 20 to 100 50 150 0,33 0,1 2,72 4,08 0,0585 190 190 121 311 182 0,59 2,24 11 G40 65 50 171 20 to 160 50 150 0,88 0,1 2,72 6,64 0,0585 309 190 121 311 182 0,59 2,24 11 G65 100 50 171 20 to 200 50 150 2,08 0,1 2,72 10,2 0,0585 475 190 121 311 182 0,59 2,24 11 G65 100 80 171 20 to 200 70 250 0,69 0,1 4,36 6,36 0,0939 296 228 159 387 182 0,94 3,1 15
G100 160 50 171 20 to 200 70 250 3,25 0,1 4,36 10,2 0,0939 473 228 159 387 182 0,94 3 15 G100 160 80 171 20 to 200 70 250 1,73 0,1 4,36 10,2 0,0939 473 228 159 387 182 0,94 3,1 15 G160 250 80 171 20 to 200 80 250 3,15 0,1 5,28 13,2 0,116 599 252 183 435 182 1,16 3,62 17 G160 250 80 241 20 to 160 150 500 2,73 0,1 8,26 8,41 0,178 390 230 179 409 235 1,78 6,53 29 G160 300 100 241 20 to 160 175 550 2,1 1 21,8 3,82 0,241 346 265 213 478 235 2,41 7,7 34 G250 400 100 241 20 to 160 200 600 2,63 1 32,6 3,40 0,365 304 333 282 615 235 3,65 11 43
(1) pr: Pressure loss (mbar) with =0,83Kg/m∑ and at Qmax

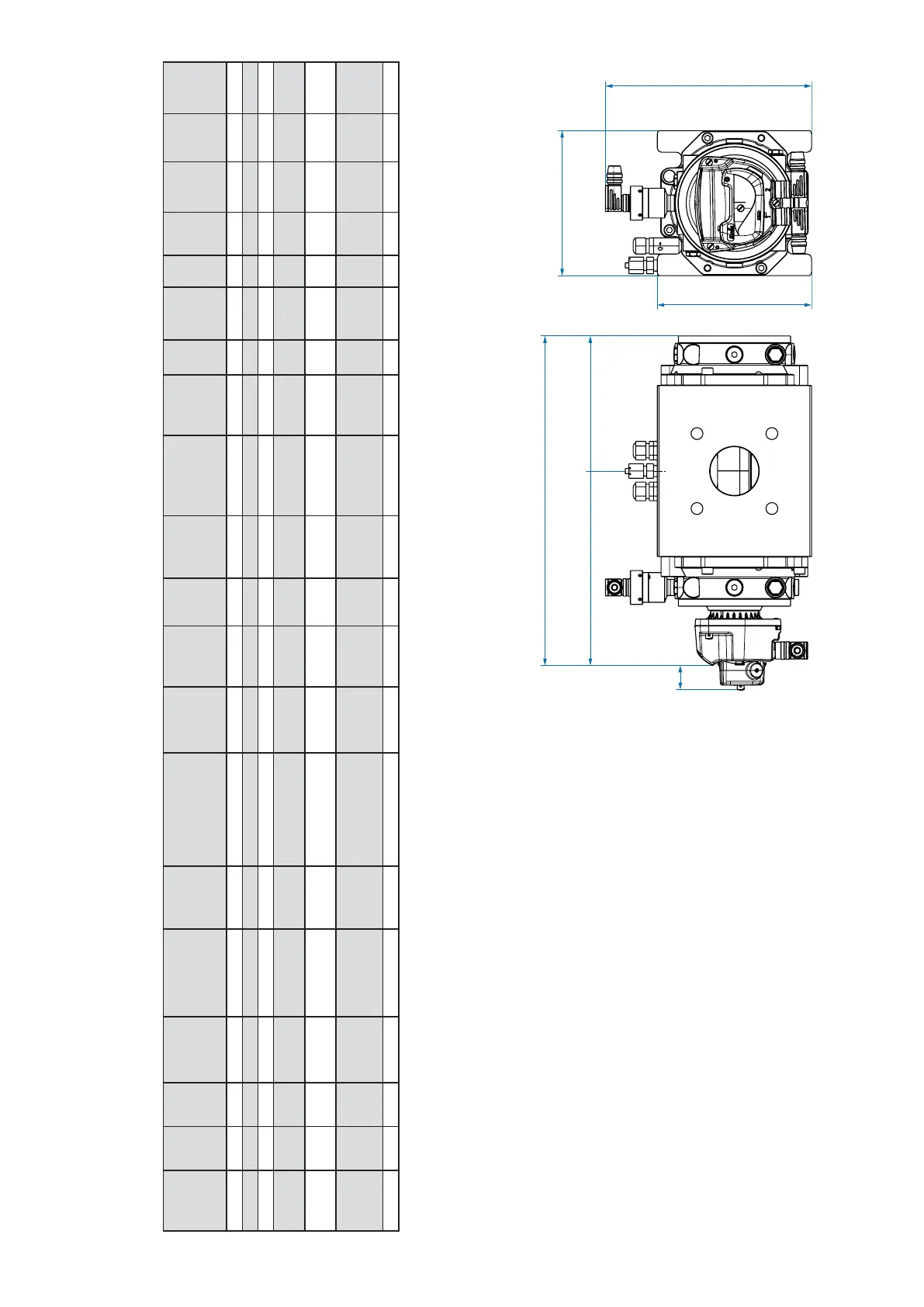

D
D + 72mm
C
A
L
B
30

ITRON Delta Specifications

General

Display	LCD
Operating Temperature	-10°C to +55°C
Storage Temperature	-25°C to +70°C
Frequency Range	50/60Hz
Communication Interface	RS-485 (Modbus RTU)
Input Type	Voltage, Current
Measurement Type	Active, Reactive, and Apparent Energy
Voltage Range	85-265 VAC
