Installing the Module to the Pit Wall
1. Select a vertical, flat surface in the pit box.

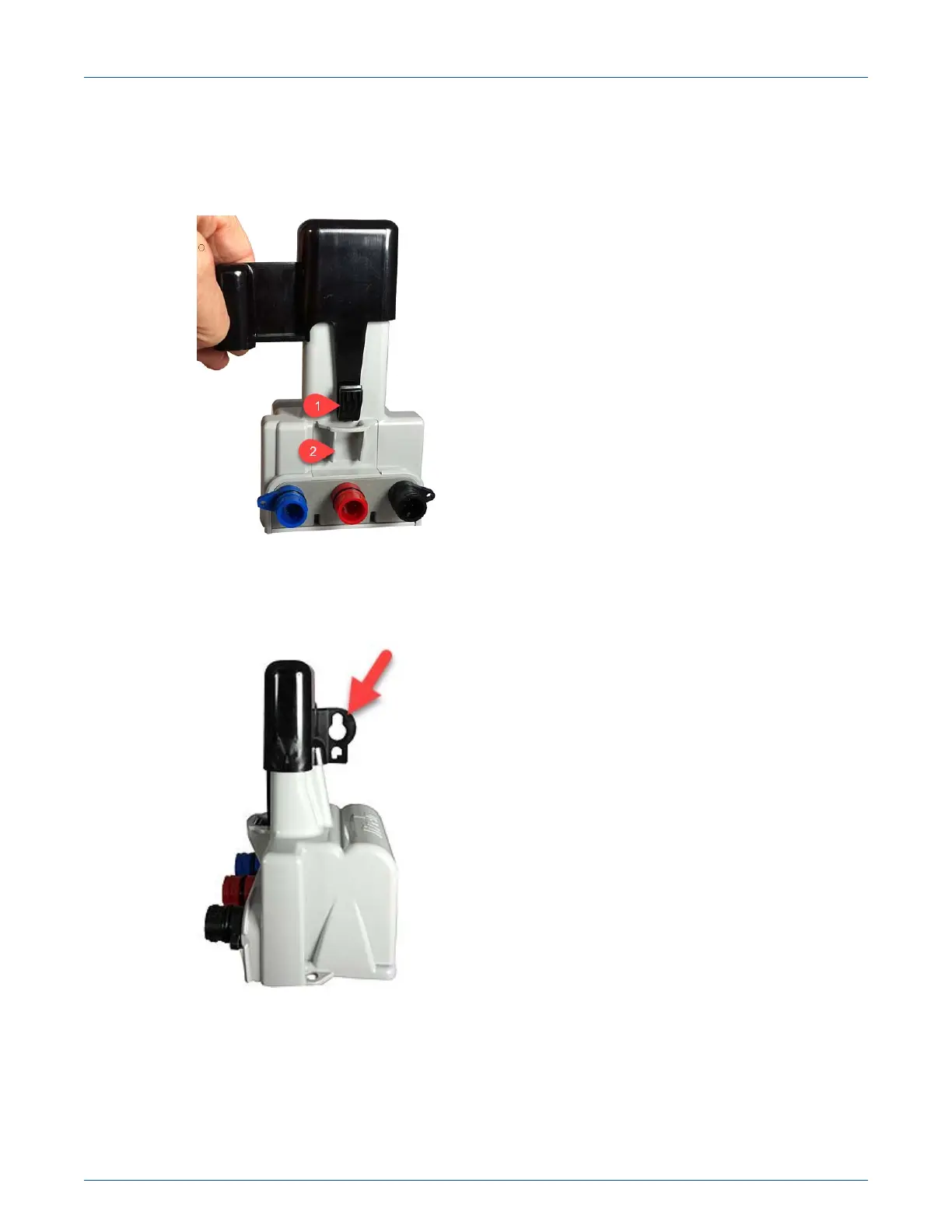

2. Insert the rod/wall mounting bracket tab (1) into the module tab receptacle (2).
3. Position the pit module vertically so the top of the pit module is between 1 and 2 inches below
the bottom of the lid.
4. Mark the location of the top mounting hole.
5. Drill a pilot hole in the pit box wall. Follow the screw manufacturer's recommendation for the
pilot hole size.
6. For concrete-type pit boxes, it may be necessary to use a screw anchor. Choose an anchor
appropriate for a #10 pan head screw.
08 January 2020 815-0006-01 Itron, Inc. Page 31 of 48
Template 4 Installing the OpenWay Riva 500W ERT Pit Module
