1. Black register connection
2. Red optional antenna connection
3. Blue telemetry device connection

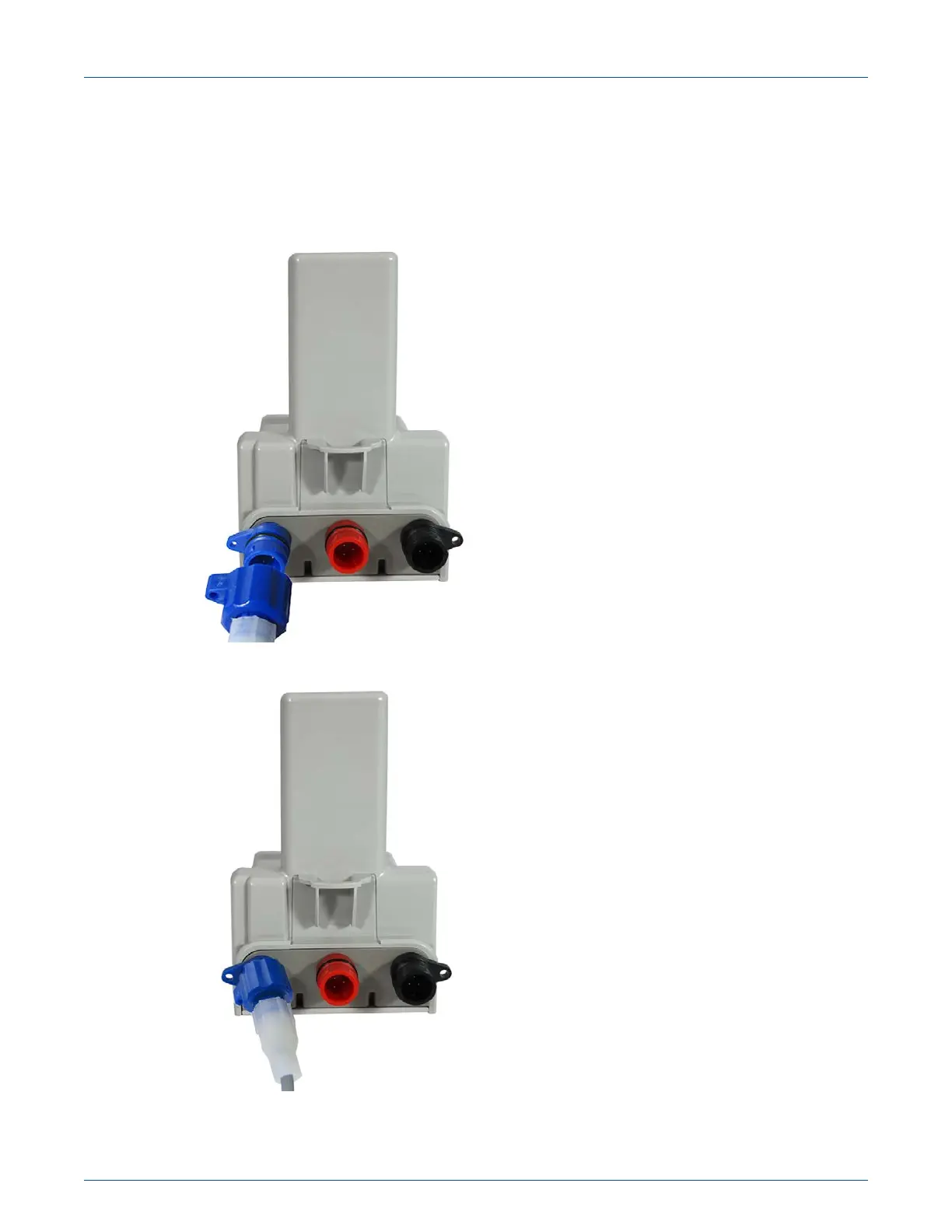

4. Align the disconnect valve connector with the pit module's blue telemetry connector.
5. Push the valve connector into the pit module's connector.
08 January 2020 815-0006-01 Itron, Inc. Page 35 of 48
Template 4 Installing the OpenWay Riva 500W ERT Pit Module
