ITRON RR 16 - Safety Shut-off Valve SL-IZ Start-up; SL-IZ Start-up Sequence

30
The sequence of start-up the SSV SL-IZ.. is to be observed!
If the sequence is not considered, the valve disc arm contacts the inside of valve body and
the chamfered edge of valve disc arm (3) can be deformed.
a) Pressure compensation by opening the manipulation valve (self closing) slowly, up to closing pressure
of regulator.
b) Unscrew cap of reset shaft on valve body.
c) Turn the reset shaft (6) in direction of arrow*) until valve disc arm (3) engages into latch lever (only
possible if pd smaller than OPSO).
d) Screw on cap of reset shaft.
*) For turning reset shaft (6), the maximum torque value is 5 Nm to engage valve disc arm (3) into latch lever.

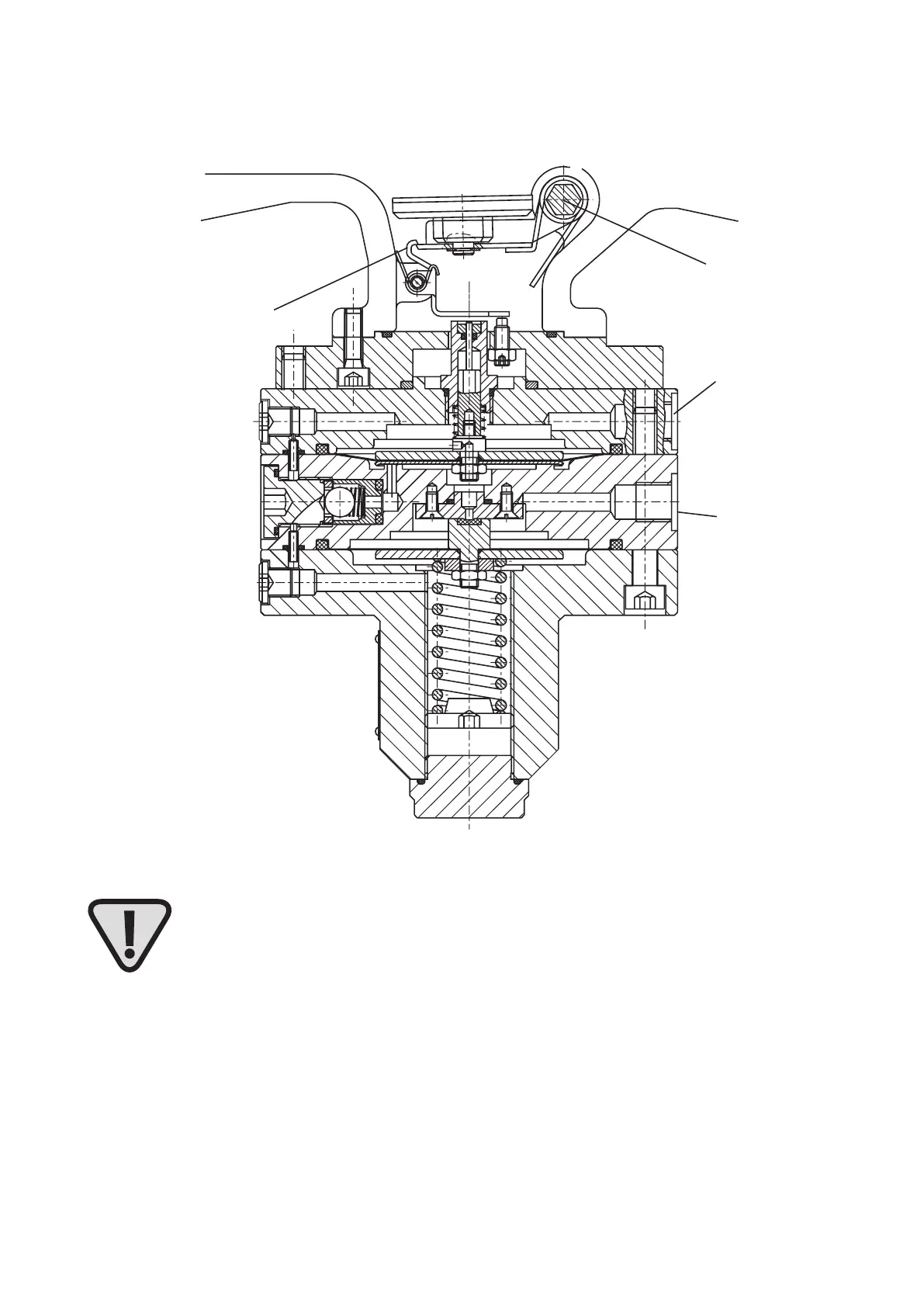

Safety shut-off valve SL-IZ..
Start-up instructions
Control line
Connection ãA“
Exhaust-/
Breathing-Connection ãB“
3
6
