Figure 1.
Figure 4.
Water
Tank
City Water
Inlet
Water
Heater
Check
Valve
Autofill Tank Valve,
Plumb to Tank
Pumpgard
Strainer
Do Not Plumb Autofill
to Pump Suction Line
CAUTION
IF YOU ARE NOT FAMILIAR WITH APPLICABLE
ELECTRICAL STANDARDS, HAVE THE UNIT INSTALLED BY A
QUALIFIED ELECTRICIAN.
CAUTION
Suggested wiring information is given as a reference. For proper
information, please reference ABYC E-11, AC and DC Electrical
Systems on Boats guidelines.
Wire Size Table
Total Wire Length - feet (meters)
Pump 0 - 20 ft 20 - 35 ft 35 - 55 ft
Voltage (0 - 6 m) (6 - 9 m) (9 - 12 m)
12 VDC #14 AWG #12 AWG #10 AWG
(2.5 mm
2
) (4 mm
2
) (6 mm
2
)
24 VDC #16 AWG #14 AWG #12 AWG
(1.5 mm
2
) (2.5 mm
2
) (4 mm)
CAUTION
Motor case could get hot during extended
operation. Prolonged contact with skin may cause a burn.
CAUTION
Install a strainer in an accessible location (for
inspection and cleaning) between the tank and pump inlet in
order to protect valves from debris.
Operation
•Fillwatertank
•Openallfaucets
•Turnpumpswitch“ON”
NOTE: Expect a 10 second delay for power up.
•Whenwaterisfreeofair,turnallfaucetsoffbeginningwith
the faucet closest to the pump (Figure 6)
Important: Do not operate the pump more than 15 minutes
continuously.

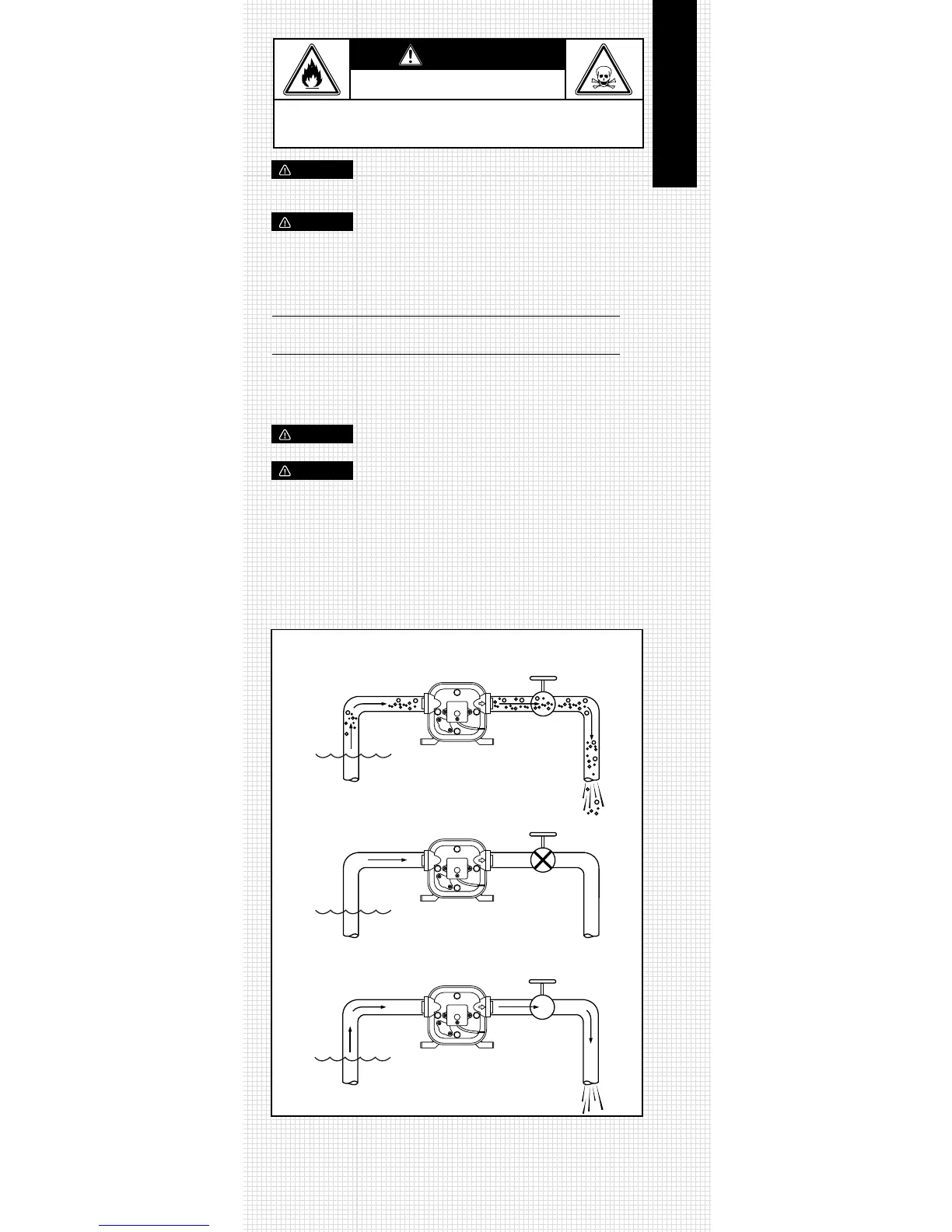

Initial Start Up
Demand Off
Demand On
Figure 6.
WARNING
Wiring must comply with applicable electrical standards and
include a properly sized fuse or circuit breaker. Improper
wiring can cause a fire resulting in injury or death.
FIRE HAZARD
