ITT RED JACKET RSPA Series - Page 7

7

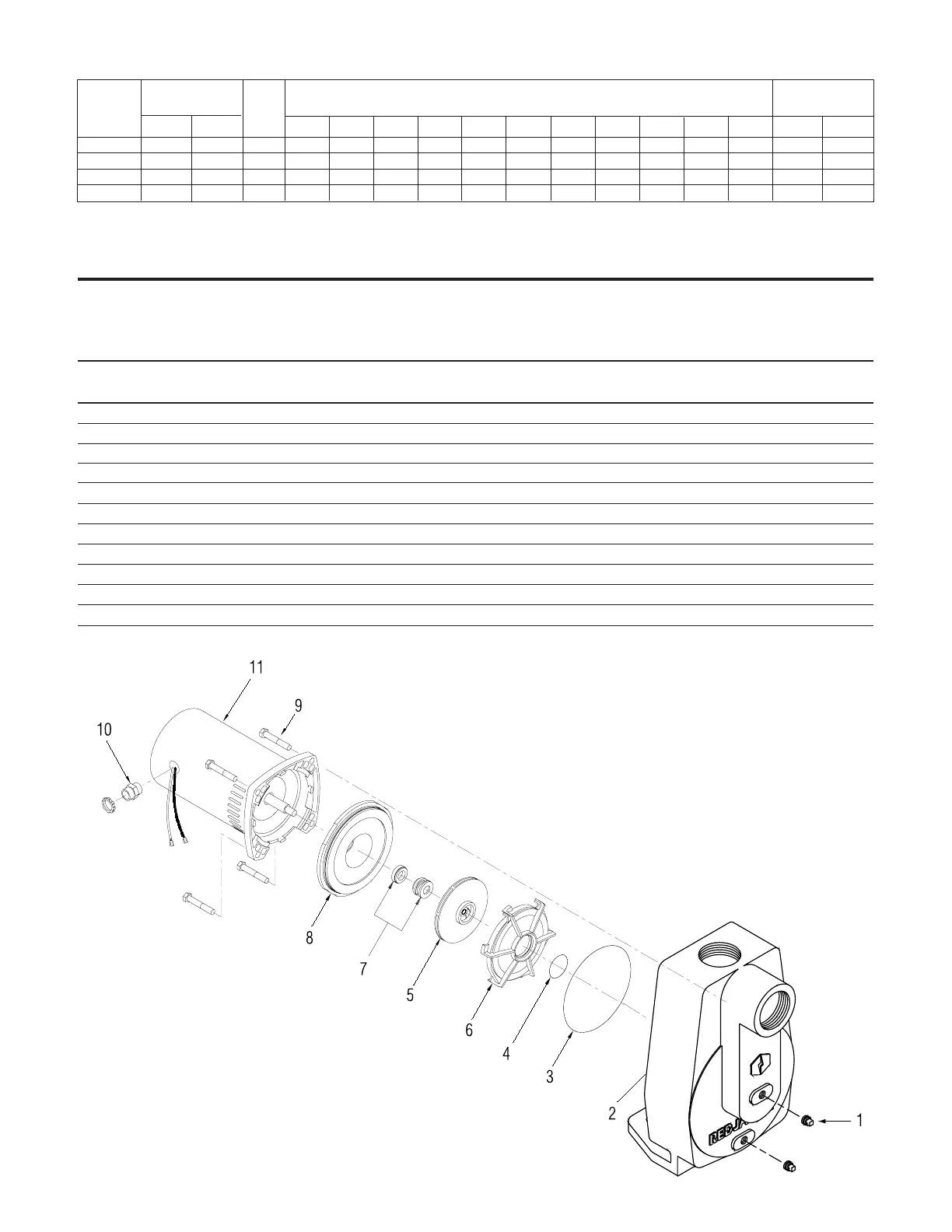

REPAIR PARTS
MODELS: 75RSPA, 100RSPA, 150RSPA, 150FSPA, 200RSPA
KEY NO.
NO. DESCRIPTION USED 75RSPA 100RSPA 150RSPA 150FSPA 200RSPA
1 Pipe Plug (
1
⁄4" NPT) 3 6K2 6K2 6K2 6K2 6K2
2 Case 1 147953 147953 147953 147953 147953
3 O-Ring (6
7
⁄16 x 6
1
⁄4 x
3
⁄32)15K341 5K341 5K341 5K341 5K341
4 O-Ring (1
7
⁄8 x 1
1
⁄16 x
3
⁄32)15K340 5K340 5K340 5K340 5K340
5 Impeller 1 1414404 1414414 1414424 1414304 1414304
6 Diffuser 1 175561 175561 175571 175571 175571
7 Seal (5/8") 1 1760371 1760371 1760371 1760371 1760371
8 Seal Plate 1 671143 671143 671153 671153 671153
9 Case Bolt (
3
⁄8-16 x 1
1
⁄2)413K337 13K337 13K337 13K337 13K337
10 Nipple (
1
⁄2" NPT x 1) with Locknut 1 6K24 6K24 6K24 6K24 6K24
11 Motor 1 1531761 1531771 1531781 1531781 1531791
PERFORMANCE CHART RSPA
Pump Size Gallons Per Minute Against Total Head In Feet
Model Suct. Disch. HP 20' 30' 40' 50' 60' 70' 80' 90' 100' 110' 120' Feet PSI
75 RSPA 2" 2" 3/4 50 49 48 45 41 35 25 88 38
100 RSPA 2" 2" 1 53 52 51 49 46 42 35 25 101 44
150 RSPA 2" 2" 1 1/2 53 53 52 51 51 49 44 39 32 20 115 50
200 RSPA 2" 2" 2 52 52 51 51 50 49 49 46 40 33 21 123 53
Maximum
Shut-Off Head
NOTE: All performance based upon 15 ft. suction lift.
