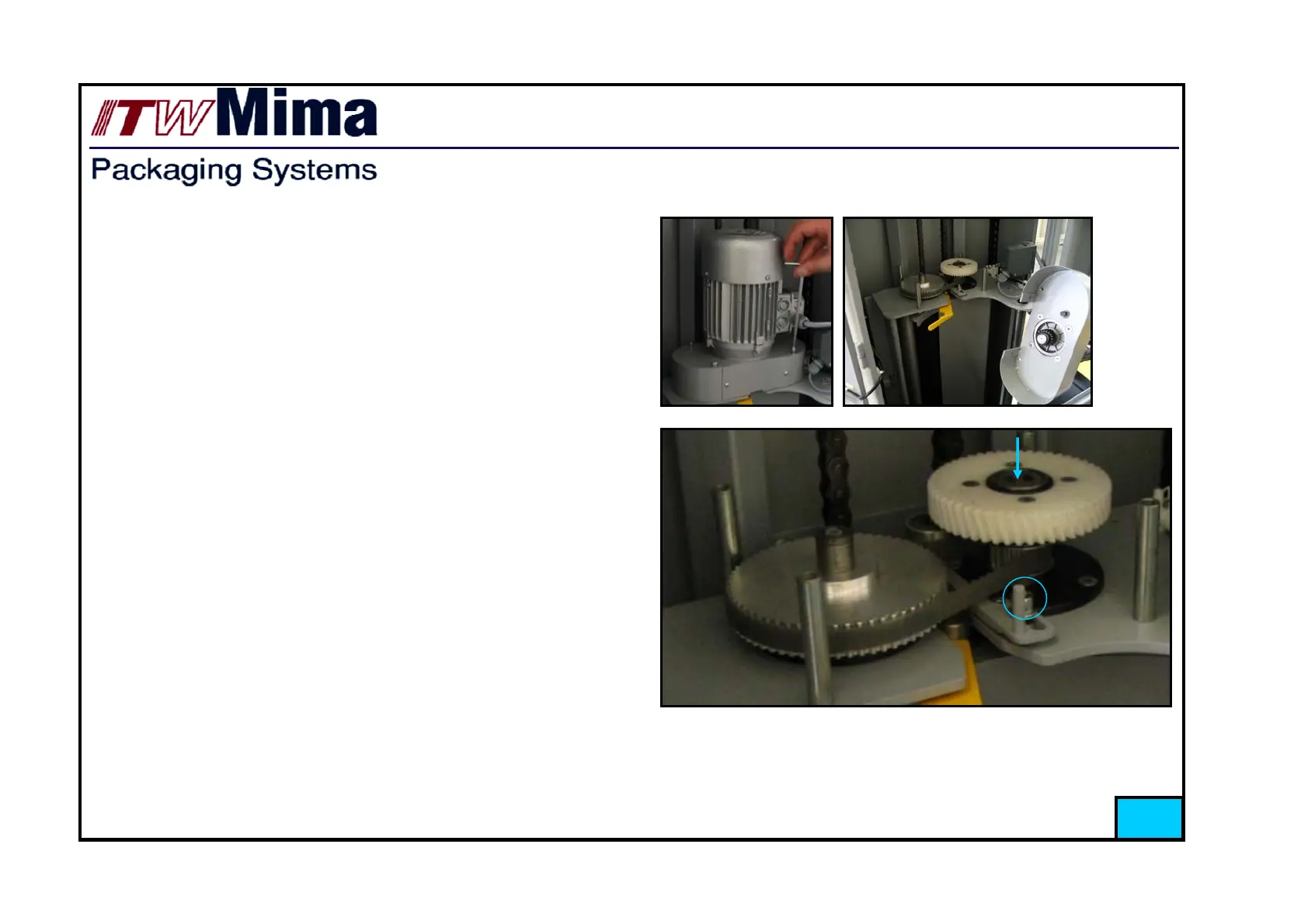

1.1.4. Changing the pre-stretch toothed belt, pre-stretch rollers
and bearings, and pre-stretch ratio
(Ecomat Plus)
Phase1.
Remove the electric motor and motor bed, by opening four fastening
screws
Now the pre-stretch gears are accessible
Phase 2.
Loosen the toothed belt tensioning system by opening fastening
screw
You can now lift of the toothed belt and replace if necessary
Phase 3.
Open the fastening screw of plastic gearwheel, and lift it off
