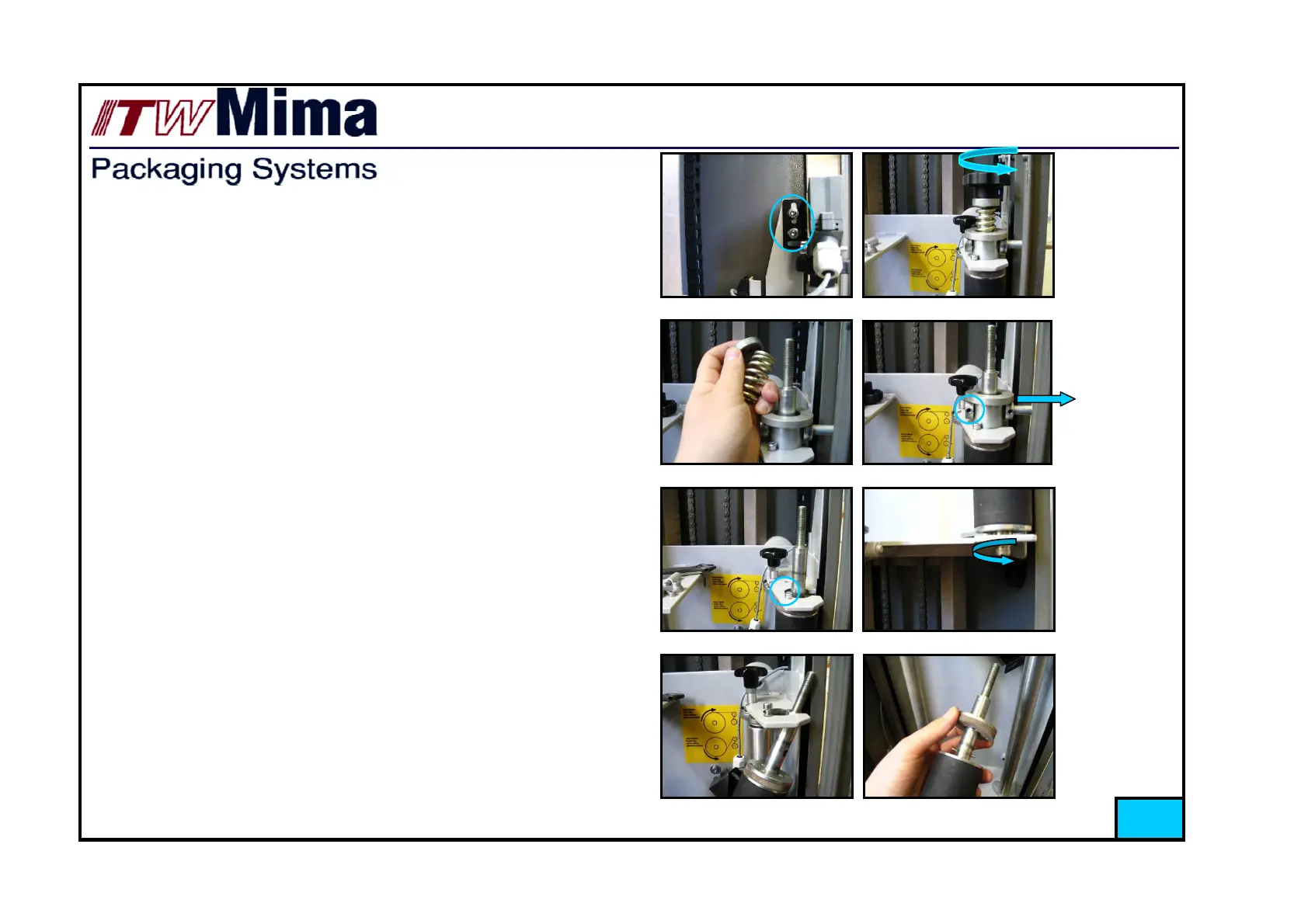

1.1.6 Changing the brake roller, brake roller tension spring and
brake plate (Ecomat Easy)
You can first remove the photocell unit to make following steps
easier
After removing the tension level adjustment nut, you can lift off the
bushing and replace the tension spring
After removing the lever fastening disc and pulling out the lever,
you can lift off the parts above the carriage frame.
Loosen the brake plate fastening screw, and remove the brake roller
fastening screw. You can now twist of the brake roller and replace
necessary parts.
1.1.7 Changing the guide rollers of the film distributor
See pages 17-19
