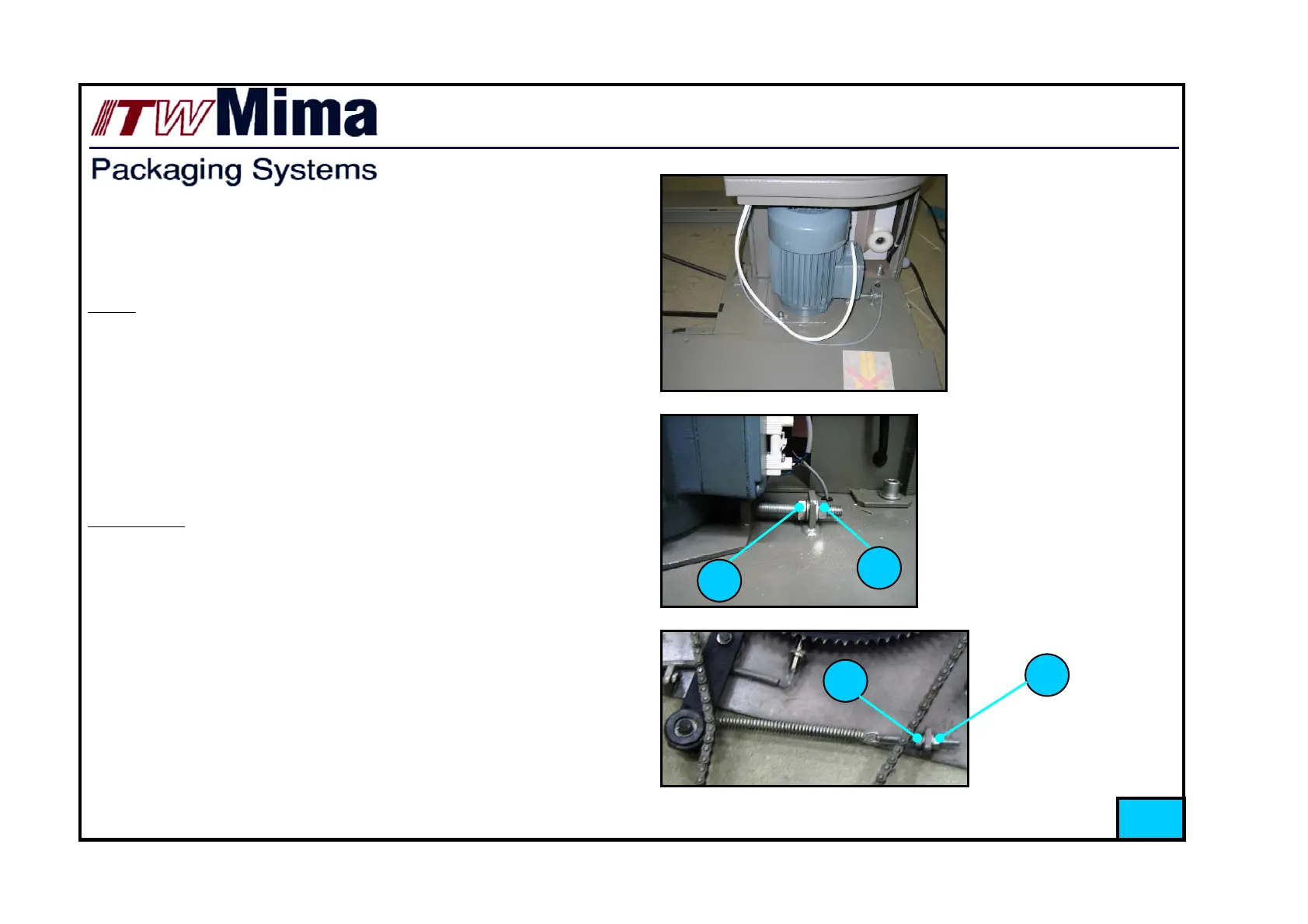

1.3.4 Tensioning of V-Belt and roller chain
V-Belt
- Open the motor bed attachment screws (3 pci)
- Loose the other nut by turning it to clockwise direction (1)
- Tight with other nut by turning it to clockwise direction (2)
- Tight both nuts when belt is tense
Roller Chain
- Loose the other nut by turning it to clockwise direction (3)
- Tight with other nut by turning it to clockwise direction (4)
- Tight both nuts when chain is tense
1
2
3
4
23
