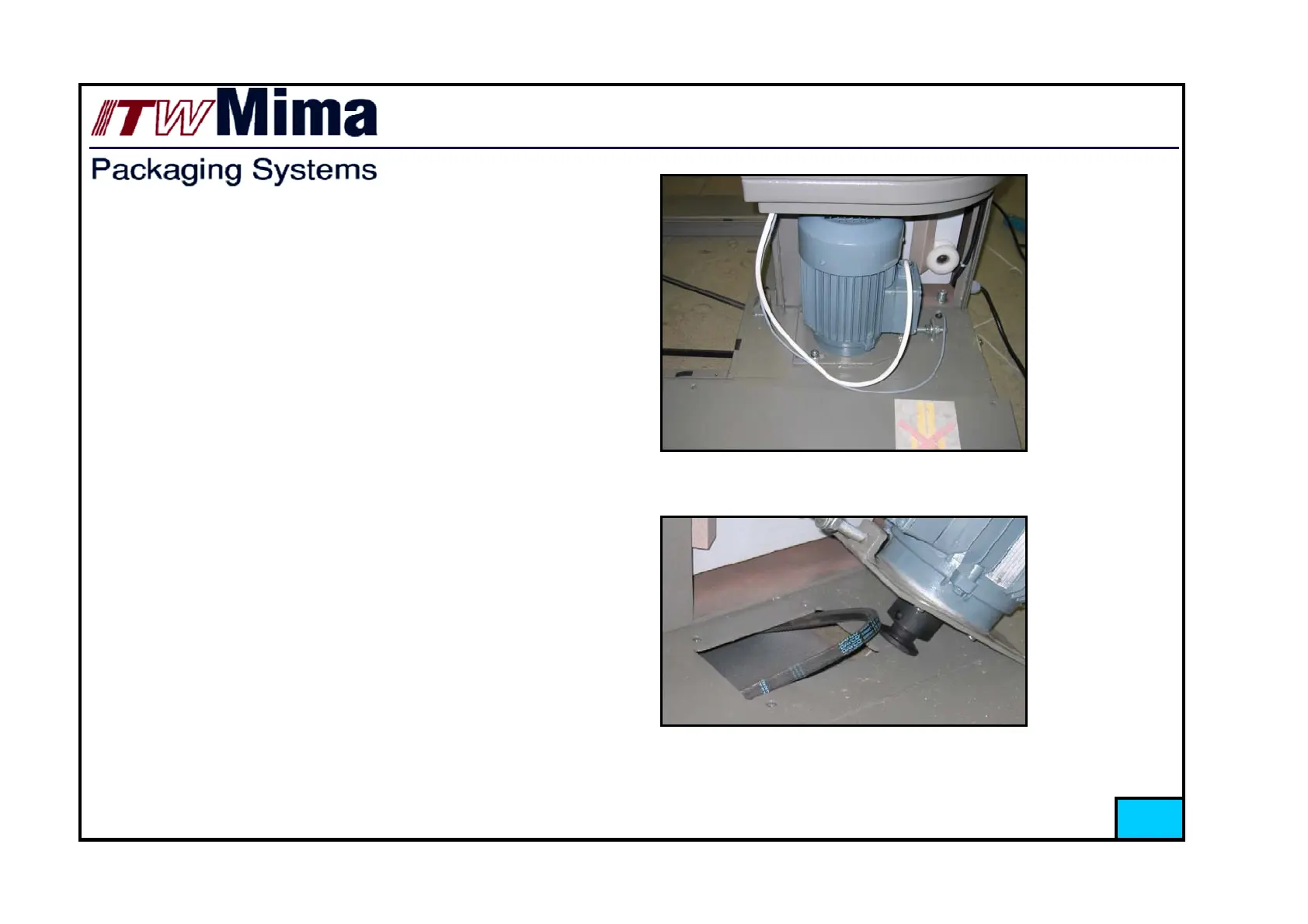

1.3.6. Changing the V-belt and transmission pulley bearing
Before replacing of V-belt is possible, you must remove the roller
chain. See page 24
Phase1
Open the motor bed fastening screws (3pci) and belt tensioning nuts.
Phase2
Lift off the electric motor and motor bed
Now you can remove the old V-belt and replace it if necessary
