15
Step 3:
Mounting the furnace head

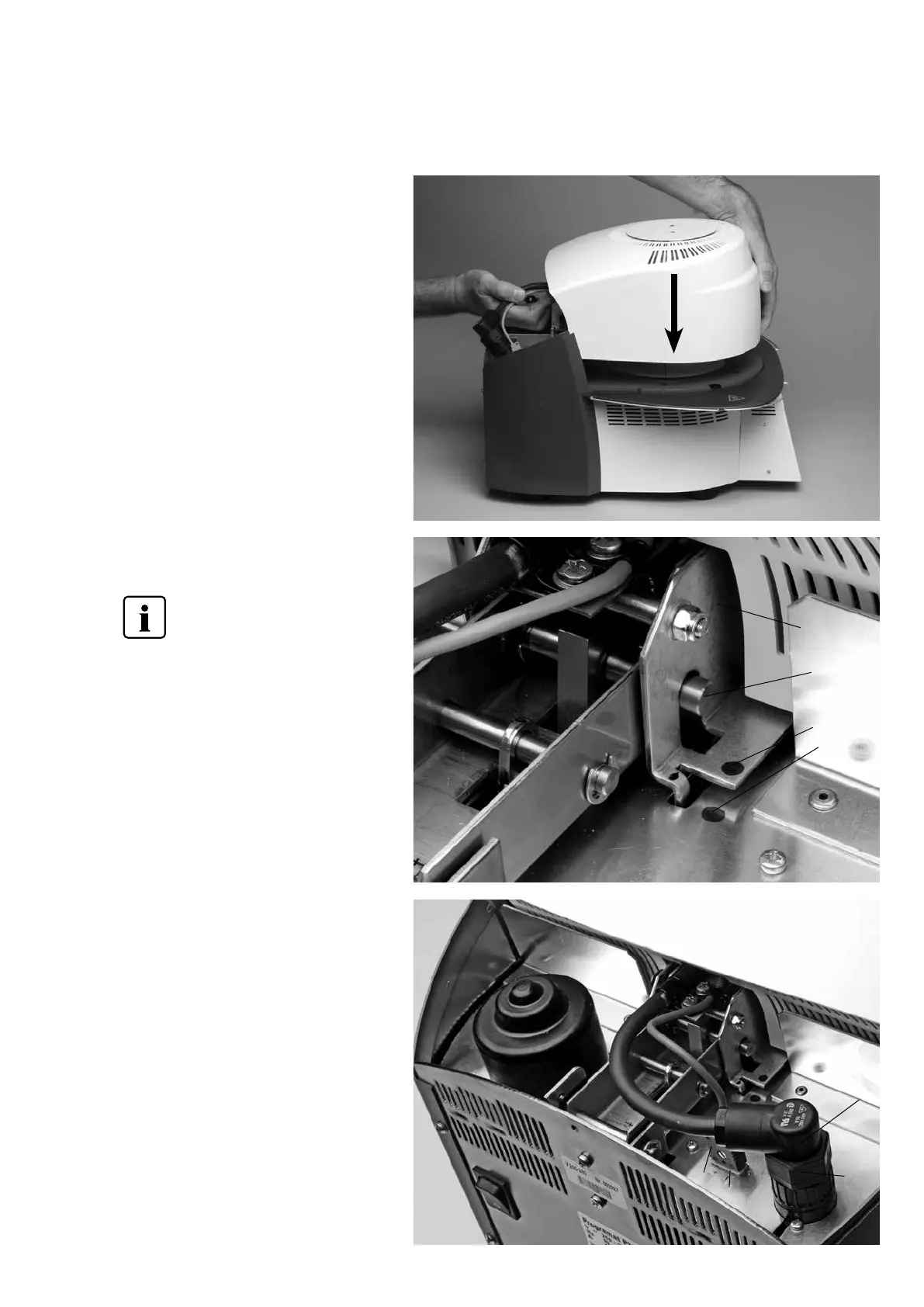

The complete furnace head is best mounted with
the rear panel of the furnace pointing towards the
user. Lift the furnace head with both hands (see
picture) and carefully position it on the furnace
head mounting.
Ensure that the furnace head mounting mark (41)
is aligned with the furnace base mounting mark
(42).
Make sure that the firing plate (5) is
not damaged by mounting the furnace
head.
Step 4:
Connections
Connect the cables of the furnace head with the
furnace base. Proceed as follows:
– Insert the thermocouple plug (26) (make sure
that the polarity of the plug is correct)
– Insert the heater plug (28)
28
27
26
30
41
42
48
49
