5.1 Introduction to the operation
5.1.1 Control unit
The Programat P710 is equipped with a widescreen colour display. The furnace can be intuitively operated by means of the
membrane-sealed keypad and the touch screen. The touch buttons can be actuated by slightly tapping the display with the
fingertip and the furnace runs the desired function.

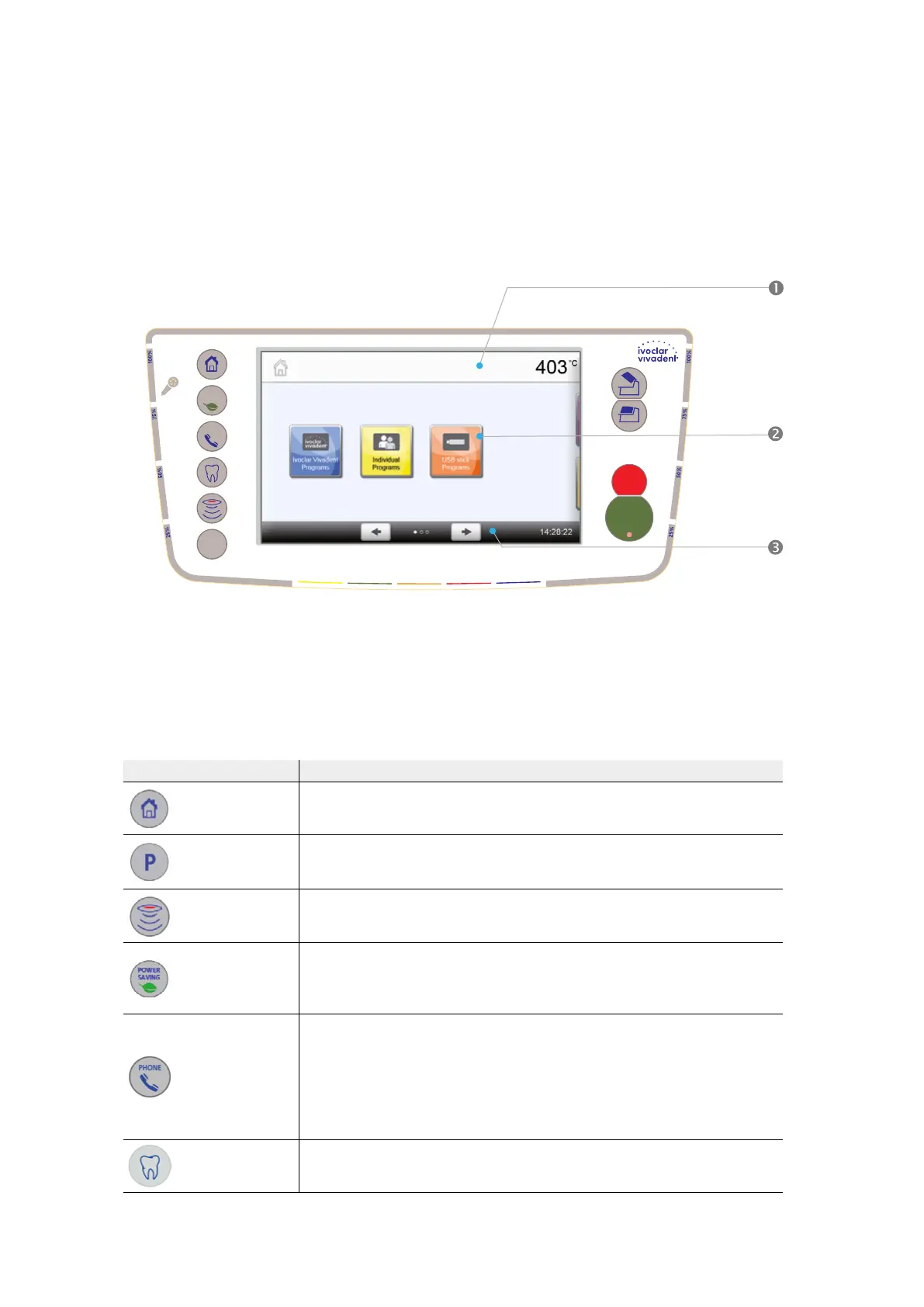

The user interface in the display is divided into three sections:
1. Information bar (e.g. indication of the current furnace temperature, the selected program, etc.)
2. Main screen (e.g. editing firing programs, changing the settings, etc.)
3. Navigation bar (e.g. scrolling, scrolling in higher levels, calling up favourite programs, etc.)
5.1.2 Description of the key functions
Key Function
Home
Switch to home screen (main menu)
Program key
Press once: Display of the currently selected program
Press twice: Switch to the program selection via numbers
IRT key
With this key, the infrared image of the object can be displayed during the closing
process.
Power-saving key
Power-saving function activated (only possible with the furnace head closed and the
furnace on idle). The display shows the power-saving icon. Pressing any key ends the
power- saving function.
Phone key
– If the furnace is not yet connected to a mobile phone, pressing this key results in the
Bluetooth settings being displayed.
– If the furnace is already connected to a mobile phone, pressing this key results in the
mobile phone menu being displayed.
– During an active phone call, this key can be used to fade the mobile phone screen in
or out.
Digital Shade Assistent key
The Digital Shade Assistant (DSA) can be started and ended with this key.
