ECG DATA STORAGE AND TRANSFER
32 Model 7600/7800 Operation Manual
11.0 ECG DATA STORAGE AND TRANSFER
11.1 ECG Data Transfer Using the USB Port (Model 7800 Only)
The Model 7800 has a USB port that allows the user to connect a USB memory stick and retrieve up to 200 ECG
events and measured impedance data stored in the monitor.
ECG data is stored in the monitor’s memory when the X-RAY signal from the CT scanner becomes active. The
ECG data storage stops 10 seconds after the X-RAY signal becomes inactive.
ECG Data Stored (1 event):
10 seconds prior to X-ray, during X-Ray, and 10 seconds after X-Ray
The ECG data can be downloaded to a memory stick device (1GB minimum) by following these steps:
1. Plug a USB memory stick into the USB port on the side of the monitor.
2. From the [OPTIONS MENU], press the [USB MENU] touch key.
3. Press [COPY TO USB DRIVE] touch key.
4. When all the data has been downloaded on to the memory stick, press [CLEAR MEMORY] to delete the
ECG data from the monitor memory or press MAIN MENU to return to the main menu.

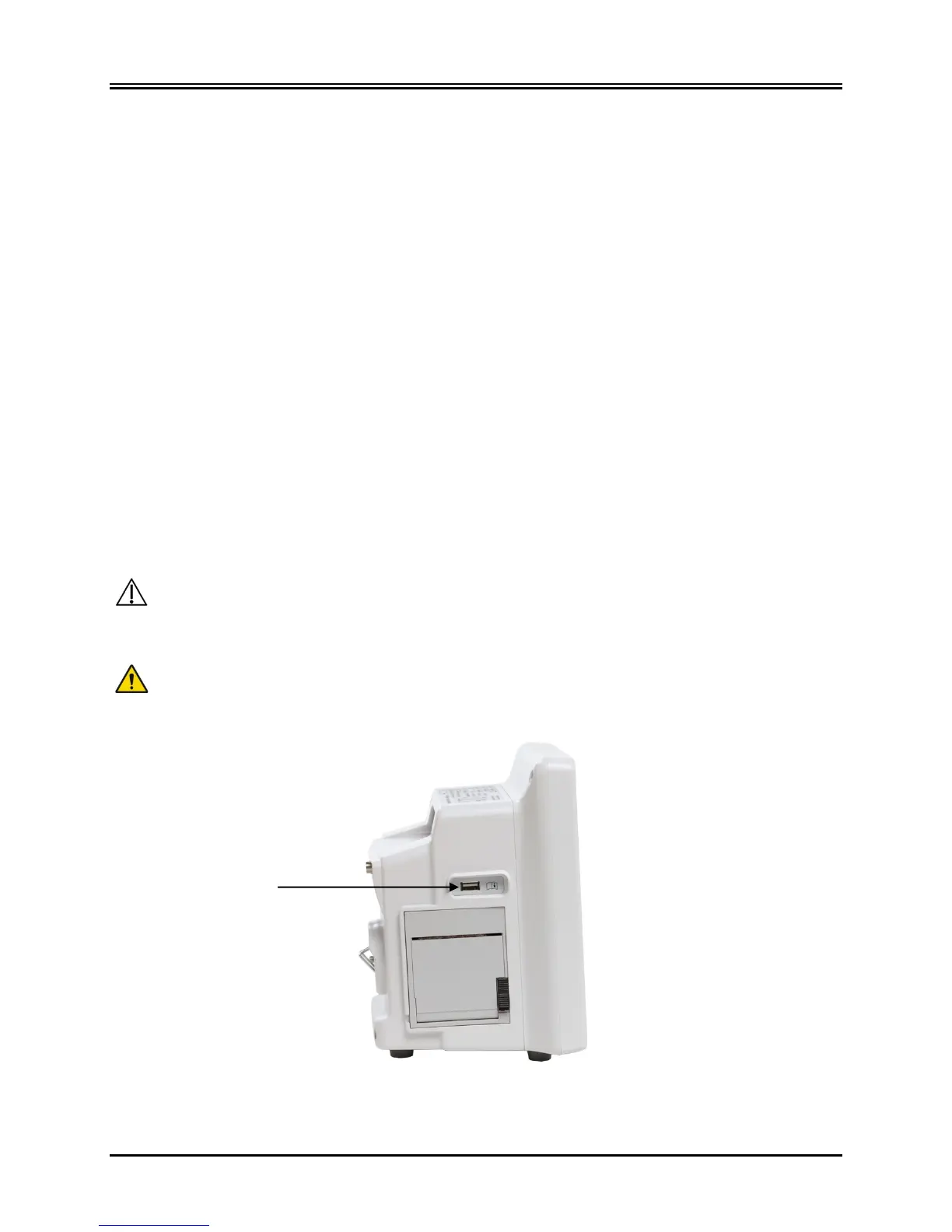

11.2 USB Port
CAUTION: The Model 7800 USB port is used only for the transfer of internal data to an external media
using a standard USB type memory drive (memory stick) with a minimum capacity of 1GB. The connection of any
other type of USB device to this port could result in damage to the monitor.
WARNING: The USB memory device used with this port MUST NOT BE POWERED FROM AN
EXTERNAL SOURCE.
