Approved Installation Manual for the Experimental Report No 104
EDM-350 Page 22 of 46 Rev A
Engine Data Management System Date 7-10-2021
19.4.1 After you have collected your data
After you have collected your data…Entering / Editing Fuel Level Calibration Data
The Fuel Table Editor is a spreadsheet type format allowing you to easily see the volume and related calibration
values side by side. You can easily navigate through the cells to enter values.

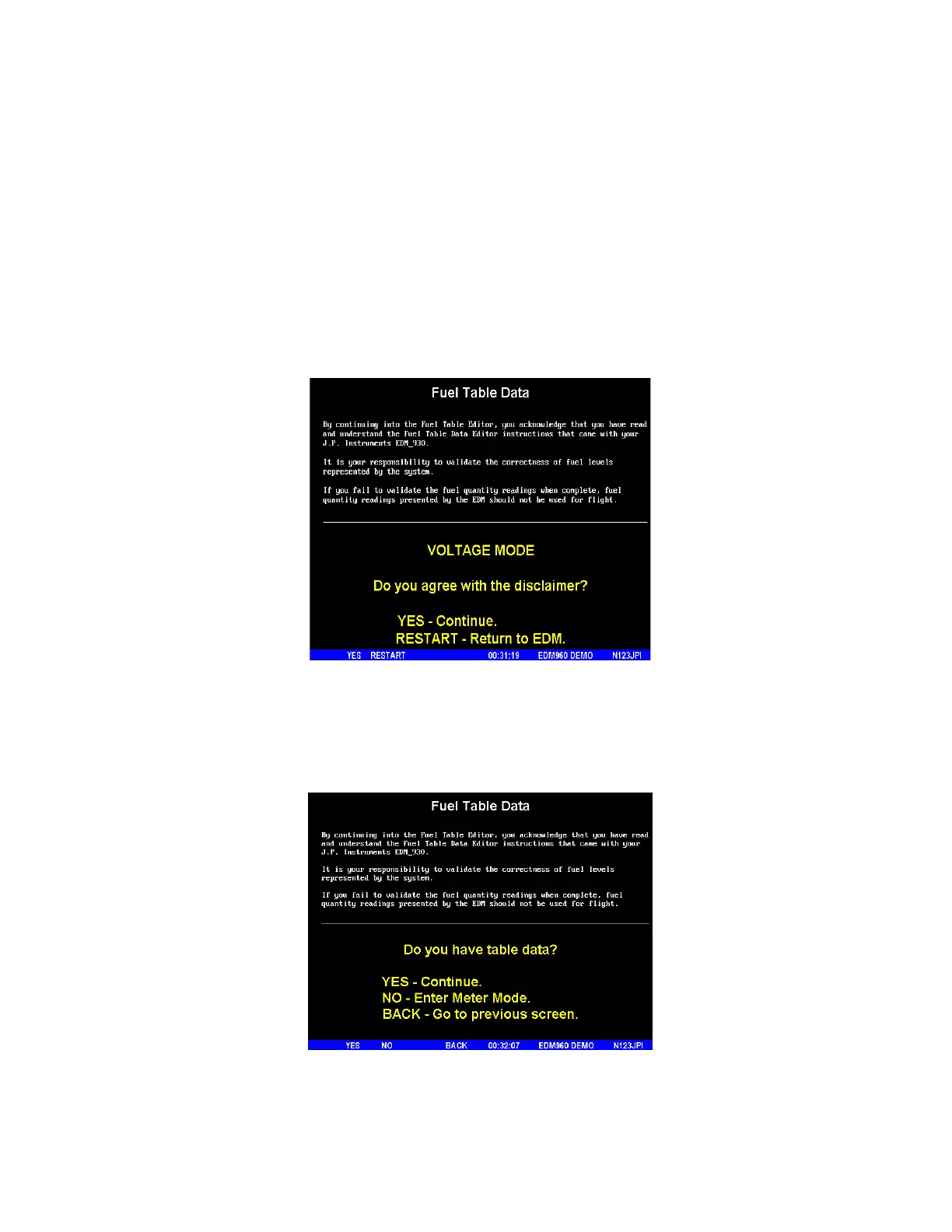

1. With power off, hold in Button 3 (Button 1 being far left) and then turn on power. Wait until you see
‘Do you agree with the disclaimer?’. Tap YES if you agree and wish to continue.
2. Tap YES when you see ‘Do you have table data?’.
