For Your Safe Flight Page 7

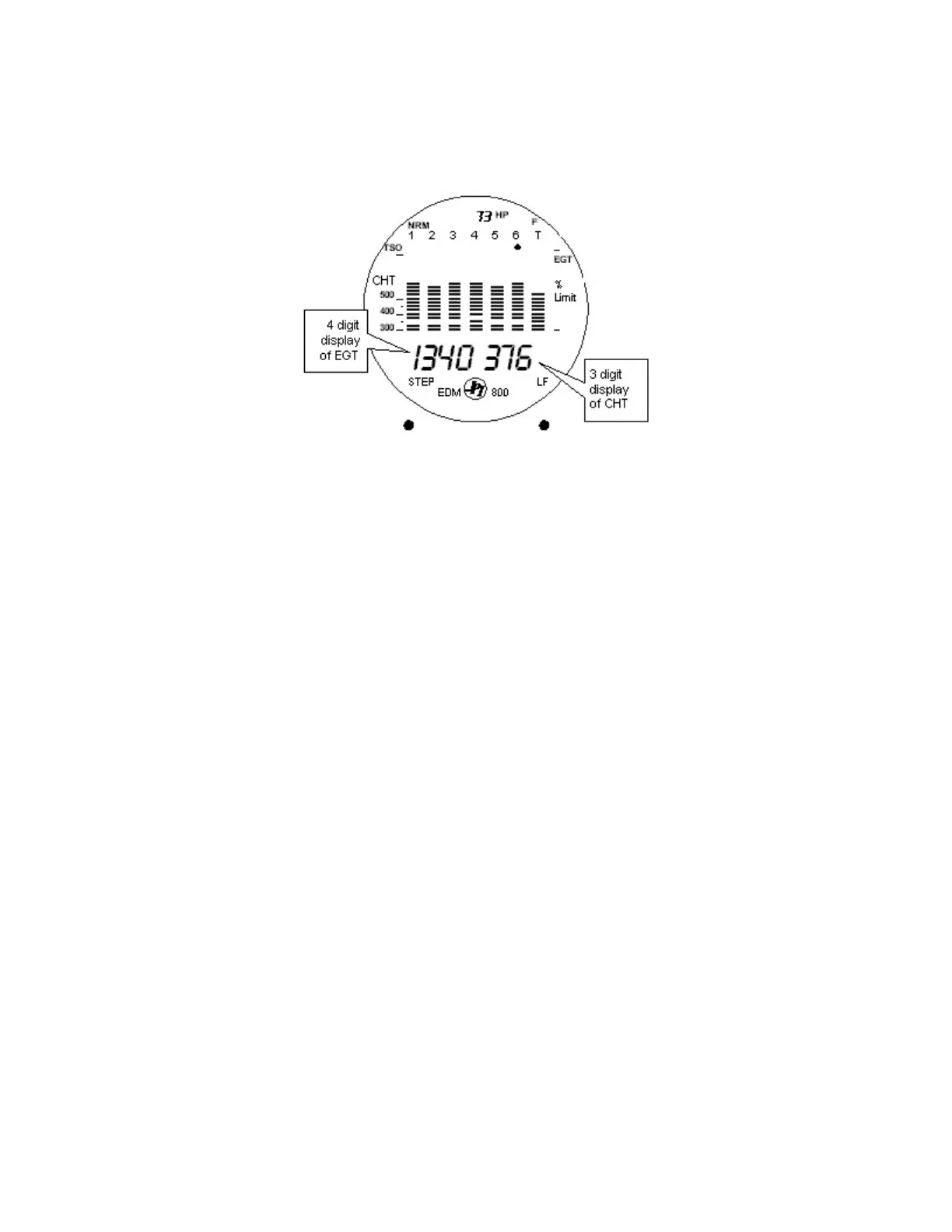

EGT and CHT
When the dot index is beneath a cylinder number, 1 through 6, the digital
display shows the EGT on the left (four digits) and the CHT on the right
(three digits). Other parameters are displayed in the digital display as
described in the subsection “Parameter Scan—Systems without Fuel
Flow Option” on page 10.
Display Dimming
The entire display panel features automatic dimming. Allow ten seconds
for the display to adjust to ambient lighting conditions.
Modes
There are three standard operating modes of the EDM: Automatic,
Manual, and LeanFind. These modes will be described in more detail
beginning on page 11. Most of the time you will operate the EDM in the
Automatic mode. When you first turn on the power the EDM starts in the
Manual mode, but will enter the Automatic mode after two minutes. The
three modes affect primarily the digital display.
Automatic Mode
Just tap the LF button, then tap the STEP button. No user
intervention is required to use this mode. Each cylinder and each
parameter value is automatically sequenced and shown in the digital
display for a few seconds.
