Page 4 Engine Data Management
compression will cause each cylinder to follow its own mixture and
temperature relationship such that one cylinder will reach peak before
another.
Section 2 - Displays and Controls
The EDM monitors engine temperatures and voltages, assists in adjusting
the fuel/air mixture, and helps diagnose engine malfunctions. There are
three components of the user interface:
• Analog display including cylinder number and index dot
• Digital display for numeric readouts and messages
• Two front panel operating buttons.
Displays
Analog Display

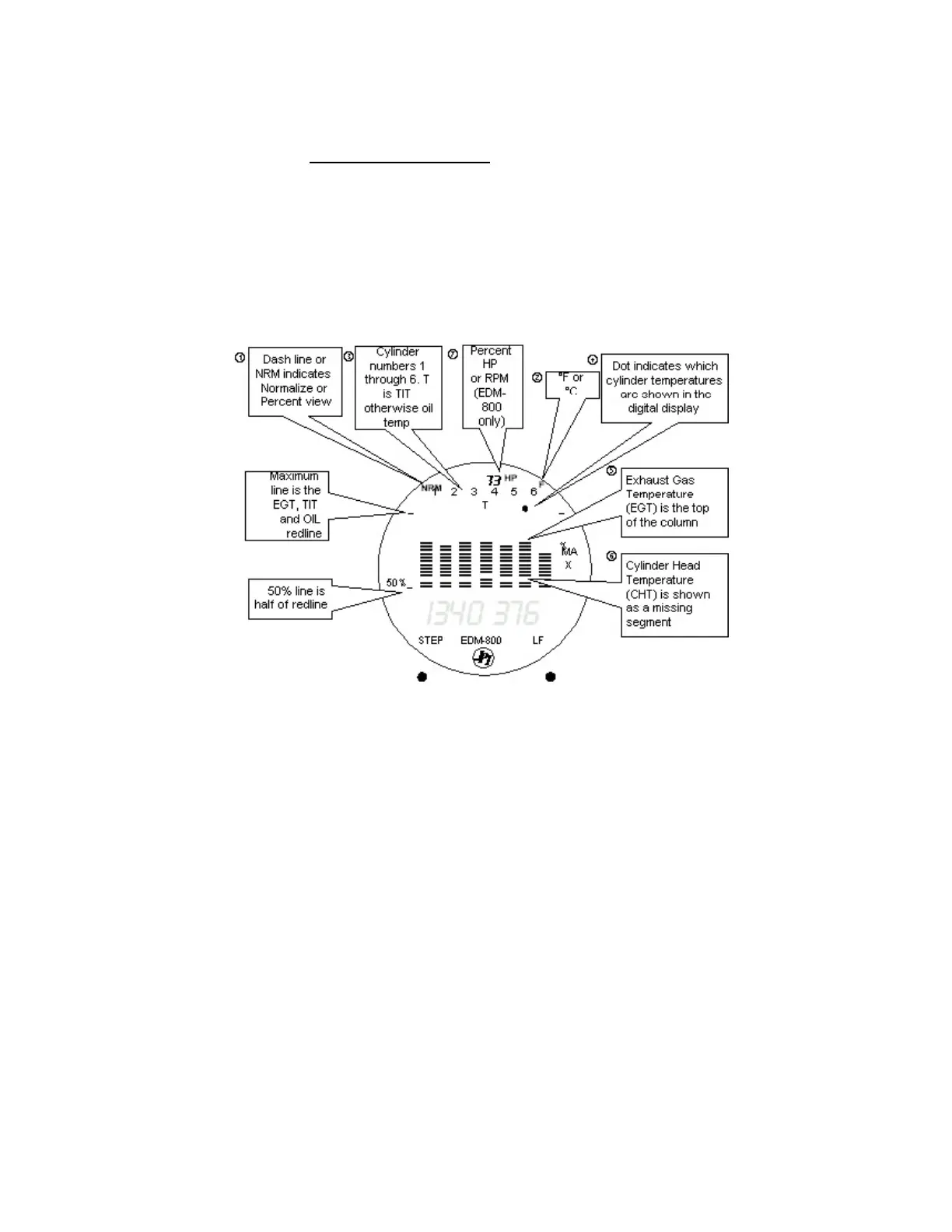

The upper half of the face of the EDM is the analog display with %HP.
The following is a description of the analog display, from top to bottom.
Numbers in circles refer to features in the above diagram.
