J2 625 - CMOS Clear; Mini PCI-E

J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
19

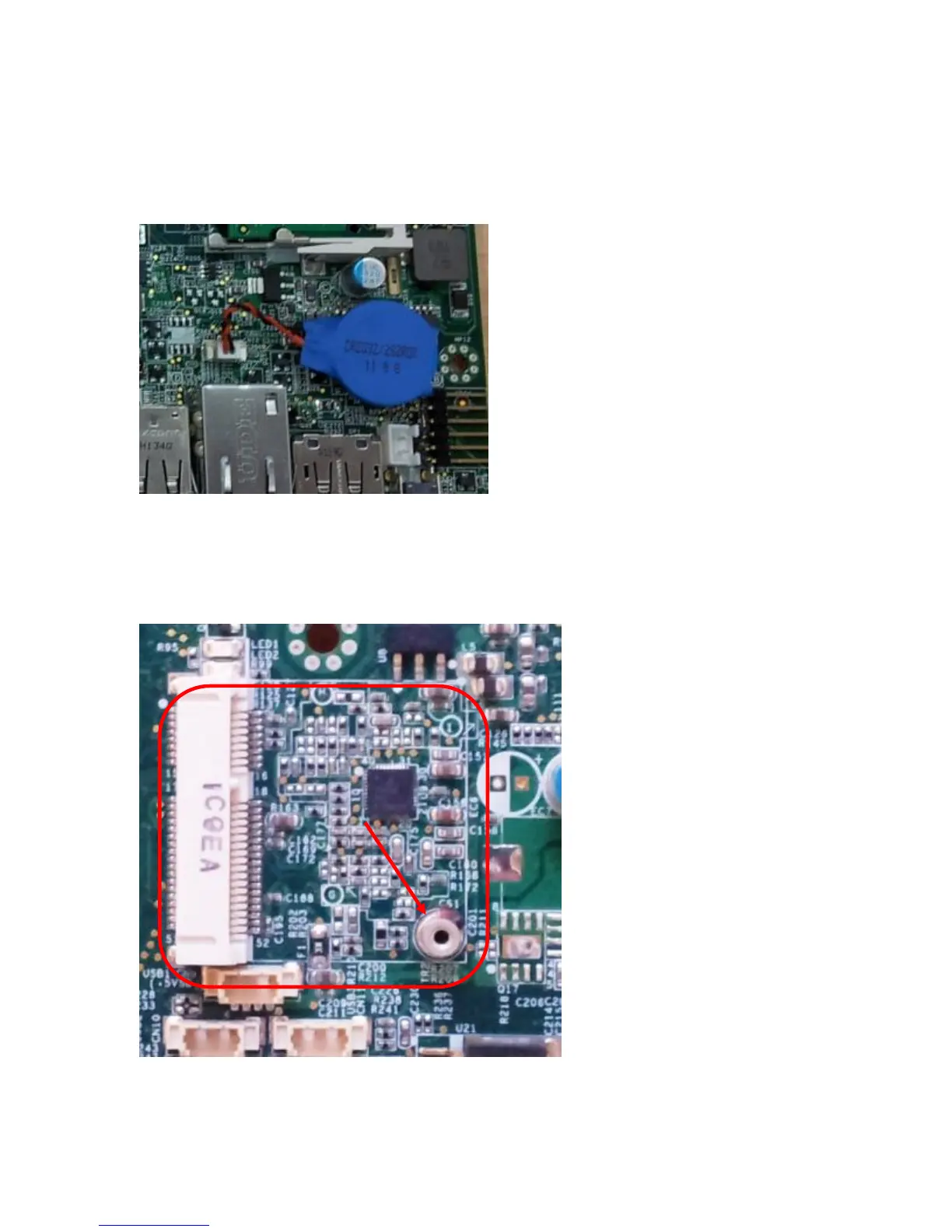

CMOS Clear
The J2 625 CMOS can be cleared by unplugging the system board CMOS battery for 30
seconds before plugging it back in.
CMOS Battery
Mini PCI-E
The onboard Mini PCI Express connector is normally used for the optional internal
802.11b/g/n wireless LAN card.
Mounting Screw
