Service
Removing the Head from the Base
The 625 is shipped with a counter top base which allows for the head to be adjusted from
0-90°.

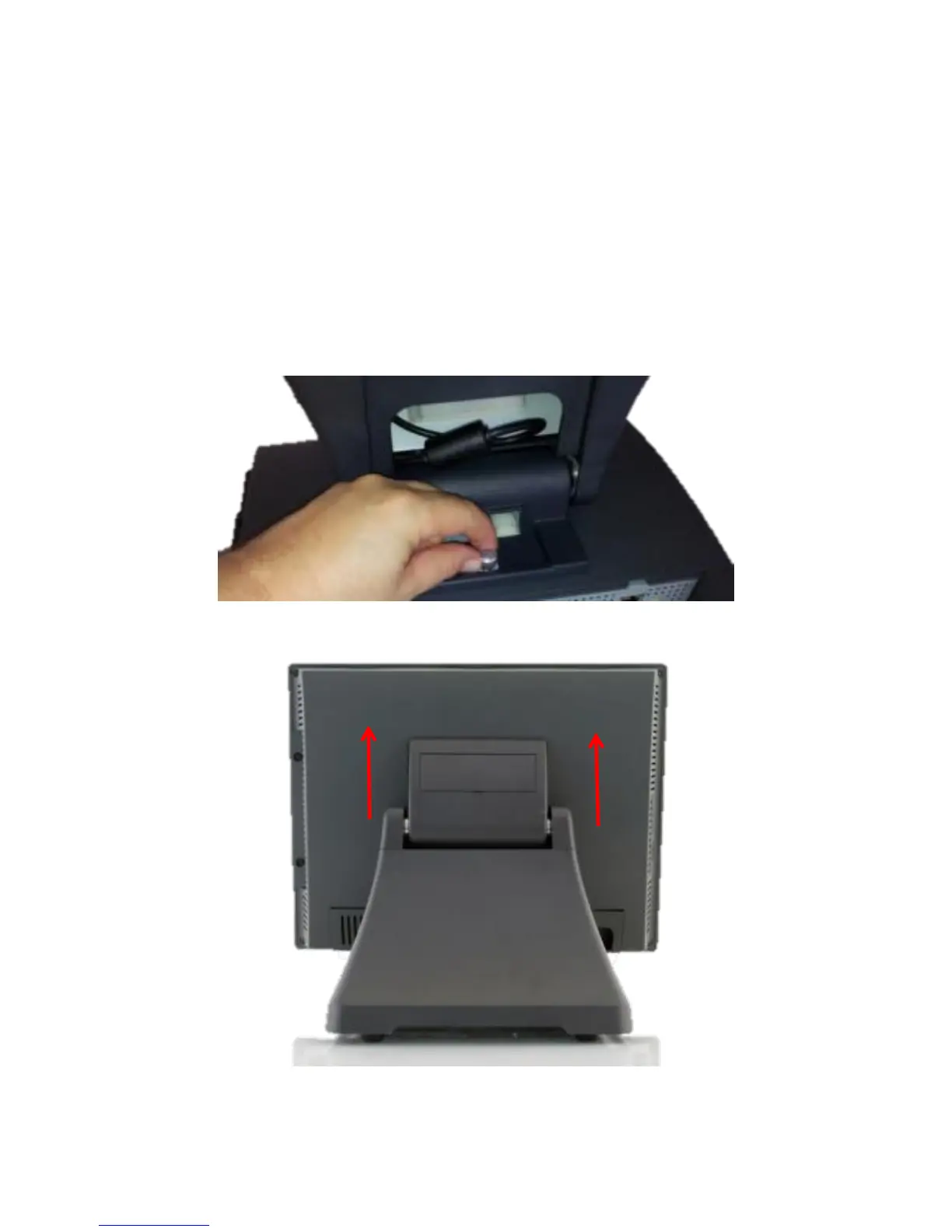

To remove the integrated head from the base, fully loosen the thumbscrew located on the
back of the unit under the hinge of the counter top base, as shown below. Then lift the
head as illustrated:
Loosen Thumb Screw
Slide Head up to remove
