J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
Changing the System Board
*Special Note: An anti-static workplace with proper grounding is required when
changing the System Board.
First remove the back cover. Then remove the 3 screws hold the drive cage in place and
remove it. Then remove the 5 screw hold the system board in place. Unplug all cables
going to the system board. Remove board. (see photo below)

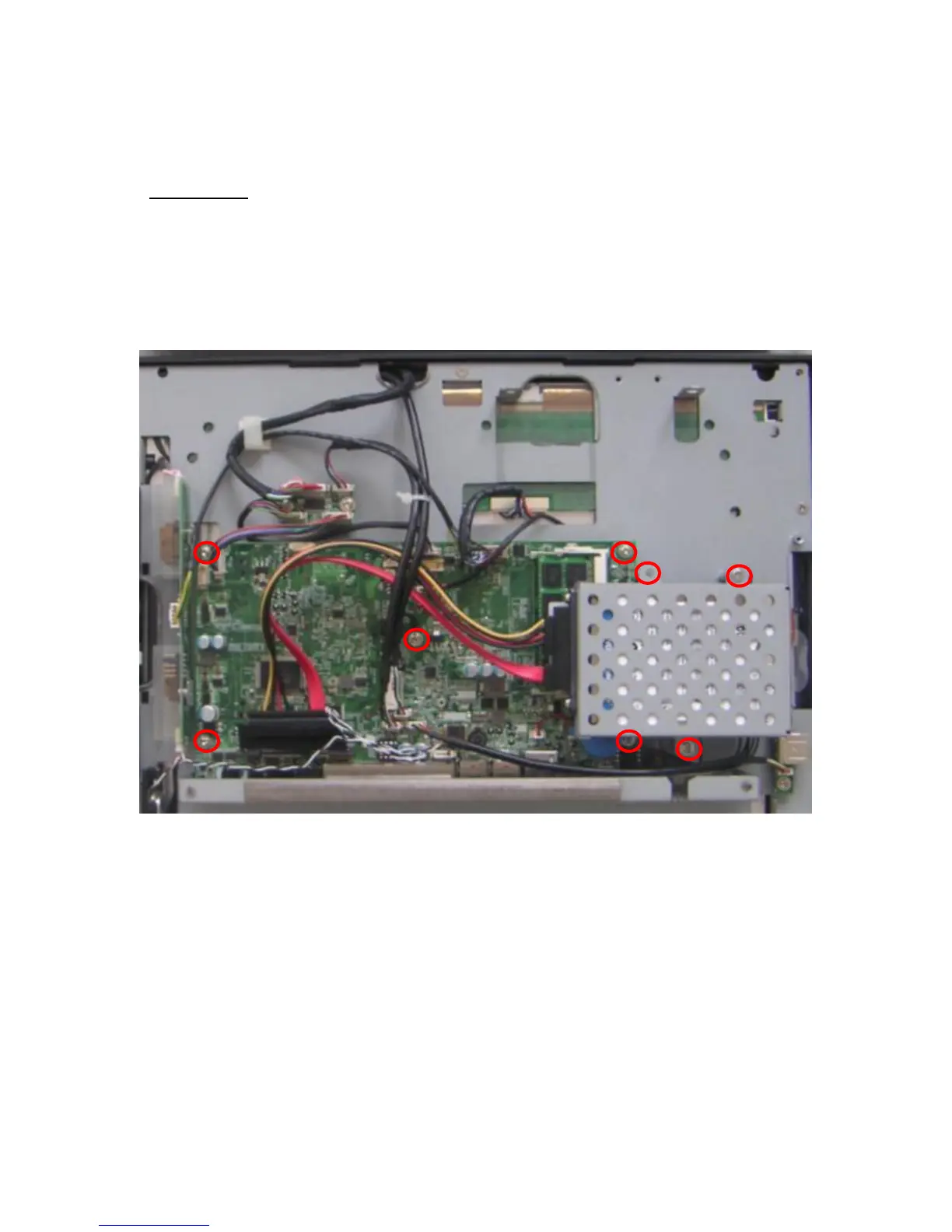

Three screws to remove System Board
