J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
Removing the Back Cover
The following steps show how to disassemble the 625 for servicing:
On a clean, protected surface, place the unit screen-side down. Remove the four cover
screws as shown. Carefully lift the back cover as shown.

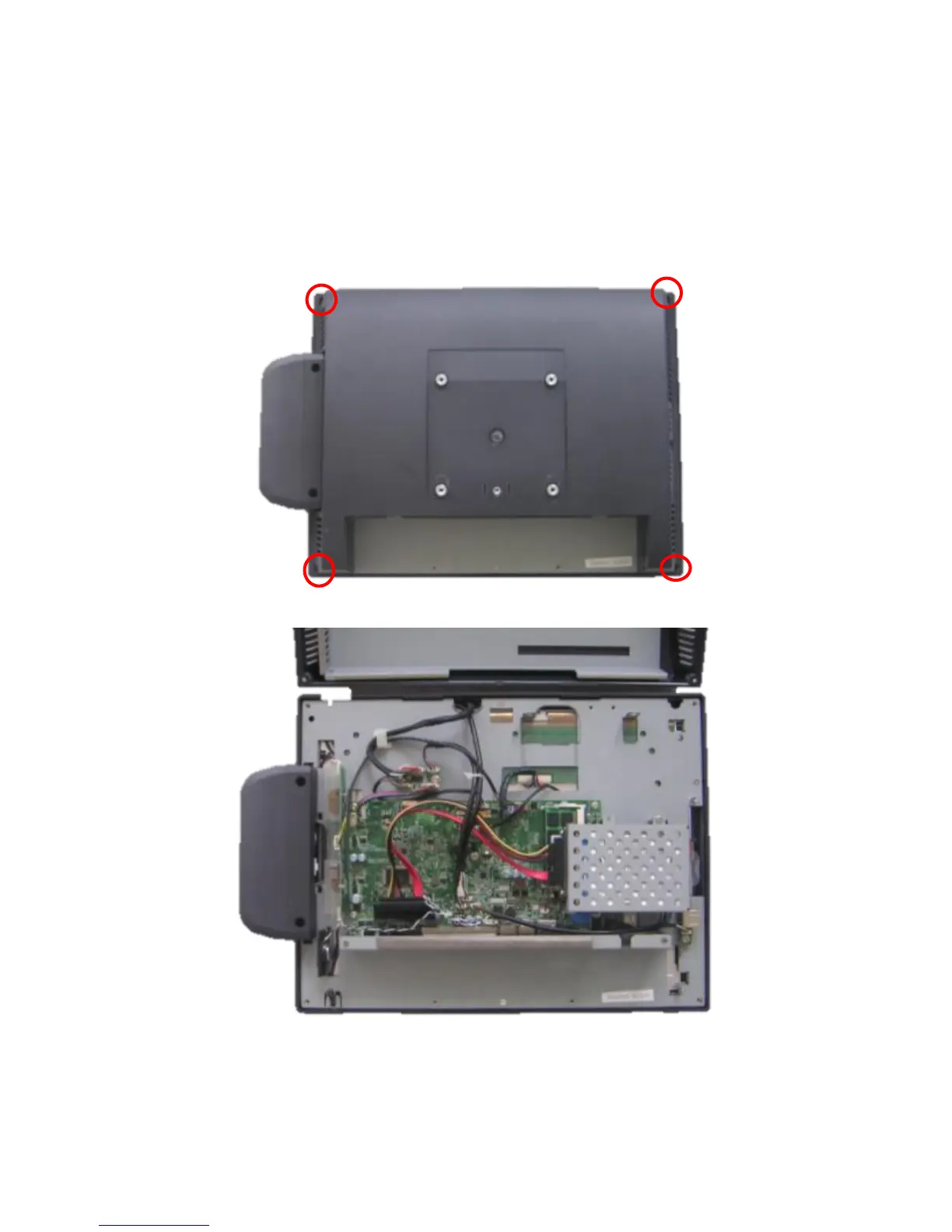

Remove four screws where shown
Carefully tilt up the back cover to remove
Note: The 625 was designed so that the internals of the unit could be accessed without
having to remove the mounting base or the mounting bracket of the unit.
