9.13 Fuel System
Required Tools:
Screwdrivers
Parts and Material:
Replacement fuel filters
Replacement flexible lines (if required)
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
 Replace fuel filters at the intervals noted in Table 13.
 Check flexible lines for condition and replace any which are hard, cracked or softened. Inspect
fittings for wear or damage. Verify correct function of tap(s) and that correct fuel tap placards
are fitted.
Note mandatory replacement requirements of Section 8.3.

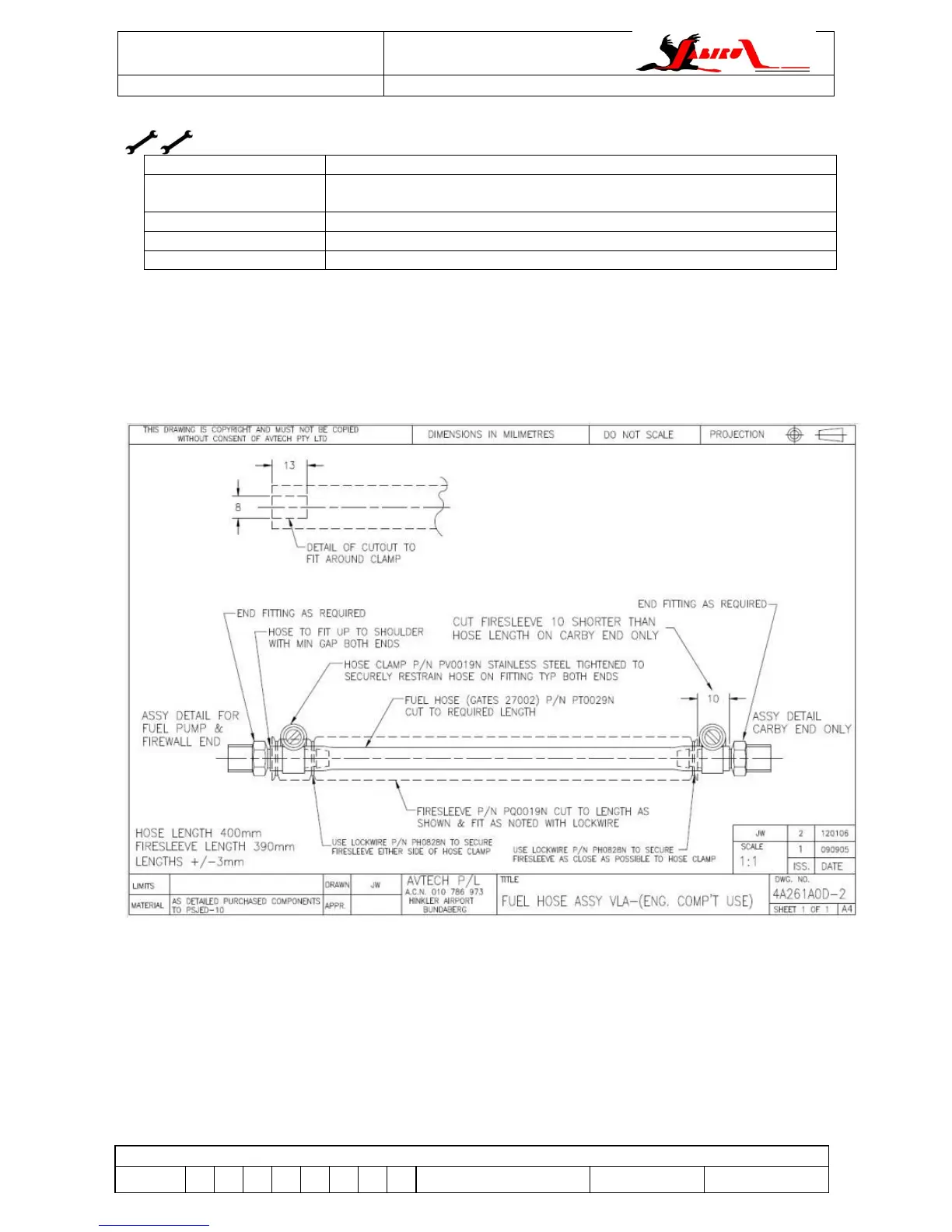

 Fire sleeves: Check for wear and correct fitment per Figure 36. Note the fire sleeve
overlapping the hose clamps and reaching to the end of the fuel hose.
Figure 36 – Fuel Hose Assembly – Engine Bay
