MIG 325,405,505
Operating manual Page 34

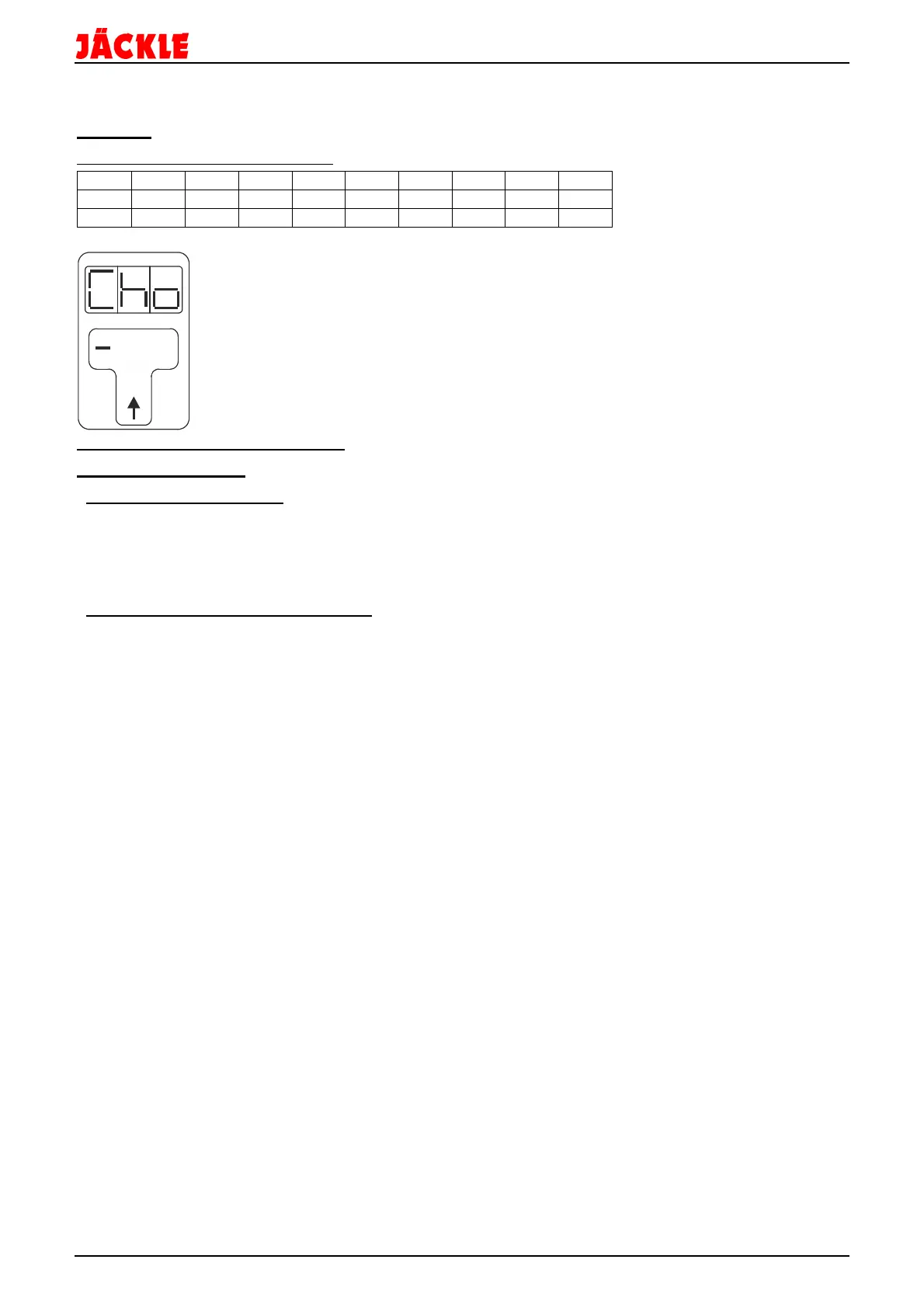

34. Welding torch with Display (option)
Warning: Switch off the machine for changing the torch !!
Functions (sorted by the control box):
Hnd Cor Mod Sts bUb PrG PoG Job Spt
MC 4 ■ ■* ■ ■ ■ ■
MC 5 ■* ■ ■ ■ ■
* This function is active during welding!
Hnd = Hand welding, Cor = Wirespeed correction (Automatic welding),
Mod = Mode (see below), Sts = Startspeed, bUb = Burn back, PrG = Pre gas time,
PoG = Post gas time, Job (see below), Spt = Spot time
Tapping on the arrow button will switch between the different functions.
The value can be changed by using the + and – buttons.
The changes are displayed simultaneously on the MC control box.
Functions with extended selections:
Function MODE (Mod):
- Mode 2-cycle / 4-cycle / spot
Display ‚Mod‘
Use the - button to switch between 2-cycle (2) or 4-cycle (4) function.
(Indication in the left display 2 or 4)
Use the + button to switch between normal operation (-) or spot welding (S).
(Indication in the right display – or S or C)
- Mode Automatic welding or Hand welding
Display ‚Mod‘
A long press of the – button will change between Automatic (A) and Hand (H) welding.
(Indication in the middle display A or H)
