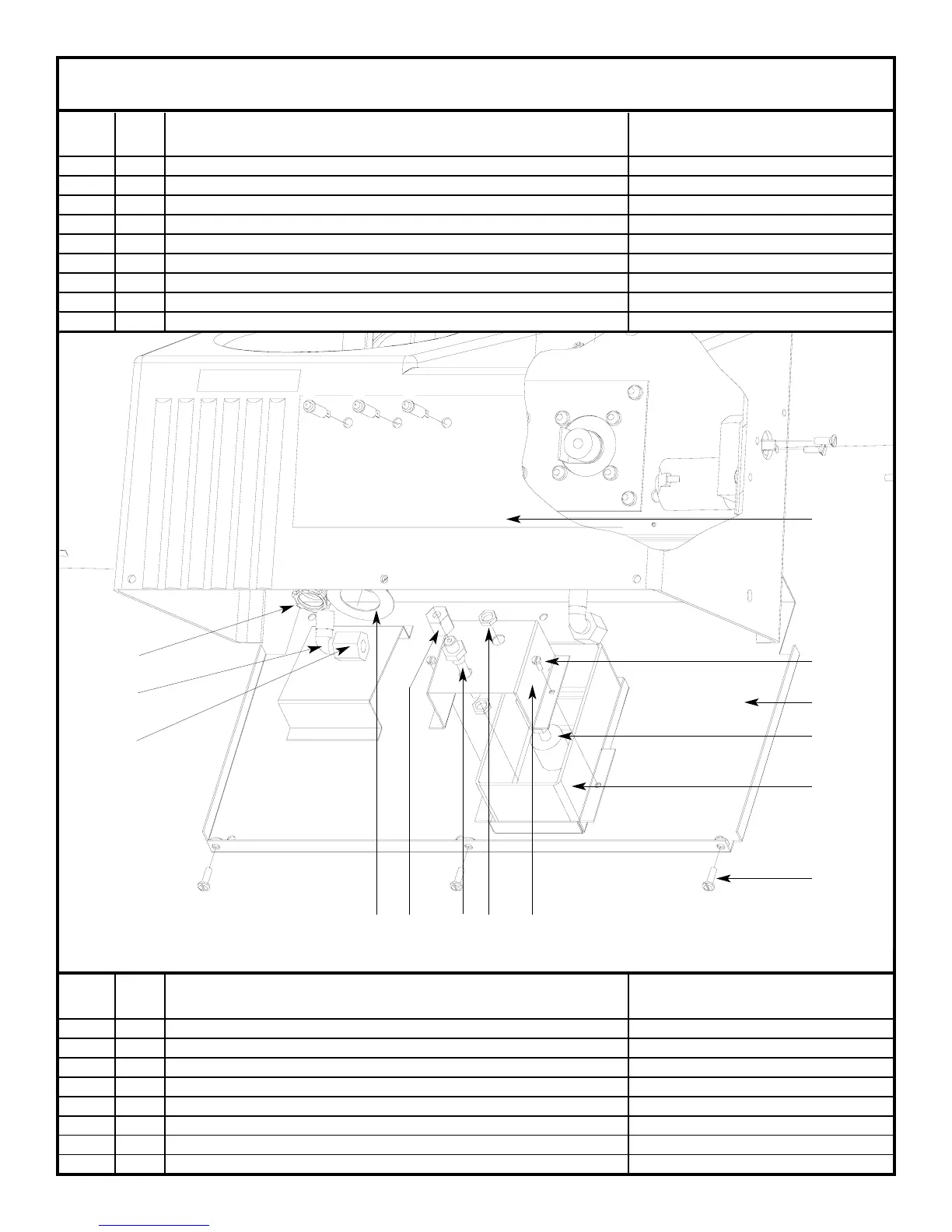

TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
37
ITEM QTY DESCRIPTION Mfg. No.
30 2 1/4" NPT Vacuum Breaker 4810-011-51-62
31 2 Elbow, 3/8" Comp. X 1/4" NPT, 90 Degrees, Brass 4730-111-58-18
32 2 Nipple, 1/4" x 6" Brass 4730-011-79-29
33 1 Plug, Hunky 5975-011-59-49
34 2 Valve, Solenoid 4810-011-48-99
35 1 Grommet, 1.25" O.D. x 1.00" I.D. 5975-111-58-01
36 1 Fitting, Liquid Tight 5975-011-49-03
37 12 Screw, 10-32 x 1/2" Long 5305-011-39-36
38 12 Lockwasher, #10 External Tooth 5311-273-03-00
39
40
41
42
43
44 & 45
47 46
49 48
50
51
53
52
ITEM QTY DESCRIPTION Mfg. No.
39 1 Decal, Dispenser Front 9905-021-50-18
40 1 Dispenser Mounting Plate 5700-031-50-12
41 2 Screw, 6-32 x 3/8" Long 5305-171-07-00
42 1 Switch, Float 5930-011-48-98
43 1 Reservoir 9515-031-48-63
44 3 Screw, 10-32 x 1/2" Long 5305-011-39-36
45 3 Lockwasher, #10 External Tooth 5311-273-03-00
46 1 Reservoir Clip 5700-021-49-26
LOWER DISPENSER ASSEMBLY
