Other components not shown:
Sensor, Detergent 6680-011-49-83
Kit, Detergent Sensor Mounting 4730-111-51-17
Gasket, 1/8” Thick 5330-021-51-08

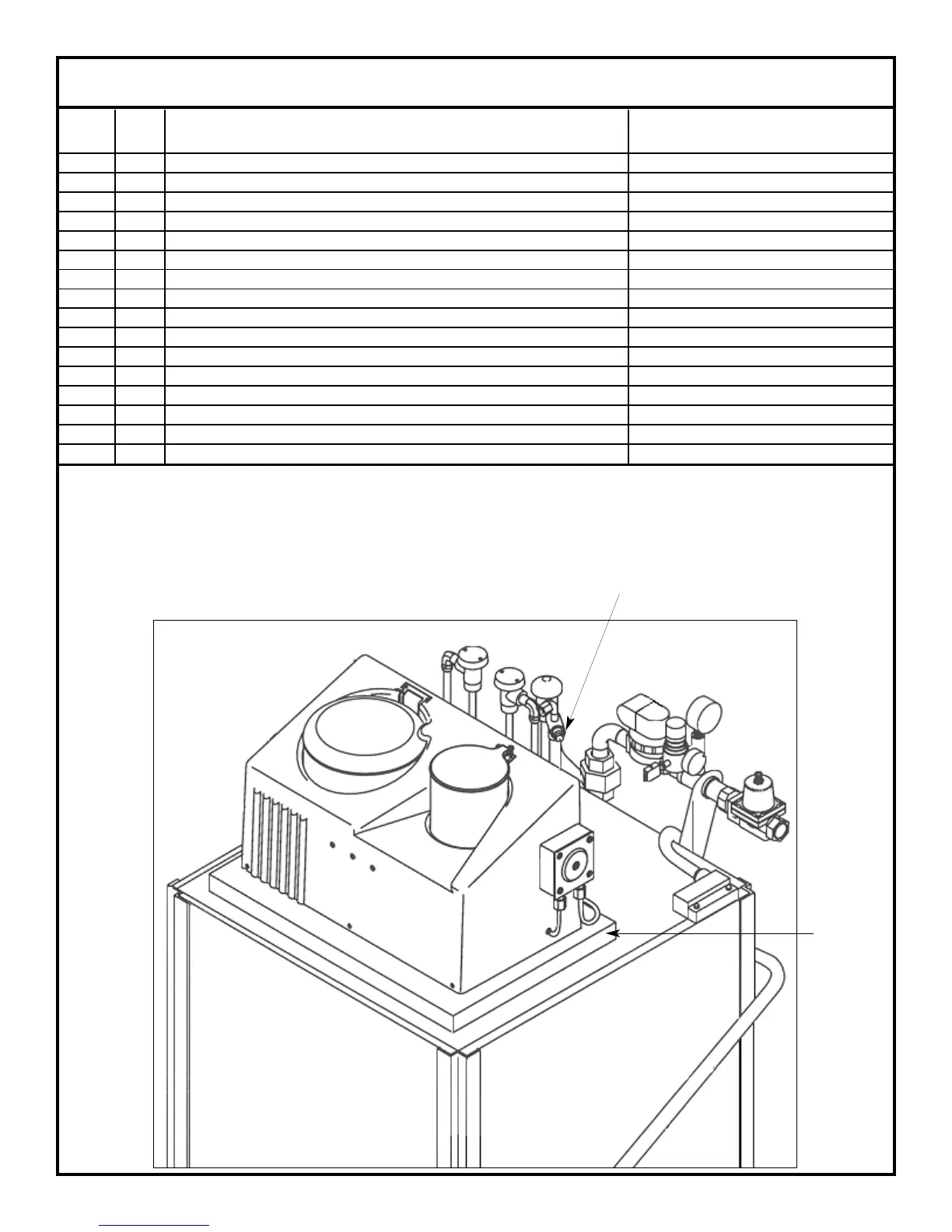

TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
38
ITEM QTY DESCRIPTION Mfg. No.
47 1 Jam Nut, 1/8"-27 5310-011-58-00
48 1 Rinse Additive Pickup Tube 5700-011-50-14
49 1 Ferrule Nut, Chemical Tube Connector 4730-609-16-00
50 1 Panel, Dispenser Sliding Cover 5700-011-51-19
51 1 Fitting, Liquid Tight 5975-011-49-03
52 1 Elbow, 1/4" NPT x 3/8" Comp. 4730-111-59-34
53 1 Insert, 3/8" Tubing P/P 4730-111-59-35
54 1 Thermal Barrier Box Assembly 5700-021-48-14
55 1 Thermal Box Top Weldment 5700-021-50-64
56 1 Thermal Box Bottom Weldment 5700-021-50-65
57 1 Foam, 1" Thick 5640-011-49-07
58 3 Screw, 10-32 x 3/8" Phillps Pan Head 5305-173-26-00
59 3 Lockwasher, #10 Internal Tooth 5311-273-03-00
60 1 Valve, Check 4820-111-51-14
61 1 Fitting, Outlet Elbow 4820-111-51-18
62 1 Nut, P/P For 1/8” Tubing 4730-011-59-45
54
55
56
57
58
59
60, 61, 62
