Jackson TempStar HH - Table Dimensions

Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

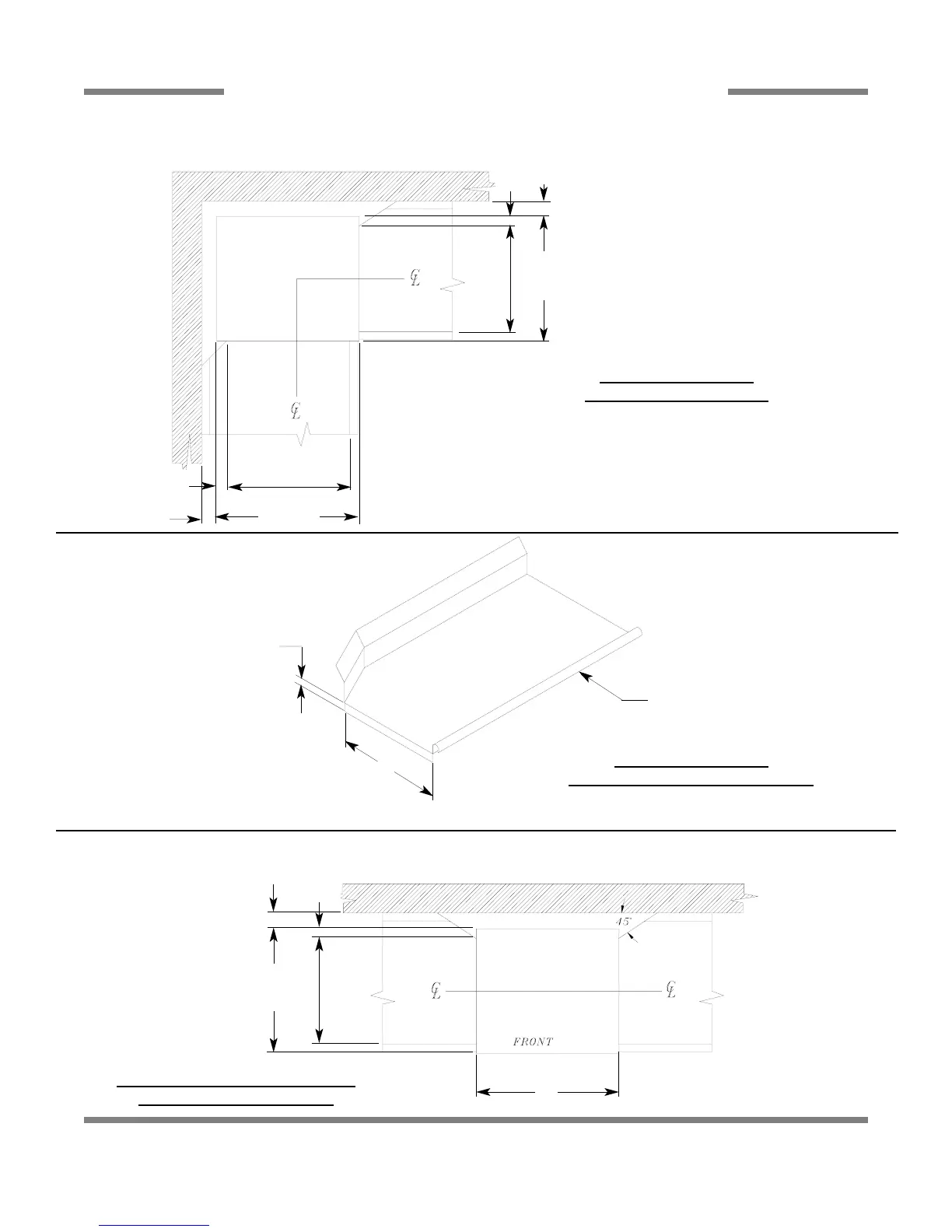

TABLE DIMENSIONS
6
TABLE DIMENSIONS
CORNER INSTALLATION
TABLE DIMENSIONS
CONNECTION TO DISHMACHINE
T
ABLE DIMENSIONS STRAIGHT
THROUGH INSTALLATION
C
OPENING
D
E
A
B
A
C
OPENING
D
C
G
F (ROLL)
A
B
D
C
OPENING
D
LETTER DIM (IN) DIM (CM)
A 4” (MIN) 10.2 CM (MIN)
B 2 1/2” 6.4 CM
C 20 1/2” 52.1 CM
D 25 1/4” 64.1 CM
E 2 1/4” 10.2 CM
F 1 1/2” 3.8 CM
G 3/4” 1.9 CM
