Jackson TempStar HH - Rinse Tank Assembly

Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A

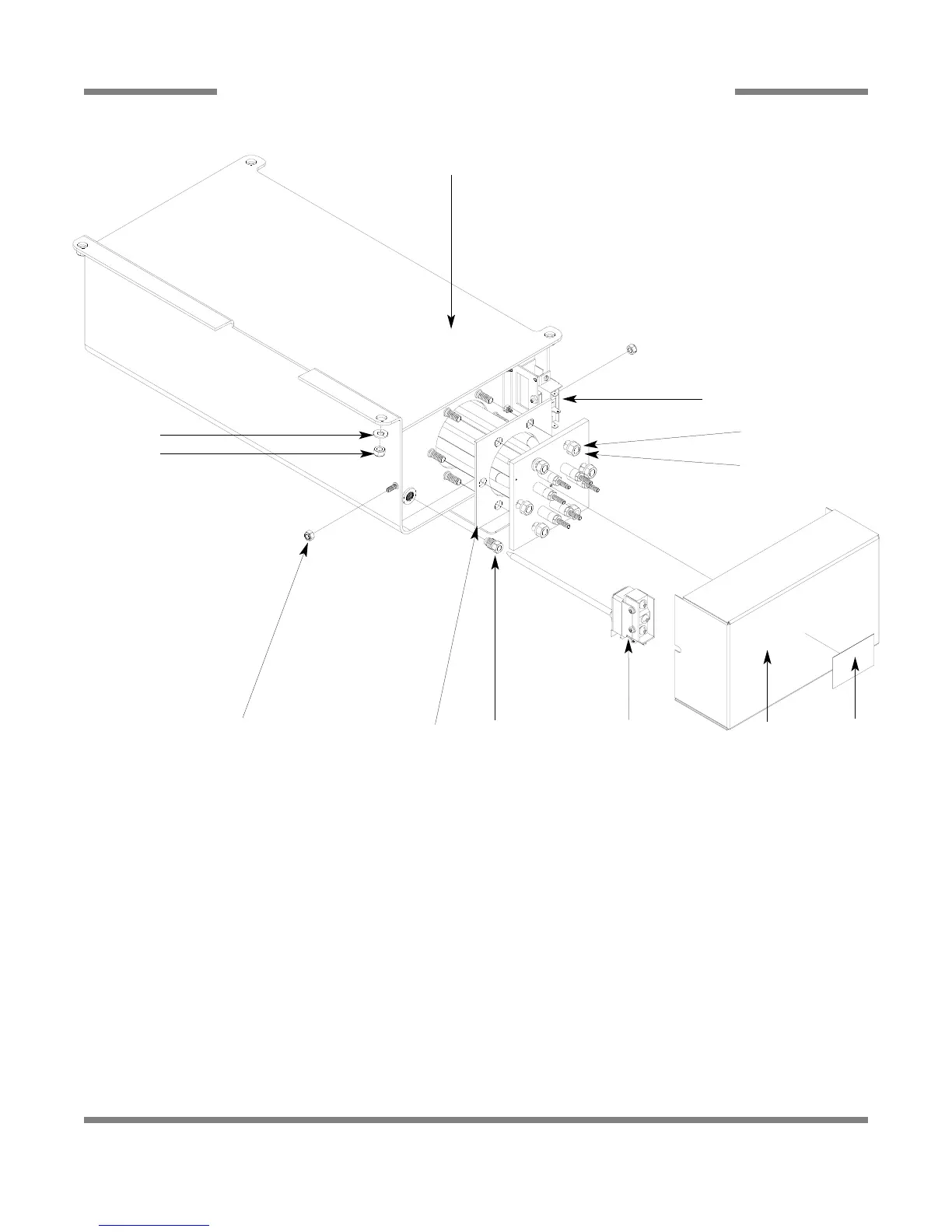

SECTION 5: PARTS SECTION
RINSE TANK ASSEMBLY
32
ITEM QTY DESCRIPTION Mfg. No.
1 1 Booster Tank Weldment 05700-002-10-19
2 2 Locknut, 10-24 with Nylon Insert 05310-373-01-00
3 2 Washer, #10 S/S Flat 05311-173-01-00
4 1 Decal, Warning - Disconnect Power 09905-100-75-93
5 1 Booster Tank Cover Weldment 05700-002-16-51
6 6 Nut, Hex, 5/16"-18 05310-275-01-00
7 1 Thermostat, High Limit 05930-011-49-43
8 1 Thermostat, Regulating with Imperial Brass Fitting 06401-011-66-55
9 6 Lockwasher, 5/16” Split 05311-275-01-00
10 1 Gasket, Rinse Heater 05330-200-02-70
11 4 Locknut, 1/4”-20 with Nylon Insert 05310-374-01-00
12 4 Washer, 1/4” S/S Flat 05311-174-01-00
4
6, 9
7
1
10
8
5
2, 3
11
12
8 4
SEE PAGE ENTITLED
“WASH HEATERS/RINSE HEATERS”.
