Jackson TempStar HH - Steam Coil Assembly

Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION

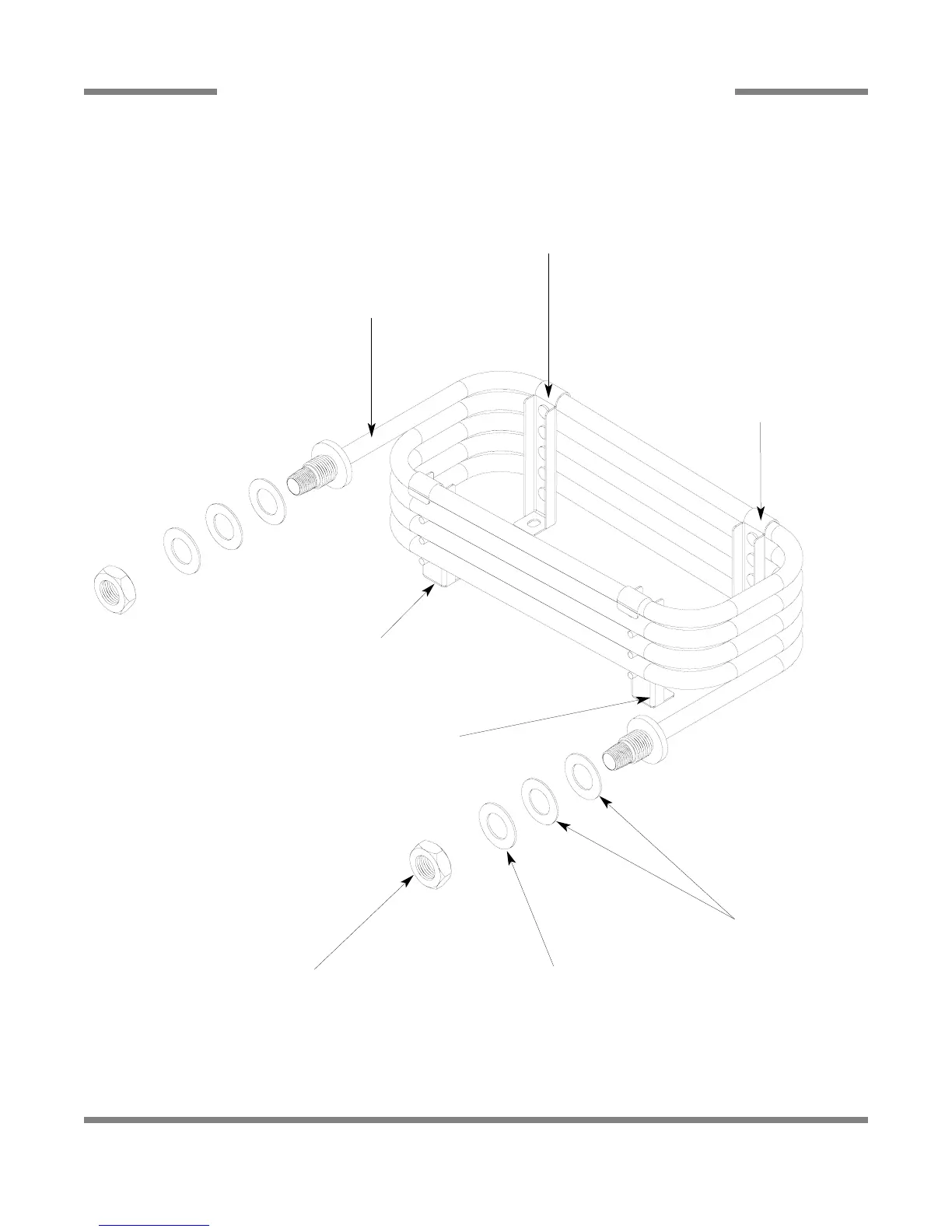

COIL ASSEMBLY
Stand C, Steam Coil Support
05700-002-08-52
Steam Coil Weldment
05700-021-41-38
Stand D, Steam Coil Support
05700-002-08-53
Stand B, Steam Coil Support
05700-002-08-51
Adapter, Steam Coil Nut
2 per assembly
05310-011-17-85
Washer, Steam Coil
2 per assembly
05700-001-17-87
Gasket, Steam Coil
4 per assembly
05700-001-17-86
Stand A, Steam Coil Support
05700-002-08-50
Complete Steam Coil Assembly
05700-002-08-62
