Jackson TempStar HH - Hood Assembly

Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION

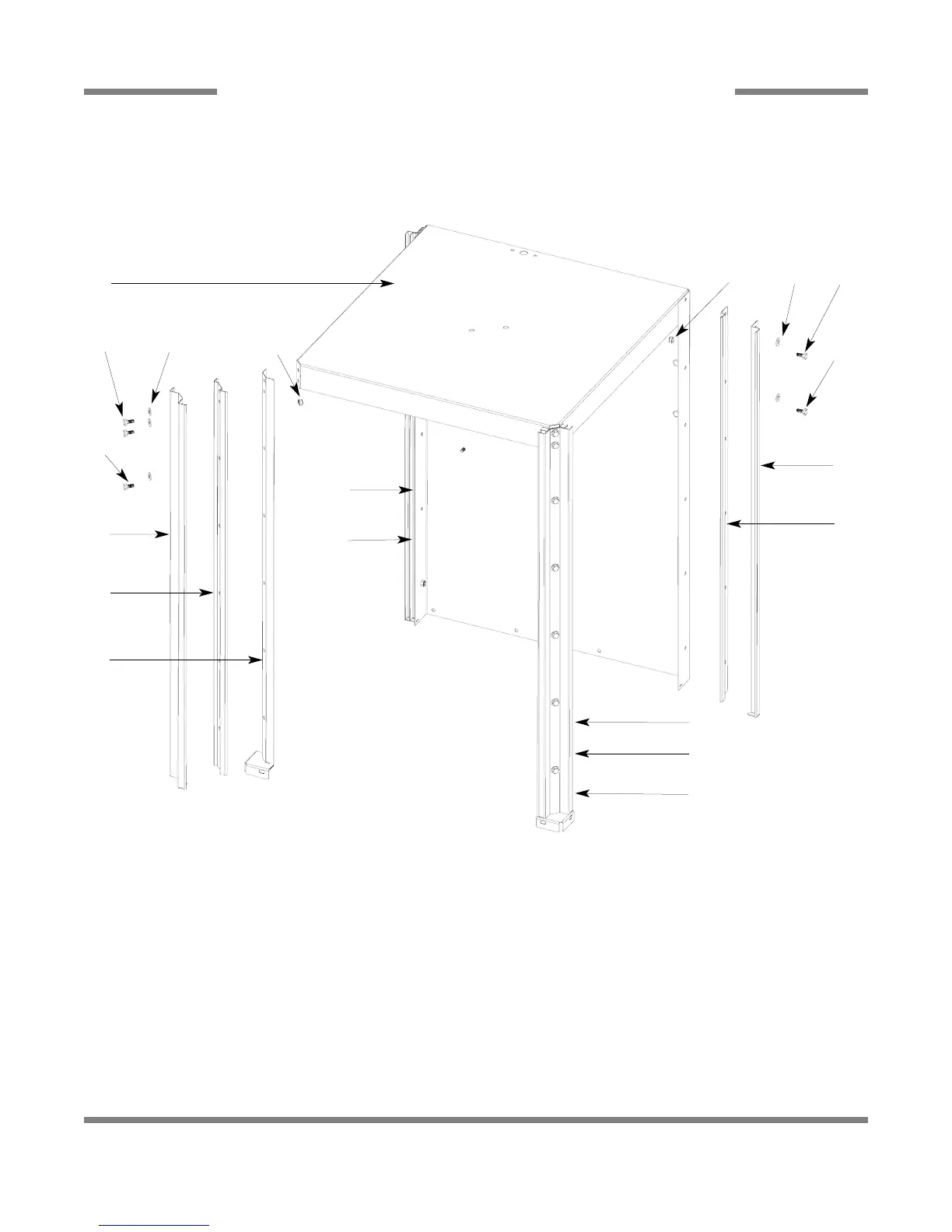

HOOD ASSEMBLY
24
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment (Side Mount Control Box) (Shown) 05700-002-01-23
1 1 Hood Weldment (Top Mount Control Box) 05700-003-52-53
2 6 Bolt, 1/4"- 20 x 5/8" Long Hex 05305-274-24-00
3 26 Washer, 1/4" ID S/S 05311-174-01-00
4 26 Locknut, 1/4"-20 S/S Hex with Nylon Inserts 05310-374-01-00
5 26 Bolt, 1/4"-20 x 1/2" Long Hex 05305-274-02-00
6 2 Right/Left Front Outer Door Guide 05700-031-76-85
7 2 Right/Left Front Inner Door Guide 05700-031-76-82
8 2 Right/Left Front Hood Support Weldment 05700-002-17-68
9 1 Left Rear Outer Door Guide 05700-031-76-34
10 1 Left Rear Inner Door Guide 05700-031-76-33
11 1 Right Rear Outer Door Guide 05700-031-76-35
12 1 Right Rear Inner Door Guide 05700-031-76-32
1
2
5
2
5
7
4
4
8
*9
*10
6
12
6
*7
*8
11
3
3
* Represents an item not shown.
