Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION
FALSE PANEL INSTALLATION
46
1. Remove the rack assembly from the dishmachine.
2. The false panel will mount inside of the dishmachine.
3. Position the panel in the dishmachine on the side to be
closed.
4. Hold the panel against the side of the dishmachine and
push upward.
5. The panel will clip in at the top, inside of the unit.
6. The holes in the false panel will line up with the rack
assembly holes.
7. Re-install the screws for the rack assembly which will
secure the false panel to the unit.
8. Re-assemble the rack track in an “L” shape for a corner
operation.

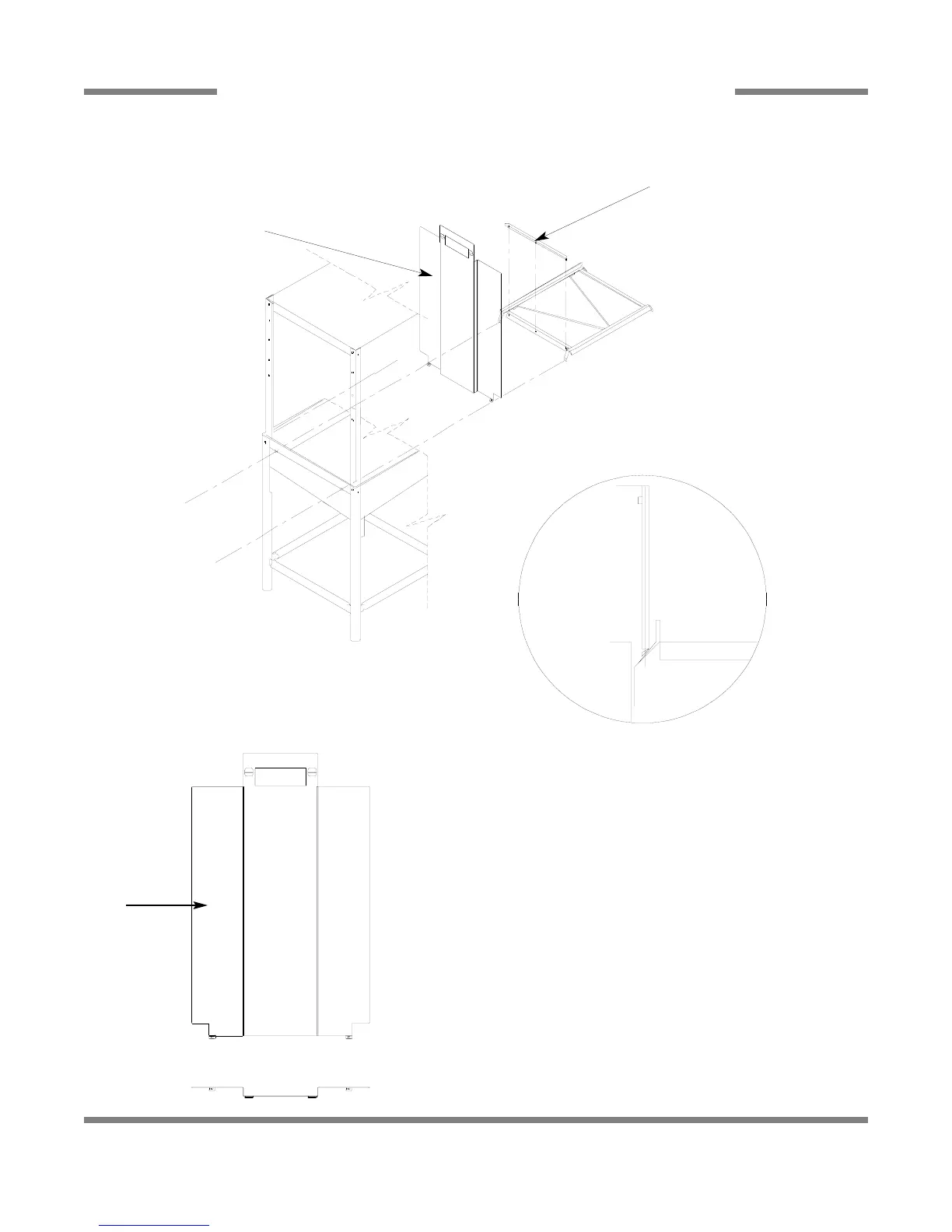

Bottom of False Panel
Insert this
side first.
False Panel Positioned in unit.
Rack rail removed and reposi-
tioned for a corner operation.
False Panel
05700-002-52-54
Kit, False Panel with
Mounting Hardware
05700-002-52-89
