Jackson TempStar HH - Incoming Plumbing Assembly (Tempstar HH NB)

Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION

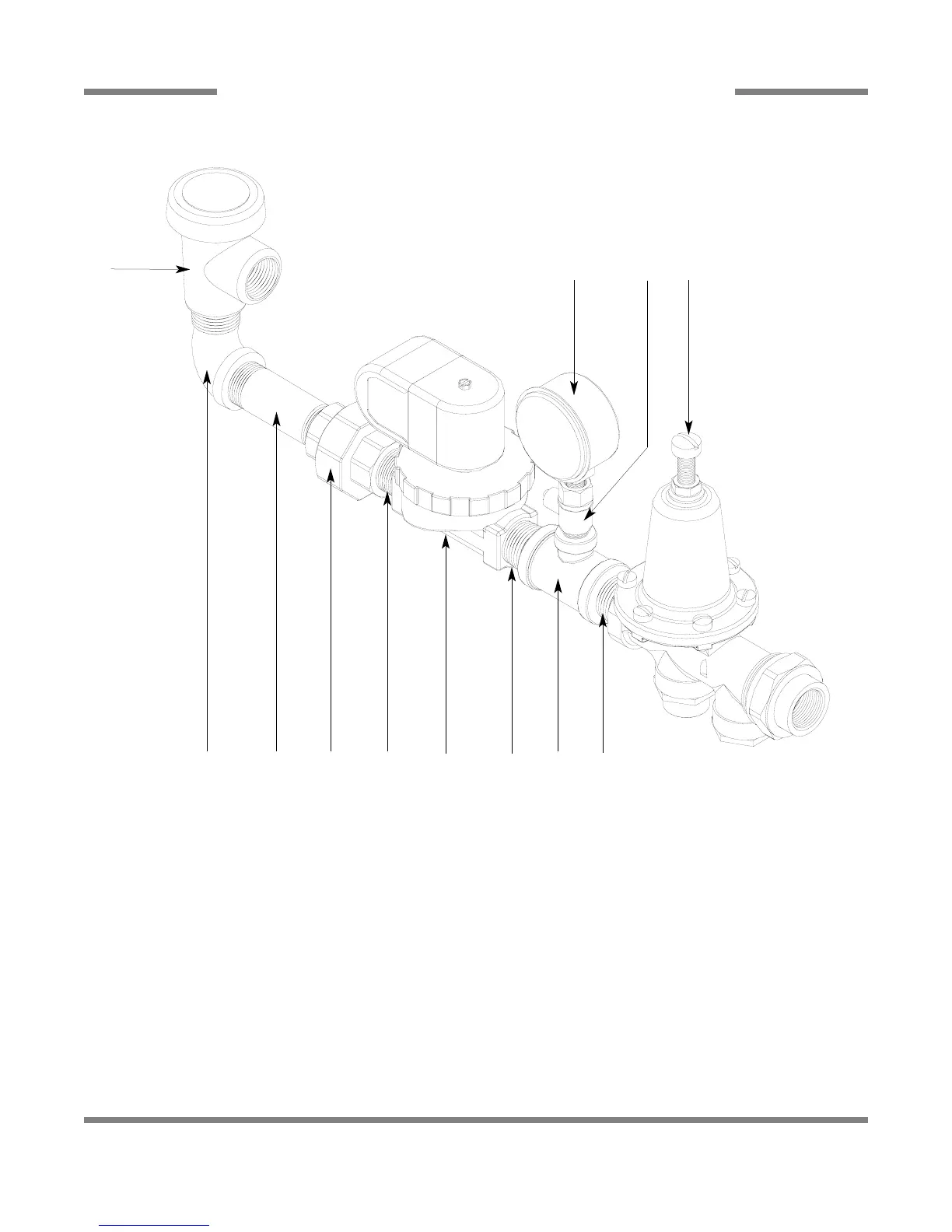

INCOMING PLUMBING (TEMPSTAR HH NB)
38
ITEM QTY DESCRIPTION Mfg. No.
1 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
2 1 Elbow, Brass, Street, 3/4" NPT 04730-206-04-34
3 1 Nipple, Brass, 3/4" NPT x 3" Long 04730-011-38-29
4 1 Union, 3/4" NPT, Brass with O-ring 05700-002-63-79
5 3 Nipple, Close, Brass, 3/4" NPT 04730-207-34-00
6 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
7 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
8 1 Pressure Gauge, 0-100 PSI 06685-111-59-66
9 1 Valve, Ball, Bronze, 1/4" NPT 04810-011-72-67
10 1 Water Pressure Regulator 06685-011-58-22
2
3
4 5 6
7
5
5
81 9
10
