Tempstar HH Series Technical Manual 7610-002-23-32
Issued: 09/14/2007 Revised: N/A
SECTION 5: PARTS SECTION
TUB ASSEMBLY (CONTINUED)
28
ITEM QTY DESCRIPTION Mfg. No.
1 1 Tub Weldment 05700-002-01-25
2 1 Rack Assembly 05700-002-01-00
3 2 Bulk Head Plug 04730-609-05-00
4 1 Gasket 05700-111-35-03
5 1 O-ring 05330-400-05-00
6 4 Bolt, Hex 3/8”-16 x 1 1/4" Long 05305-276-10-00
7 1 Lower Wash Manifold Weldment 05700-031-46-00
8 1 Suction Strainer Weldment 05700-002-16-13
9 1 Suction Strainer Bracket 05700-002-18-28
10 8 Locknut, 1/4"-20 with Nylon Insert 05310-374-02-00
11 1 Strainer Weldment 05700-031-50-07
12 1 Wash Overflow Weldment 05700-001-25-69
* 1 Support, Ball Stop Lift 05700-002-91-55
* 1 Ball Stop Lift 05700-003-07-50
13 1 Overflow Support Bracket 05700-001-27-55
14 1 O-Ring 05330-400-05-00
15 2 Clamp, Hose 1 5/16” to 2 1/4” 04730-719-01-37
16 1 Discharge Hose 05700-011-88-24
17 1 Nipple 05700-021-34-84
18 1 Pump Support Bracket Assembly 05700-002-22-73
19 1 Clamp, Hose 5 5/8" to 6" 04730-011-34-90
20 1 Connector, 1/2” 90° 05975-111-01-00
21 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
22 4 Lockwasher, 3/8” 05311-276-01-00
23 1 High Water Probe 06680-200-02-68
24 1 Clamp, 1/8" Nylon 05975-601-10-15
25 3 Locknut, 6-32 with Nylon Insert 05310-373-03-00
26 4 Lockwasher, 5/16", S/S, Split 05311-275-01-00
27 4 Nut, Hex, 5/16"-18, S/S 05310-275-01-00
28 4 Locknut, 10-24 with Nylon Insert 05310-373-01-00
29 1 Cover, Wash Heater 05700-031-47-57
30 1 Decal, Warning-Disconnect Power 09905-100-75-93
31 1 Decal, High Limit 09905-011-84-32
32 1 Wash Heater Gasket 05330-011-47-79
33 1 Thermostat Bracket 05700-011-81-64
34 1 Thermostat, Regulating with Imperial Brass Fitting 06401-003-18-22
35 1 Thermostat, High Limit 05930-011-49-43

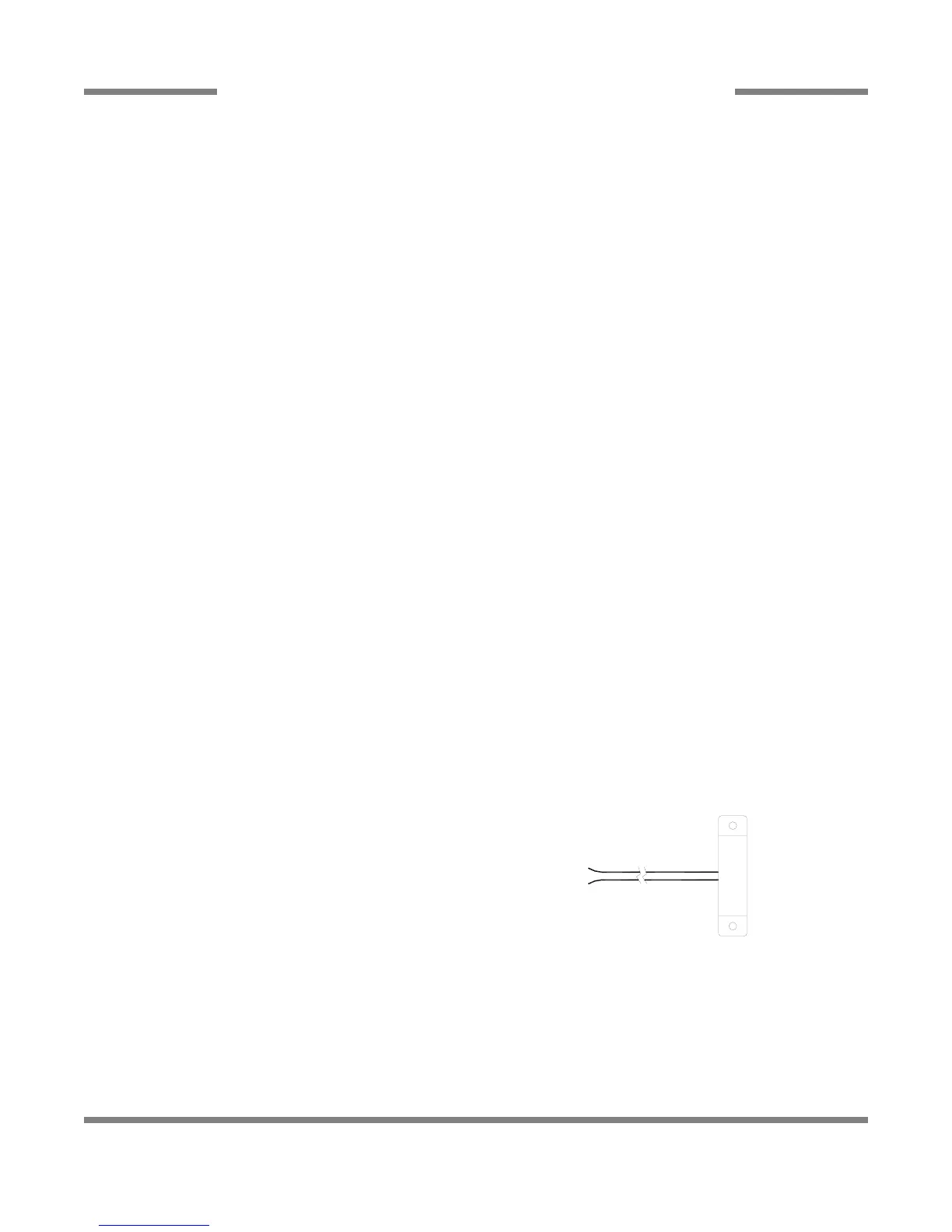

Magnetic Reed Switch
05930-003-05-84
Associated Hardware:
Lockwasher, #8 Internal Tooth 05311-272-03-00
Locknut, 1/4”-20 S/S Hex w/Nylon Insert 05310-374-01-00
Screw, 8-32 x 3/4” Round Head 05305-172-06-00
