GENSET AND BATTERY PACK
4271491-Second Edition 3-11
3

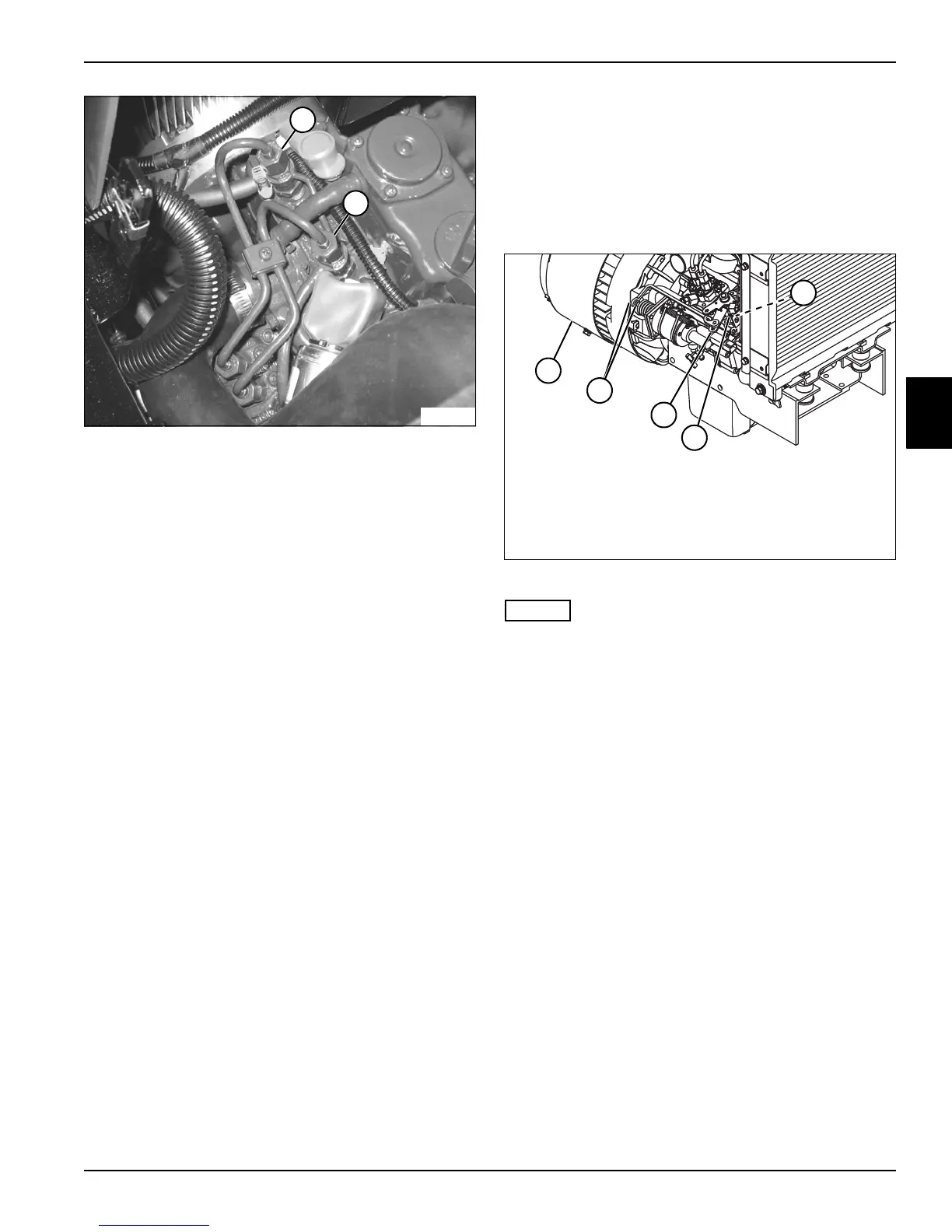

Figure 3-8
9. Loosen fuel injector line nut (3) and crank the engine.
10. When the bubbles disappear, tighten fuel injector line
nut (3).
11. Repeat steps 9 and 10 for fuel injector line nut (4).
12. When both fuel injector lines have been purged and
the engine is running, listen to the engine. If the
engine is misfiring, repeat steps 9 and 10 for both
fuel injector lines.
Throttle Actuator Adjustment (Diesel
Models)
See Figure 3-9.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
Figure 3-9
• Manually retract and extend the actuator shaft,
checking for smooth operation throughout the entire
range of motion. If the actuator shaft sticks or binds,
replace the actuator.
• Cycle the key switch while observing actuator
movement. Verify full stroke of the actuator. Replace
actuator as necessary.
3. With engine off and throttle actuator fully retracted,
adjust actuator hardware (2) as required so engine
throttle lever (3) is resting against the low idle stop
(4).
4. Manually pull throttle actuator linkage toward
generator (1). Engine throttle lever (3) should contact
full throttle stop (5).
