Jacobsen Eclipse 322 62800 - Alternator (Diesel Models)

3-16 4271491-Second Edition
GENSET AND BATTERY PACK
3
Alternator (Diesel Models)
Removal and Installation

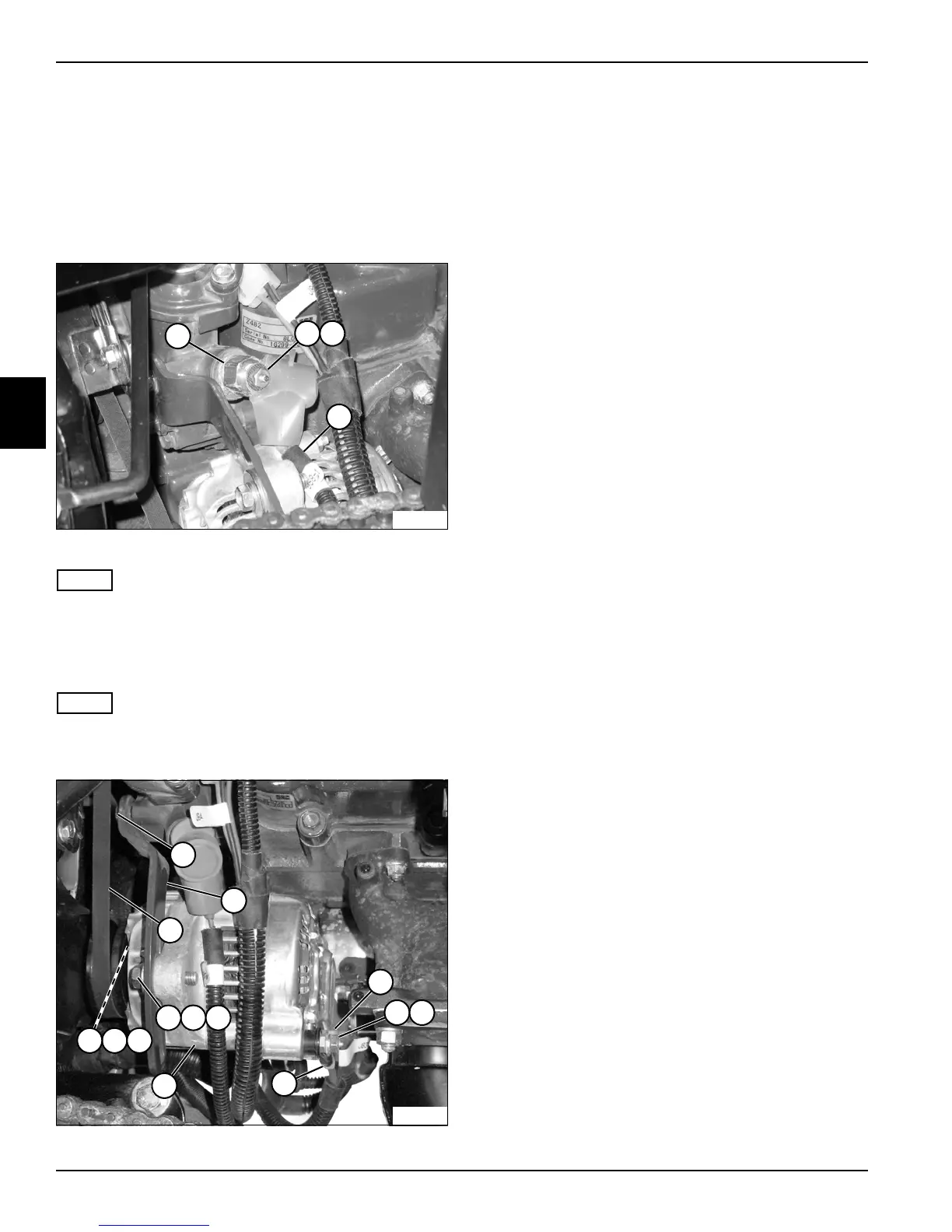

See Figures 3-17 and 3-18.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
Figure 3-17
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Remove nut (2), washer (3), and wire connector (4)
from the engine temperature switch (1).
NOTE
Move engine temperature switch wire harness aside to
provide clearance for alternator removal.
Figure 3-18
4. Disconnect wire connector (7).
5. Remove nut (8), lock washer (9), and wire connector
(10).
6. Loosen screws (12 and 15), push the alternator (11)
toward the engine, and disengage the fan belt (18)
from the alternator.
7. Support the alternator (11) with a suitable lifting
device.
8. Remove two screws (5).
9. Remove screw (15), lock washer (16), flat washer
(17), and bracket (6).
10. Remove screw (12), lock washer (13), and flat
washer (14).
11. Remove alternator.
Installation Note
Install alternator in the reverse order of removal.
TN2430
4
2
1
3
11
TN2444
16
8
10
9
15 17
7
6
18
1312 14
5
