Jacobsen Eclipse 322 62800 - Battery Charger

3-44 4271491-Second Edition
GENSET AND BATTERY PACK
3
Battery Charger
Removal and Installation

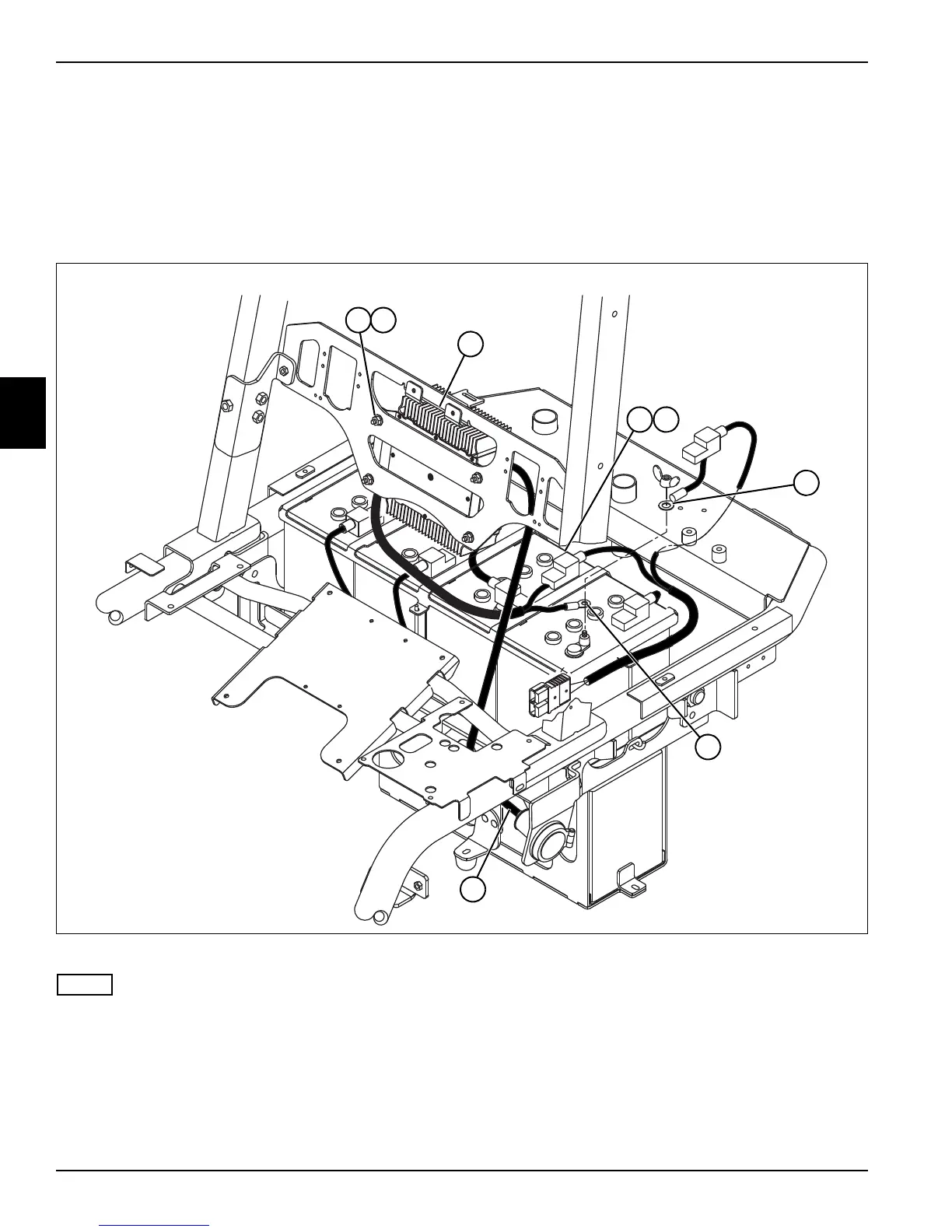

See Figure 3-73.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.
Figure 3-73
NOTE
Label all wires before disconnecting to ensure correct
installation.
