Jacobsen Eclipse 322 62800 - Engine Service (Diesel Models); Genset Fan (Diesel and Gasoline Models)

3-30 4271491-Second Edition
GENSET AND BATTERY PACK
3
Assembly Notes
•
• Apply Loctite
®
242 (Blue) to two screws (12) prior to
assembly.
• Apply Loctite
®
242 (Blue) to eight screws (14) prior to
assembly.
• Apply Loctite
®
242 (Blue) to four screws (16) prior to
assembly.
• Apply Loctite
®
242 (Blue) to screw (20) prior to
assembly.
• Apply Loctite
®
242 (Blue) to two screws (22) prior to
assembly.
• Apply Loctite
®
242 (Blue) to four throttle actuator
mounting screws (27) prior to assembly.
• Apply Loctite
®
242 (Blue) to two governor linkage
arm nuts (32) prior to assembly.
• Tighten governor linkage arm nuts (32) to 40 lb-in.
(4.5 N·m).
• Apply Loctite
®
242 (Blue) to three throttle actuator
mounting bracket screws (30 and 31) prior to
assembly.
• Apply Loctite
®
242 (Blue) to five coupling shaft
mounting screws (6) prior to assembly.
• Tighten five coupling shaft mounting screws (6) to
13.0 lb-ft (17.6 N·m).
• Apply Loctite
®
242 (Blue) to six generator flange
mounting screws (43) prior to assembly.
• Tighten six generator flange mounting screws (43) to
13.0 lb-ft (17.6 N·m).
• Apply Loctite
®
242 (Blue) to four generator assembly
mounting screws (34) prior to assembly.
• Tighten four generator assembly mounting screws
(34) to 13.0 lb-ft (17.6 N·m).
• Secure bell housing cover plate (8) to engine bell
housing using 3M
TM
VHB
TM
double-sided tape—trim
excess.
Engine Service (Diesel Models)
A separate engine manual, prepared by the engine
manufacturer, is supplied with this machine. Refer to the
engine manufacturer’s manual for all engine-related
service.
Proper attention to the engine manufacturer’s manual
directions will ensure maximum service life of the engine.
Genset Fan (Diesel and Gasoline
Models)
Removal and Installation
See Figure 3-46.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

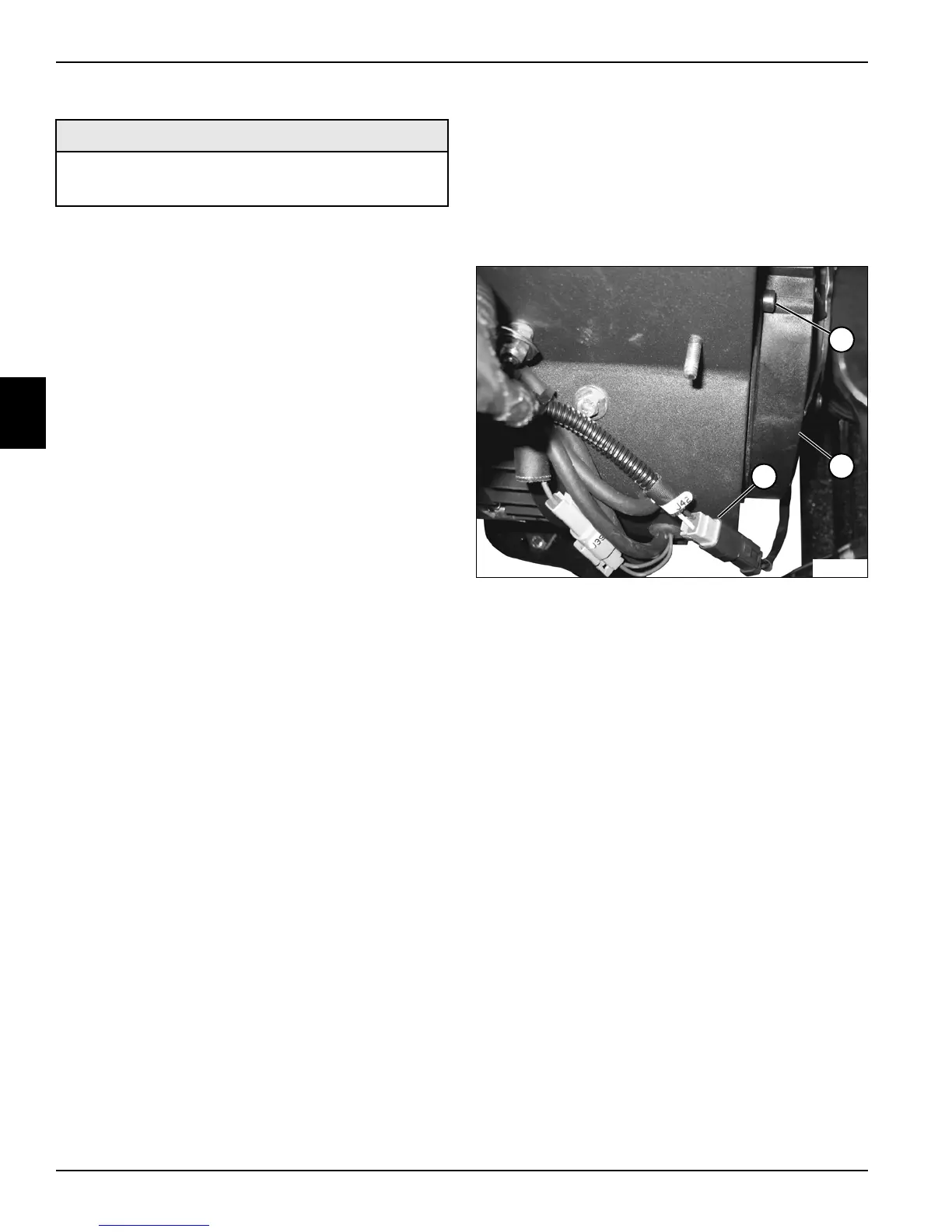

Figure 3-46
2. Tag and disconnect wire connector (3).
3. Remove four screws (1) and genset fan (2).
Installation Notes
• Install genset fan by reversing the order of removal.
• Apply dielectric grease (Jacobsen PN 365422) to
wire connector (3).
Required Materials
•Loctite
®
242 (Blue)
•3M
TM
VHB
TM
Double-Sided Tape
3
TN2813
1
2
