Fuel Tank (Gasoline Models)
Removal and Installation

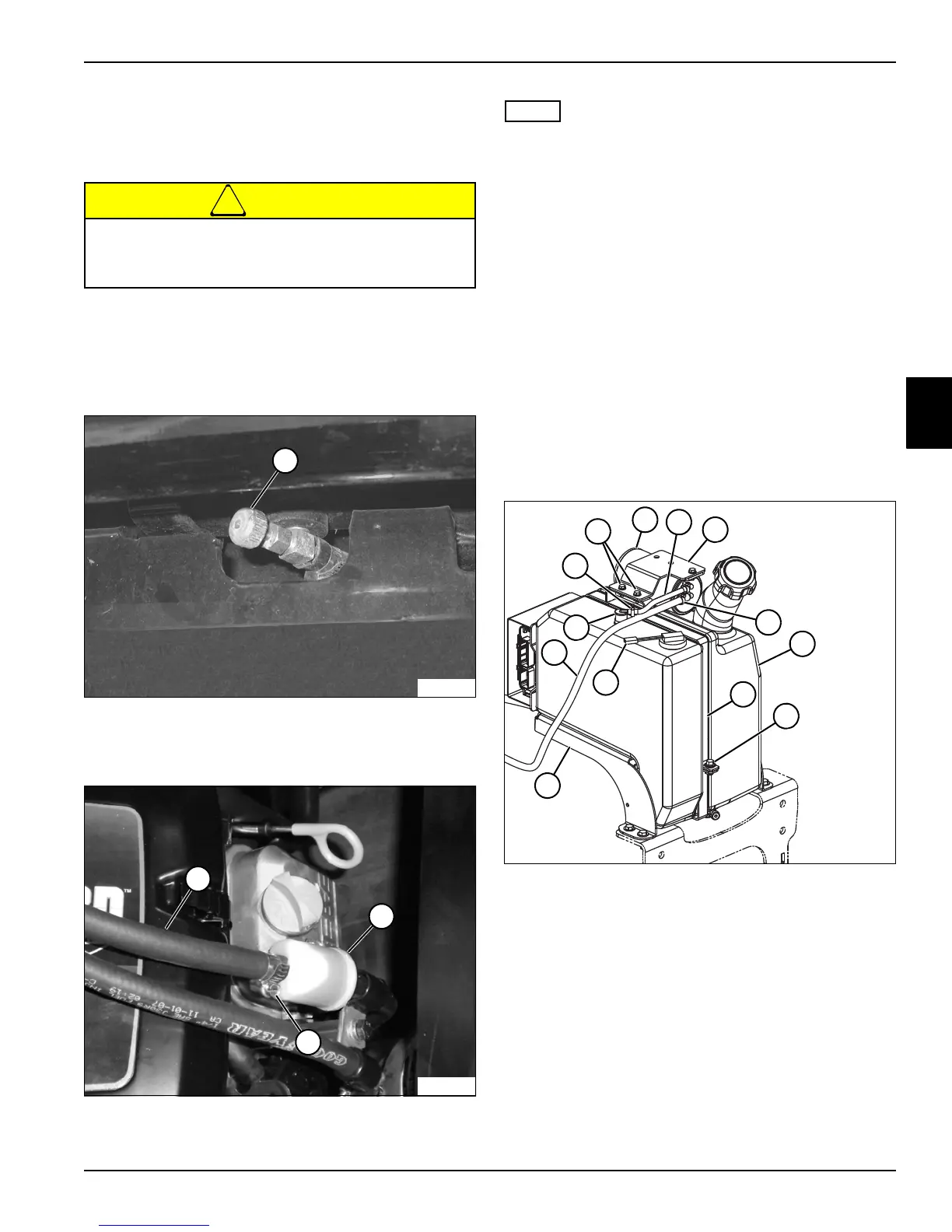

See Figures 3-51 through 3-53.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
Figure 3-51
4. Close fuel shutoff valve (1). (Turn clockwise until
valve bottoms lightly.)
Figure 3-52
Fuel tank capacity is 5.3 gal (20 L). Have suitable
container(s) available that can hold up to 6 gal (23 L) of
fuel.
5. Loosen hose clamp (4).
6. Tag and disconnect fuel hose (2) from fuel filter (3).
Cap fuel filter fitting to prevent leakage and
contamination.
7. Place fuel hose (2) into a suitable container at a level
lower than the bottom of the fuel tank. Loosen the
fuel cap to provide a vent for draining fuel.
8. Open the fuel shutoff valve (1) at the bottom of the
fuel tank.
9. When fuel tank is completely empty, tighten fuel cap.
10. Close fuel shutoff valve (1). (Turn clockwise until
valve bottoms lightly.)
11. Plug fuel hose (2) to prevent leakage and
contamination.
Figure 3-53
12. Tag and disconnect wire connector (15).
13. Loosen hose clamps (5 and 10).
14. Tag and disconnect tank-to-canister hose (8) from
the rollover valve (17). Cap fitting and plug hose to
prevent leakage and contamination.
15. Tag and disconnect canister-to-manifold hose (16)
from the canister (7). Cap fitting and plug hose to
prevent leakage and contamination.
16. Remove screws (6) and canister assembly (9) and
secure out of the way.
17. Remove screw (13).
Diesel fuel is highly flammable. Do not drain fuel
indoors. Heaters can ignite fuel vapors. Use
extreme caution when draining fuel.
