GENSET AND BATTERY PACK
4271491-Second Edition 3-21
3

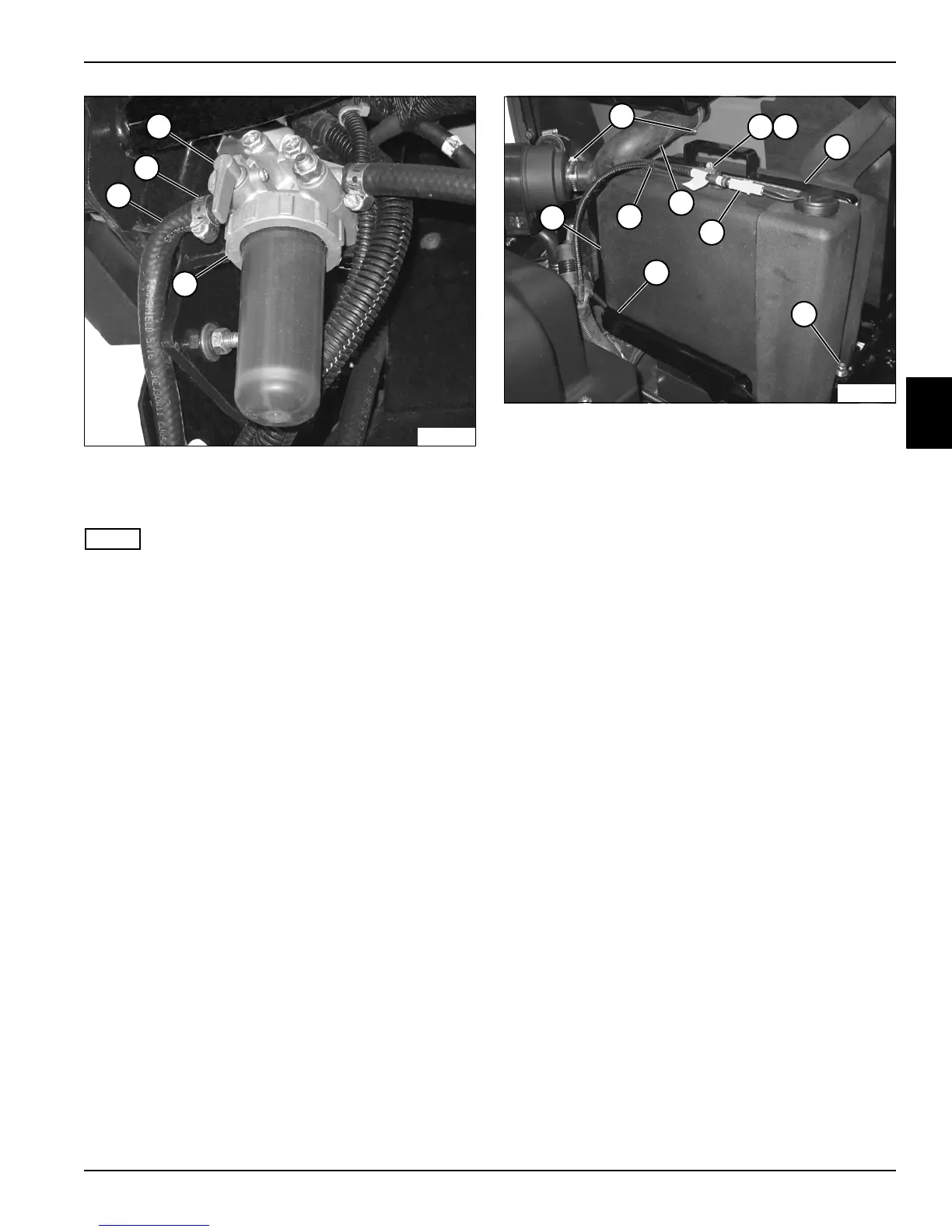

Figure 3-27
5. Turn the fuel filter shutoff lever (2) to the horizontal
(OFF) position.
Fuel tank capacity is 5.3 gal (20 L). Have suitable
container(s) available that can hold up to 6 gal (23 L) of
fuel.
6. Loosen hose clamp (3).
7. Tag and disconnect fuel hose (4) from fuel filter
assembly (5). Cap fitting to prevent leakage and
contamination.
8. Place fuel hose (4) into a suitable container at a level
lower than the bottom of the fuel tank. Loosen the
fuel cap to provide a vent for draining fuel.
9. Open the fuel shutoff valve at the bottom of the fuel
tank.
10. When fuel tank is completely empty, tighten fuel cap.
11. Close fuel shutoff valve (1). (Turn clockwise until
valve bottoms lightly.)
12. Plug fuel hose (4) to prevent leakage and
contamination.
Figure 3-28
13. Loosen hose clamps (6) and remove air intake hose
(15).
14. Cut cable tie (14).
15. Tag and disconnect wire connector (12).
16. Loosen hose clamp (7).
17. Tag and disconnect fuel hose (8). Cap fitting and
plug fuel hose to prevent leakage and contamination.
18. Remove screw (10).
19. Lift and disengage strap (9) from fuel tank bracket
(11) and secure out of the way.
20. Remove fuel tank (15) from machine.
21. Tag and disconnect fuel hose (4) from bottom of fuel
tank.
Installation Notes
• Install fuel tank by reversing the order of removal.
• Use only clean diesel fuel of the correct type (#2
diesel) from a clean, sealed container.
• If fuel was contaminated, install a new fuel filter at
this time. (See “Fuel Filter (Diesel Models)” on
page 3-22.)
• Purge the fuel system. (See “Purging the Fuel
System (Diesel Models)” on page 3-10.)
